Product Specifications
Prod Model: |
KQ-V8S |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Frequency Range: |
400-470MHz. |
Output Power: |
5W |
Channel: |
16 |
Certification: |
CE |
Style: |
Handheld |
Talk Range: |
8km Max |
Usage: |
Commercial |
Battery Type: |
Ni-MH Battery |
Type: |
Handheld |
Display: |
Without Display |
Working Frequency Range: |
UHF Segment |
Product Description

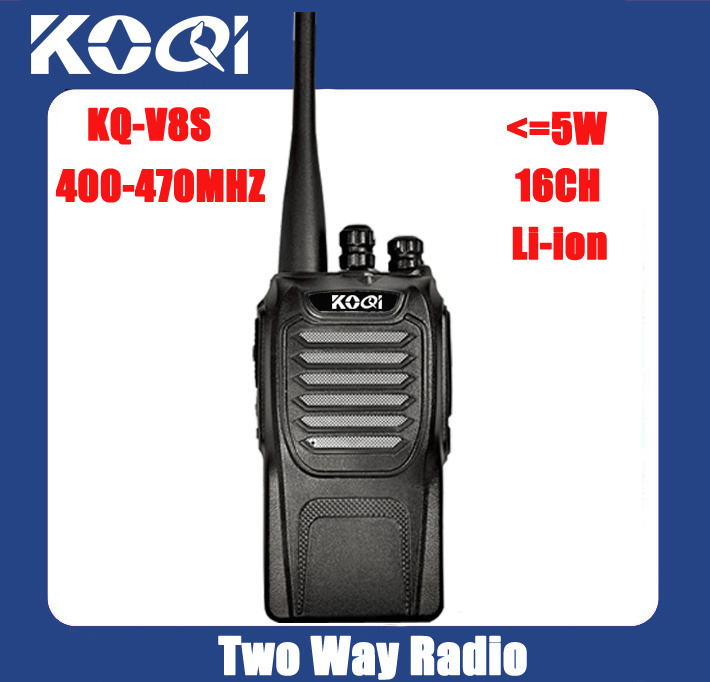

Walkie Talkie KQ-V8S UHF 400-470MHz
QUANZHOU KOQI LIMITED is specialized in wide range of electronic communication equipments, such as Wireless Restaurant Table Buzzer, Nurse Call System, Walkie Talkies, Vehicle Radio, Signal Repeater, PABX, PBX System, IP PBX and wireless network products. Some models are with CE, RoHS & FCC approval. Our main markets are South America, Europe, North America, Asia and the Middle East. Our products have won a good reputation in those markets. Also we can provide OEM and ODM service if necessary.
Specification
1. Frequency Range: 400-470MHz.
2. Output power: 5W
3. Channel: 16
4. Busy Channel Lockout
5. VOX function
6. CTCSS/DCS
7. Time-out Timer
8. Low battery warning
9. Battery Save
10. Long communication range
11. Long standby time
12. Scrambler
13.12.5K, 25K available
14. P. C programming
15. Talk Range: 3- 10km
16. Dimension: 171.47*58.2*33.4mm(exclude antenna)
Each set packaging including
1x Radio
1x charge
1x battery
1x antenna
1x belt clip
1x user's manual
Optional accessories
Speaker Microphone
Earphone
Radio case
Our factory offer OEM service. We look forwards to have an opportunity to cooperate with your esteemed company
Delivery Time: 3-5 days via DHL, EMS, UPS, TNT, FEDEX Express
Payment: T/T, Western union, Paypal
Warranty: 12 Months
Our Services
1. Reply your enquiry in 24 working hours.
2. Experienced staffs answer all your questions in professional and fluent English.
3. Customized design is available. OEM is welcomed.
4. Exclusive and unique solution can be provided to our customer by your our well-trained and professional engineers and staffs.
5. Special discount and protection of sales area provided to your distributor.
6. Do the best products and design the personalized items for our customers
If you are interested in any of our Walkie Talkies, please feel free to contact me. I will reply to you in 24 hours, thanks.
General |
Frequency coverage |
UHF 400-470MHz. |
Channel Capacity |
16 |
Channel Spacing |
12.5/25KHz |
Operated Voltage |
7.4V |
Battery Capacity |
1500Mah Li-ion |
Battery Life(5-5-90 duty cycle) |
About 10 hours |
Working Way |
Simplex in same channel Simplex in different channel |
Frequency Stability |
+-2.5ppm |
Operated Temperature |
-20°C to +60°C |
Antenna Impedance |
50Ω |
Dimensions |
128.6mm×60.6mm×35.1mm |
Transmitter |
RF output power |
5W |
Modulation |
F3E |
Spurious Emission |
<-36dB |
FM Noise |
≤-45dB(W) ≤-42dB(N) |
Audio Distortion |
≤5% |
Transmitting Current |
≤1.2A |
Receiver |
Sensitivity(12Db SINAD) |
≤0.20μV |
Sensitivity |
60dB/55dB |
Intermodulation |
≥65dB |
Adjacent Channel Selectivity |
≥60dB |
Spurious Response |
≥60dB |
FM Noise |
45dB/42dB |
Audio Distortion |
≤5% |
