High speed automatic two side seal kraft paper Bubble Mailer making machine
Automatic Ruian Kraft paper bubble film envelope forming machine low price
Product Description

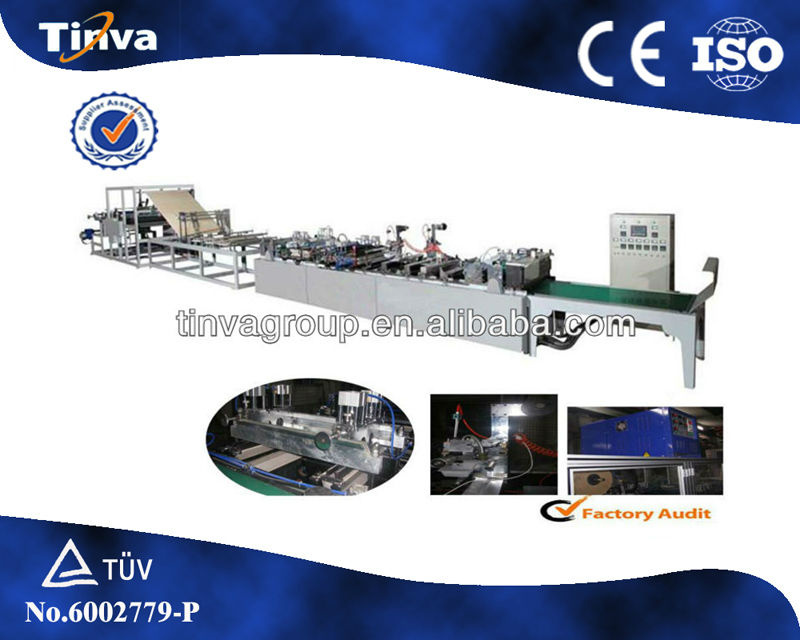

This machine is special designed to make the bubble mailer from craft paper with bubble linings.
It combines two layers Kraft paper and two layers PE bubble film together by hot melt glue.
Be sealed under the press of the vertical heat-seal bar and the horizontal heat-seal bar, then be cooled under cooling bar, at last be cut at the fixed length to be the finished mail bag
This machine adopts the advanced PLC control system, servo motor fix length, touch screen control, easy to operate, stable performance, the mailer be made with smooth and good seal, it is your ideal choice
Main technical parameters:
| Model | DISQ-700A |
| Suitable material | kraft paper 70 -110gsm (coated or non-coated)+PE bubble film |
| Max design speed | 80 pcs/min (can make two at one cut when small size) |
| Max reel width | 700mm |
| Max Bag width | 500mm |
| Max Bag length | 680mm |
| Compressed air | 0.8Mpa |
| Power supply | AC380v 50HZ 24KW |
| weight | 3200KG |
| Overall dimension(L*W*H) | 15640*1560* 2630mm
|
The company is located on Ruian city belonged to South Zhejiang, which has convenient traffic and long history of machinery manufacture. We have our own factory RUIAN RUIFENG PACKING MACHINE Co., Ltd since 1996, As a professional manufacturer of plastic bag making machines, we can supply various plastic bag making machine such as flat bag making machine, vest bag making machine, three sealed zipper bag making machine, bubble film bag making machine, etc. And we also supply the film blowing machine, film laminating machine, printing machine and other relative plastic machine.
