Lab Rubber Kneader Machine

Name: Lab Rubber Kneader Machine
Brand: china-manufacturer-directory.com
SKU: 688176512
Availability: InStock
Rating: 4.5 (100 reviews)

Price:	US $ 27800-27900/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

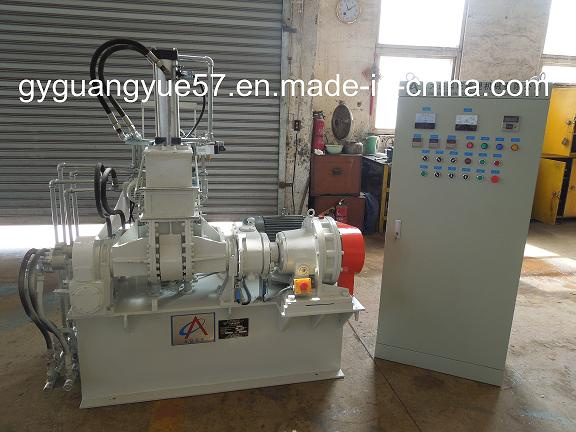

Lab Rubber kneader machine

1. Structure

The transmission structure all kinds, which mainly includes type transmission structure, closed the transmission structure and thermodynamic transmission structure.

2. Uses

The machine is mainly used for plasticating and mixing of natural rubber, synthetic rubber, reclaimed rubber and plastics, and used in the mixing of various low glue degree materials.

3. Feature

(1. ) with completely sealed condition, materials are mixed or plasticized under certain pressure, controllable temperature, which makes high production efficiency and obtains excellent stable quality.

(2. ) Spiral angle and over lapping length of the blades of the rotors are of reasonable design and make the materials to be dispersed uniformly.

(3. ) Surface where is contracted with the machine are all plated with hard chromium and polished, which is corrosion-resistant and wear-resistant.

(4. ) Jacket construction is adopted in parts that surfaces contact with materials to achieve excellent water-cooling or steam-heating effect and fit in with the needs of plastics and rubber processing technology.

(5. ) Feeding from back door on the frame(or separate top door) is convenient ofr continuous process operation in production line. The mixing chamber is able to turn forward by 140 around th front rotors to discharge and is easy for changing pigments and cleaning the chamber.

(6. ) Programmable logic controller (PLC) is adopted in the electric-control system, which has reliable control function and alarm function, and interlock safety-protection function and it is provided with serial interface of net.

Mobile phone: 0086 15966802787

Model Item		X(S)N-1.5	X(S)N-3	X(S)N-10x32	X(S)N-20x32	X(S)N-35x32	X(S)N-55x32	X(S)N-75x32	X(S)N-110x32	X(S)N-150x32	X(S)N-200x32
Total volume ( L )		4	8	25	45	75	125	180	250	325	440
Working volume ( L )		1.5	3	10	20	35	55	75	110	150	200
Motor power ( KW )		4	7.5	18.5	37	55	75	110	185	220	280
Tilting		Worm gear	Worm gear	Worm gear	Worm gear	Worm gear	Worm gear	Worm gear/ Hydraulic	Worm gear/ Hydraulic	Worm gear/ Hydraulic	HHydraulic
Sealing		Spring type	Spring type	Spring type	Spring type	Spring type	Spring type	Spring type/ Hydraulic	Spring type/ Hydraulic	Spring type/ Hydraulic	Spring type/ Hydraulic
Rotor speed (F/R) (r/min )		8.8-88/ 6.9/69	25-100/ 18-72	32/25	32/26	32/26	32/26	32/26	30/24.5	30/24.5	30/24.5
Dimension (mm )	L	1550	1600	2300	2500	3150	3370	3770	4060	4200	4520
	W	750	950	1360	1750	2020	1950	2570	2750	3300	3400
	H	1825	1880	2120	2450	2960	3020	3160	3590	3900	4215
Total weight ( kg )		750	1050	3000	4500	7200	8200	11600	15600	19500	22500

Prod Model:	X(S)N-35 X(S)N-55 X(S)N-75
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	General Rubber Machinery
Type Of General Rubber Machinery:	Mixing Roll
Type Of Tire Machinery:	Rubber Regeneration Machinery
Rator:	Plated with Chrome and Polished
Feeding Type:	Front Side and Back Side
High Capacity:	Processing Easily and Low Noise
History:	More Than 30 Years with Professional Technology

The company owns powerful technical strength, advanced technics, the best design and strict quality guarantee system, which owns a high repution in China rubber machinery industry.

The main products are plate vulcanizing press, open rubber mixing mill, banbury intensive kneader, extruder, rubber and reclaimed rubber machinery, within the (outside) tires complete set of machinery.The products have been sold to more than 20 provinces and cities in China and have been exported to more than 10 countries and areas.All of the products are designed visually by three-dimension CAD design, quickly built module, limited element analysis, analogue action and interfering inspection.The combination of three-dimension CAD system and internet guarantees the synchronization with internatinal advanced technology.The combination of three-dimension CAD and CNC numeral process center realizes the transit from traditional manufacture to modern three-dimension manufacture.At the same time, the company keeps good contact with several universities and research institutes.

The company takes"To live by quality, To develop by reputation, To innovate by science and technology, To keep improving all the time"as managing ideas, and insists on the principle of "Quality is the first, Reputation is the?First, Client is the first" that will provide you the best service.
