Product Specifications
| Prod Model: |
GP-3120TN |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Barcode Printer |
| Style: |
Direct Thermal Line |
| Interface Type: |
USB+Serial |
| Type: |
Direct Thermal Line |
| Max. Paper Size: |
Terminal |
Product Description

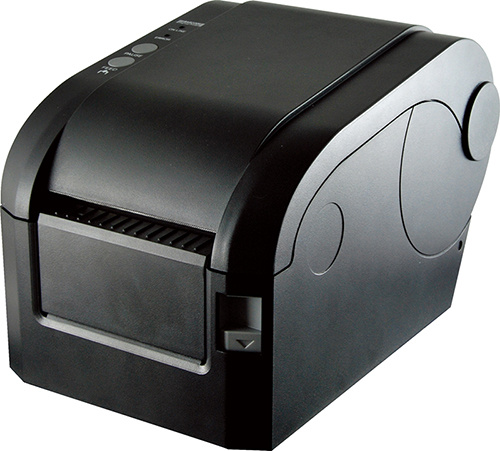

Label Printer
GP-3120TN
-Support the two-dimensional bar code printing function (QRCODE)
-100MB Ethernet, connection to print more quickly, to avoid losing
-2M FLASH and DRAM memory
-3~5inch/s ultra high print speed
-Label paper auto position
-Support Chinese and Korean Characte
-Support peel-off and tear-off modes
-Compatible with various label softwares
-Support BMP and PCX images download
-Support parallel port, serial+USB port, Ethernet port
-Support printing media width from 16mm to 80mm
-Support parallel port, serial+USB port, Ethernet port
-Auto temperature control for durable printing
APPLICATIONS
Our company has an excellent reputation for high-quality products;durability and service. our products are designed and manufactured in china.
we are the 15years manufacture for receipt printers,bar code printers,kindly reach to our sales team for more details of product details.
|
Printing |
Print method |
Direct thermal line |
|
Print width |
20/60mm |
|
Dot density |
512dot/line or 576 dot/line |
|
Print speed |
3~5inch/s |
|
Interface |
Serial/USB |
|
Paper diameter |
120mm |
|
Line space |
3.75mm(can be adjustive) |
|
Character Size |
ANK Font Font A: 12×24dots Font B: 9×17dotsSimplified/Traditional Chinese Character: 24×24dots |
|
Barcode |
Code page |
95 alphanumeric ,48 international, 128 x 11 graphs PC437/Katakana/PC850/PC860(Portuguese)/ PC863/ PC865/ West Europe/Greek / Hebrew/East Europe/Iran/WPC1252(ISO 8859/2/7/15) /PC866/PC852/PC858/IranII/PC851/PC853/Page 255 /Latvian/Arabic/PT151,1251/PC737/WPC/1257/Thai Vietnam/PC862/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai)/(PC3847 ABNT)/(PC3848 ABICOMP) and more |
|
Barcode mode |
UPC-A/UPC-E/ JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/CODABAR/CODE93/CODE128/ GS1/QRCODE/PDF417 |
|
Fonts |
GB2312 |
|
Buffer |
Data |
2M bytes |
|
NV Flash |
2M bytes |
|
Power |
Cashdrawer out |
DC 24V/1A |
|
Power supply |
AC 110V/220V , 50 ~ 60Hz , DC 24V/2A |
|
Physical properties |
Weight |
1.50kg |
|
Dimension |
115×220×175mm |
|
Environment |
Work environment |
Temperature:0 ~ 45 º C , Humidity:10 ~ 80% |
|
Storage environment |
Temperature:-10 ~ 60 º C , Humidity:10 ~ 90% |
|
Reliablity |
Mechanism |
>150km |
|
Autocutter |
No cutter |
