Product Specifications
| Prod Model: |
DC-0506 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Thermostatic Oil Bath |
Product Description
Detailed Product Description
1.cooling fast;
2.temperature high precision;
3.overheating protection
4.Refrigerating system overcurrent
Product Description:

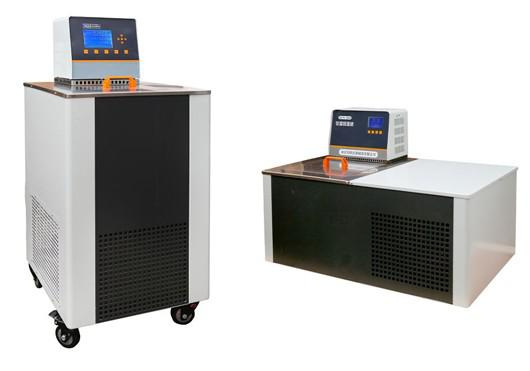

Low temperature thermostat is kind of high precision constant temperature source with self-refrigeration and self-heating system, also has the similar function as a small size chiller. Widely used in petroleum, chemical industry, metallurgy, medicine, biochemistry, physical property testing and chemical analysis, and also well used in colleges and universities, factory's lab, metrological service bureau.
High precise low temperature constant circle bath Technical Parameters:
model Temperature(ºC) Temp.Accuracy ( ºC) Sink Dimension(mm)
(L*W*H) Capacity(L) Sink Front Opening
(mm) Power(W) Circulating Pump Flow (L/min) c
(USD)
DC--0506 -5~100 ±0.05 275×195×120 6 180×140 600 13
DC--0510 -5~100 ±0.05 275×195×180 10 180×140 900 13
DC--0515 -5~100 ±0.05 300×250×200 15 235×160 1500 13
DC--0520 -5~100 ±0.05 300×250×270 20 235×160 2000 13
DC--0530 -5~100 ±0.05 440×325×210 30 310×280 2700 13
DC--0550 -5~100 ±0.05 500×340×300 50 350×300 4000 13
DC--05100 -5~100 ±0.05 625×400×400 100 400×380 7000 13
DC--1006 -10~100 ±0.05 275×195×120 6 180×140 800 13
DC--1010 -10~100 ±0.05 275×195×180 10 180×140 1200 13
DC--1015 -10~100 ±0.05 300×250×200 15 235×160 1800 13
DC--1020 -10~100 ±0.05 300×250×270 20 235×160 2300 13
DC--1030 -10~100 ±0.05 440×325×210 30 310×280 3000 13
DC--1050 -10~100 ±0.05 500×340×300 50 350×300 4300 13
DC--10100 -10~100 ±0.05 625×400×400 100 480×380 7500 13
DC--2006 -20~100 ±0.05 275×195×120 6 180×140 1200 13
DC--2010 -20~100 ±0.05 275×195×180 10 180×140 1600 13
DC--2015 -20~100 ±0.05 300×250×200 15 235×160 2200 13
DC--2020 -20~100 ±0.05 300×250×270 20 235×160 2700 13
DC--2030 -20~100 ±0.05 440×325×210 30 310×280 3400 13
DC--2050 -20~100 ±0.05 500×340×300 50 350×300 4700 13
DC--20100 -20~100 ±0.05 625×400×400 100 480×380 7900 13
DC--3006 -30~100 ±0.05 275×195×120 6 180×140 1700 13
DC--3010 -30~100 ±0.05 275×195×180 10 180×140 2100 13
DC--3015 -30~100 ±0.05 300×250×200 15 235×160 2700 13
DC--3020 -30~100 ±0.05 300×250×270 20 235×160 3200 13
DC--3030 -30~100 ±0.05 440×325×210 30 310×280 3900 13
DC--3050 -30~100 ±0.05 500×340×300 50 350×300 5200 13
DC--30100 -30~100 ±0.05 625×400×400 100 480×380 8400 13
DC--4006 -40~100 ±0.05 275×195×120 6 180×140 2300 13
DC--4010 -40~100 ±0.05 275×195×180 10 180×140 2900 13
DC--4015 -40~100 ±0.05 300×250×200 15 235×160 3400 13
DC--4020 -40~100 ±0.05 300×250×270 20 235×160 3900 13
DC--4030 -40~100 ±0.05 440×325×210 30 310×280 4600 13
DC--4050 -40~100 ±0.05 500×340×300 50 350×300 5800 13
DC--40100 -40~100 ±0.05 625×400×400 100 480×380 9000 13
DC--5006 -50~100 ±0.05 275×195×120 6 180×140 2700 13
DC--5010 -50~100 ±0.05 275×195×180 10 180×140 3400 13
DC--5015 -50~100 ±0.05 300×250×200 15 235×160 3900 13
DC--5020 -50~100 ±0.05 300×250×270 20 235×160 4500 13
DC--5030 -50~100 ±0.05 440×325×210 30 310×280 5200 13
DC--5050 -50~100 ±0.05 500×340×300 50 350×300 6400 13
DC--50100 -50~100 ±0.05 625×400×400 100 480×380 9800 13
DC--6006 -60~100 ±0.05 275×195×120 6 180×140 3500 13
DC--6010 -60~100 ±0.05 275×195×180 10 180×140 4200 13
DC--6015 -60~100 ±0.05 300×250×200 15 235×160 4700 13
DC--6020 -60~100 ±0.05 300×250×270 20 235×160 5300 13
DC--6030 -60~100 ±0.05 440×325×210 30 310×280 6000 13
DC--6050 -60~100 ±0.05 500×340×300 50 350×300 7200 13
DC--60100 -60~100 ±0.05 625×400×400 100 480×380 10600 13
Key Features:
1. Air-cooled closed refrigeration compressor, cooling fast;
2. Microcomputer intelligent control, temperature high precision;
3. Digital definition reaches 0.1°C or 0.01°C,with function of revise temperature departure;
4. Overheating protection, automatic cut power source and alert;
5. Refrigerating system overcurrent or overheating automatic protection.
