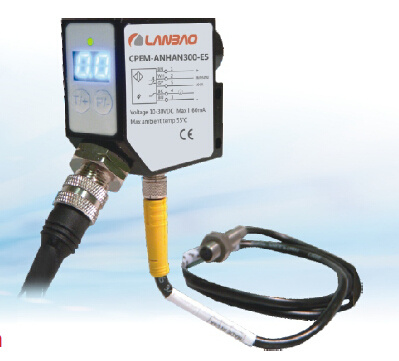

Lanbao Opacity sensor — — — — CPEM-ANHAN300-E5
Feature
------------------------------------------------------------------------
Small spot size
High sensitivity and high resolution
Fast response
Display range 00-99
Adjustable gain
Analog output
PNP/NPN discrete output
Accessories
------------------------------------------------------------------------
Mounting Bracket
Laser position sensor
Equipped with cable
Product application
------------------------------------------------------------------------
Pharmaceutical containers
Food packaging
Personal care products
HDPE containers
LDPE containers
Composite films
Blow molded products
Paper products
Advantage of Lanbao:
------------------------------------------------------------------------
1. Operating for 17 years in Sensor market. Lanbao offers customers high quality and reliable products with most up-to-date technology and top design.
2.2014, Lanbao are awarded the honor by goven: "National key environmental protection practical technology and demonstration projects".
3. Lanbao took part in all kinds of exhibitions all over the world.
For example: 11/2014, China International Industry Fair.
11/2014, SPS/ IPC/ DRIVES Electric Automation.
Lanbao are known by customers and users.
4. Lanbao provides customers conventional products.
Besides the current products, we also can supply made to measure products to your sample.
5. All of Lanbao sensors through the CE certification.
6. Our products are extremely popular in China, overseas markets and all over the world!
7. Last but not least, all the products reach standard concerning product quality and environmental protection.
Note:
------------------------------------------------------------------------
Customize for cable length, housing material and shape.
Any query, just feel free to let us know.
|
Specification |
|
|
Model |
CPEM-ANHAN300-E5 |
|
Normal operating mode |
Displays relative light source intensity |
|
Calibration |
Set detection level |
|
Threshold |
Set LED, Low, Mid, Hi |
|
Hysteresis level |
Set undetect level 1^9 steps below threshold |
|
Discrete output |
Set normally open or normally closed |
|
Output pulse stretch |
Set minimum output period 10^90mS |
|
Security |
Lock/unlock pushbutton controls |
|
Teach mode |
Auto-set detection threshold |
|
|
|
Light source |
LED |
|
Light source indensity |
3 level |
|
Sensing distance |
up to 300mm |
|
Response time |
<150us |
|
Switching Frequency |
6kHz |
|
Relative intensity display range |
00-99 |
|
Sensitivity |
Adjustable |
|
Signal level |
7 segment digits * 2 |
|
Detection threshold |
7 segment digits * 2 |
|
Digital Output |
Auto-detect PNP/ NPN |
|
Output Function |
NO/NC selectable |
|
Analog Output |
0-5V |
|
Power indicator |
Green LED |
|
Detect indicator |
Red LED |
|
Programming indicator |
Yellow LED |
|
Data retention |
EEPROM non_volatile memory |
|
Supply Voltage |
24VDC |
|
Circuit protection |
Reverse polarity, short-circuit protection, overload protection |
|
Operating temperature |
-20~55ºC |
|
Storage temperature |
-20~70ºC |
|
Housing material |
Metal alloy |
|
Certification |
CE |
|
