Large capacity ultrasonic cleaning machine for auto gear box, cylinder, engine block
How ultrasonic cleaner works?
The main washing principal of ultrasonic cleaner is to transfer sound energy into mechanical vibration. Its ultrasound radiates the cleaning solution through cleaning the cell wall. The ultrasound which is radiated makes the micro-bubble in the liquid keep vibrating under the effect of sound wave. When sound pressure or sound intensity reaches a certain degree, bubble would quickly expand and suddenly close. During this process, the instant of closing bubble would create shock wave, and produce pressure of 1012-1013PA and high temperature around bubbles. The great pressure created by ultrasonic cavitation would depart non-soluble contaminants and differentiate them into liquid. Steam type cavitation has impact on dirt directly and repeatedly.
Remark:
1. Tank size and other functions can be custom made
2. Customer logo is acceptable
3. Packing by wooden case
4. Lead time is negotiable according to qty. And custom made requirements
Please feel free to talk with us! So best size could be designed for you.
Or choose the size fits you from the following sheet.
Wish to serve for you.
Customized ultrasonic cleaner JTS series & optional capacity
We are able to supply ultrasonic cleaning tanks of any size to suit any application. No matter how big your components are, Ultrawave can specify, design and manufacture ultrasonic cleaning systems to suit your complex needs.
Advantages
Saves high labour costs.
Increases plant productivity and capacity.
Removes any kind of dirt, even below 20 micron.
Extreme cleaning homogeniety.
Shorter cleaning cycles than other systems.
Easy automation of in/out-let parts flow.
Customized design for any kind of material or form.
Reduces consumption of detergents and other chemicals.
Minimizes non-conformity of series for quality reasons.
Fully automated dosing of chemicals and maximum yearly average working times.
Please inform your car wheel/car tyre thickness & diameter,
Or choose the tank size fits your car wheel/car tyre below:
Model: Skymen™ |
JTS-1012 |
JTS-1018 |
JTS-1024 |
JTS-1030 |
JTS-1036 |

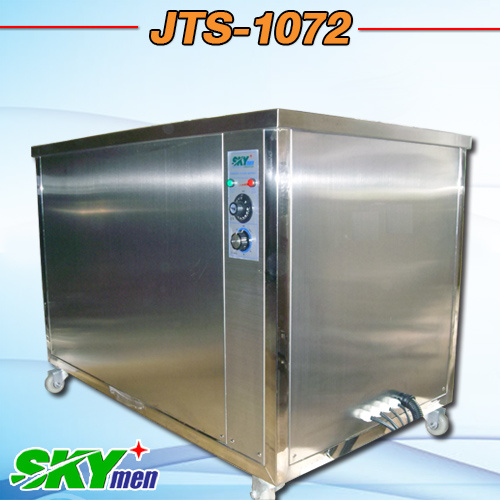

JTS-1072 |
|
TANK'S WORKING DIMENSION (mm) |
L1 |
355 |
406 |
500 |
500 |
500 |
1000 |
|
W1 |
305 |
305 |
355 |
406 |
460 |
600 |
H1 |
355 |
460 |
500 |
500 |
550 |
600 |
OVERALL DIMENSION (mm) |
L2 |
535 |
586 |
680 |
710 |
710 |
1210 |
W2 |
485 |
485 |
535 |
586 |
640 |
780 |
H2 |
750 |
680 |
720 |
720 |
770 |
720 |
TANK'S TOTAL CAPACITY |
38L |
56L |
88L |
101L |
126L |
360L |
TANK'S MATERIAL |
SUS304/SUS316L |
IN-TANK SURFACE FINISHING |
Hard-Cr Plating Treatment ( 20+ microns ) |
HOUSING'S MATERIAL |
SUS 304/SUS316L |
ULTRASONIC FREQUENCY* |
28kHz / 40kHz |
ULTRASONIC TRANSDUCER |
12 |
18 |
24 |
30 |
36 |
72 |
ULTRASONIC OUTPUT POWER (MAX.) |
600W |
900W |
1200W |
1500W |
1800W |
3600W |
ELECTRONIC GENERATOR |
KG600 |
KG900 |
KG1200 |
KG1500 |
KG1800 |
KG3600 |
Build-in |
Separate |
HEATER'S (HOT PLATE) POWER |
1.5kW |
3kW |
4.5kW |
9KW |
CLEANING TANK'S POWER REQUIREMENT |
AC 220V / 240V, 1, 15AMP |
AC 220V / 240V, 1, 25AMP |
GENERATOR'S POWER REQUIREMENT |
---- |
AC 220V / 240V, 1, 13AMP |
NEW PRODUCT
68kHz / 80kHz / 120kHz are also available |
