Product Specifications
| Prod Model: |
NBDJS188 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Nbdjs188 |
| Shape: |
500mm |
| Life: |
100, 0000hours |
| Emitting Color: |
Red/Yellow/Green |
| Certification: |
CE, RoHS, SGS, ISO9001: 2008 |
| Total Harmonic Distortion: |
< 20% |
| Operatingtemperature: |
-20 Centigrade to 70centigrade |
| Operating Voltage Range: |
12VDC, 110VAC, 220VAC |
| Warranty: |
2 Years |
| Housing Material: |
Cold Rolled Steel |
| Type: |
Vehicle Traffic Light |
| Application: |
Road |
Product Description

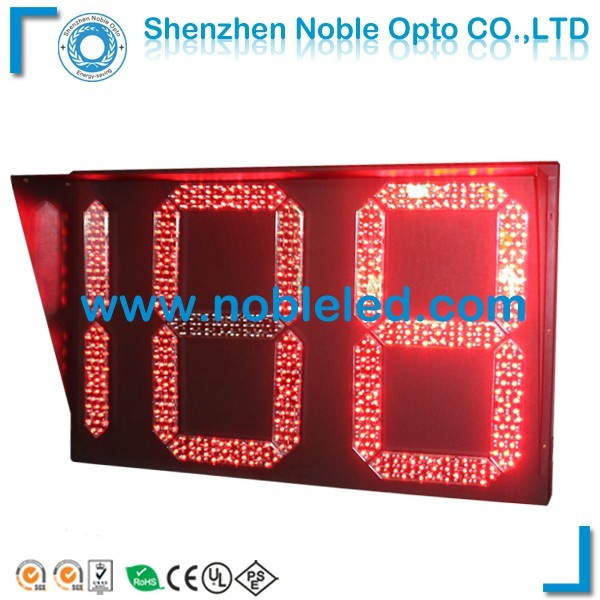

Large digital led traffic light countdown timer
Model No.: NBDJD188
1. Housing material: Cold rolled steel sheet
2. Warranty: 2years
3. Lightning protection: 40KV
4. Water and dust resistance: IP54
5. Operating temperature range(optional): -20centigrade to 70centigrade
6. Operating voltage range: DC 10-30V; AV 85-265V
7. Installation way: Horizontal(tall pole), verticla(short pole)
8. Description: Fixed Time Mode: Displays countdown to signal change manual Mode: Displays"01"
9. Controll signal: Controlled by signal from traffic signal system
Fetures for Countdown Traffic Light:
A. This signal is specially designed to increse the safety of car driver, by showing number of seconds left to change signals from red light to green light to yellow signal or from green signal to yellow signal to red signal to assist drivers to determine if he should continue driving or should slow down to wait for light changed.
B. When Green Vehicle Signal is on, the Green Digits will be shown with count down digits, to show the number of seconds left before the Green Light is changed to be Yellow.
C. When Yellow Vehicle Signal is on, the Yellow Digits will be shown with count down digits, to show the number of seconds left before the Yellow Light is changed to be Red.
D. When Red Vehicle Signal is on, the Red Digits will be shown with count down digits, to show the number of seconds the car driver needs to wait before the Red Light is changed into Green.
E. The maximum number of two digits is 199 seconds. If the countdown time is set exceeding 199 seconds, the signal will not show the digit until it counts 199 seconds.
|
Characteristics |
|
|
Color |
Size |
Model Number |
Profile |
Voltage
|
LEDs |
Typical Wattage at 25º C |
Luminance
(cd/sq. m) |
Typical Dominant Wavelength
(nm) |
|
Red |
199 |
NBDJS188-R |
square |
110/220VAC |
560s |
< 28W |
> 4000 |
625 |
|
Gather to pack: |
|
Model |
housing material |
Dim. of Outer Carton |
Qty/CTN |
G. W. /CTN |
N. W. /CTN |
packing |
|
NBDJS188-R |
Cold steel |
1050*690*230mm |
1PC |
34KGS |
31KGS |
carton |
