Product Specifications
| Prod Model: |
c61160 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Swing Diameter Over Bed: |
1600mm |
| Max Swing Diameter Over Carriage: |
1250mm |
| Max Length Of Workpiece: |
3-20m |
| Max Weight Of Workpiece: |
32t |
| Type: |
Horizontal Lathe |
| Tool Holder: |
Double-tool Holder CNC Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Manual |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
| Processing Accessory: |
Normal Lathe Machine |
Product Description

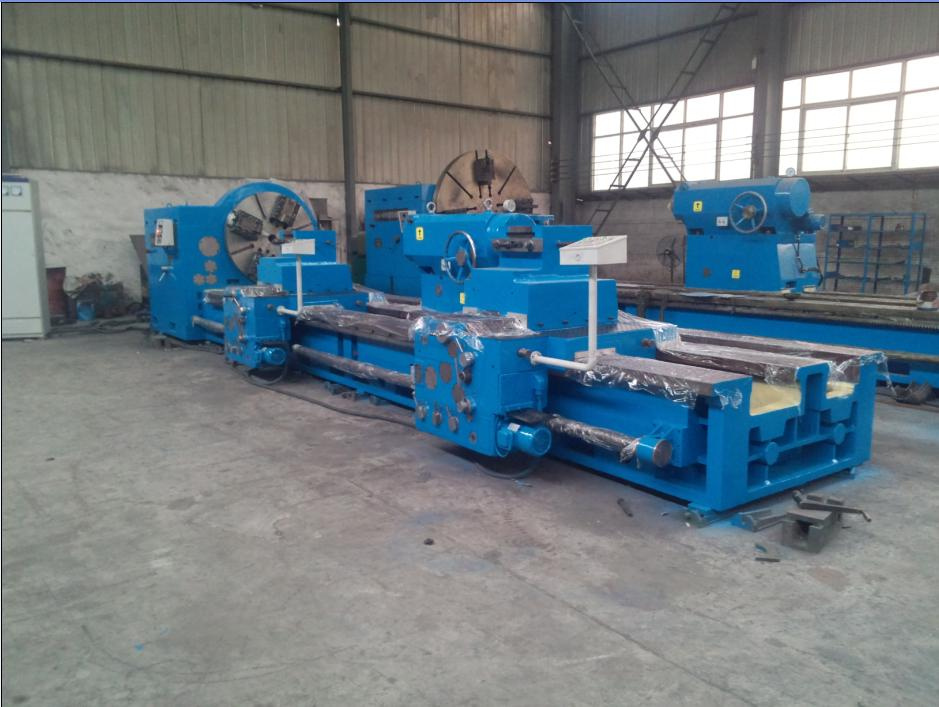

Horizontal Lathe C61160 Main Feature:
Low price horizontal lathe machine C61200 lathe bed adopts the integral casting structure, internal ribs are rational layout. Guideways use super audio quenching process, the hardness of the surface more than 50 degree. The spindle with high rigidity and high precision.
Headstock takes symmetrical structure to make thermal deformation be even, avoiding the spindle center generates excursion.
Horizontal Lathe C61160 Usable range:
Heavy duty machinery parts, such as big shaft, supporting roller, fan shaft, nuclear pressure vessel, mill roll, turbine fitting, mine railway and other heavy duty manufacturing industries.
Export Markets:
North America, South America, Eastern Europe, Africa, Mid East, Southeast Asia, Western Europe.
detail technical information
MODEL |
Unit |
C61160/32T |
Max.swing dia over bed |
mm |
1600 |
Max. weight of workpiece |
ton |
32 |
Max.workpiece length |
mm |
3000-18000(according to the customers' needs) |
Swing over carriage |
mm |
1250 |
Form of bed guide way |
|
3 slideway |
Span of guideway |
mm |
1600 |
Spindle speed |
|
stepless speed regulation |
Spindle speed and range |
r/min |
0.8-160 |
Taper hole of spindle |
|
120(tapered
1-7) |
Face chuck diameter |
mm |
1600/1800(special) |
Feed moton level |
mm/r |
18 step |
Range of lonitudinal feed |
|
0.125-48 |
Range of cross feed and feed range of tool slede compound |
mm |
0.063-24 |
Metric thread |
mm |
2-40 |
Inch thread |
|
1~14 |
Moudle thread |
|
1.5-20 |
Max.travel of cross slide |
mm |
725 |
Max.travel of top slide |
mm |
600 |
Diameter of tailstock quill |
mm |
300 |
Travel of tailstock quill |
mm |
300 |
Taper hole of tailstock quill |
mm |
100(tapered
1-7) |
Length |
m |
25 |
Width |
mm |
2500 |
Hight |
mm |
2300 |
Weight |
kg |
45000-60000 |
Company Profile
Located in Zhengzhou City, Henan Province, China, we are a professional manufacturer of heavy-duty horizontal lathes, heavy-duty vertical lathes, CNC vertical lathes, CNC horizontal lathes, milling machines, boring machines, drilling machines, single-column vertical lathes, double -column vertical lathes and so on. We have 20 years of experience in heavy machinery manufacturing and have a good reputation in this field. Our products have won praise from customers worldwide. We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products have attained ISO9001:2008 certification.
Quality and Safety
We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products have attained ISO9001:2008 certification.
Your Success, Our Glory:
Our aim is to help customers realize their goals. We are making great efforts to achieve this win-win situation and sincerely welcome you to join us.
We are increasingly expanding our international market share based on quality products, excellent service, reasonable price and timely delivery. Please contact us at any time for more information.
Packaging & Delivery
Packaging Details:
1. Outside we will pack the product with plastic to prevent wet;
2. Outside of the lathe machine will be packed by strong wooden pallet;
3. The detailed package about the captioned machine with high precision.
Delivery Detail: in stock
