Large Stage Bridge Automated CNC Non-Contact Measuring Instrument

Large Stage Bridge Automated CNC Non-Contact Measuring Instrument
Price: US $ 30000-60000/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: T/T,Western Union
Large Stage Bridge Automated CNC Non-Contact Measuring Instrument

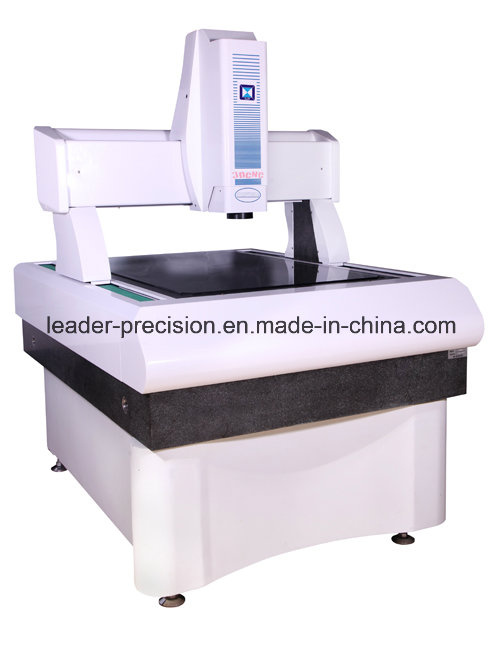

Large stage Bridge Automated CNC Non-contact Measuring Instrument is high precision measurement solutions for large parts. Complete with Metrology Software, Programmable Zoom lens, Servo motion control, the Vision machine measure parts up to 2 meters.

Large stage Bridge Automated CNC Non-contact Measuring Instrument is the ideal model for larger LCD, LED, PCB, Film and Large glass products inspection. Working with professional CNC Metrology software and Auto-lens satisfies various sizes measurements.

The automated  Large Vision systems are also widely used with multiples of smaller parts nested in a fixture.

Measuring Instrument Features:

1. DIN 000 grade granite table master base guarantees strength, accuracy and stability
2. 0.0005mm resolution Germany HEIDENHAIN self-adhesive metal grating on X and Y axis ensure the accuracy and long life
3. USA NAVITAR 0.7X-4.5X Auto-Lens as standard satisfies various sizes measurements without re-calibration
4. Germany Gigabit Ethernet Industrial Camera
5. Programmable surface cold-light source and contour parallel source is used to enhance the performance of illumination.
6. Fast Servo Motor Control
7. Fast and accurate Z measurements with Vision
8. Powerful Metrology software is simple to use, combination with joystick, keypad and mouse
9. The Vision Systems are Probe-ready (option), including UK RENISHAW contact probe and Japan Keyence CCD laser probe


Specification:


Item No.6060CNC6080CNC8010CNC1012CNC1215CNC
Working table's size718*948718*1148918*13181118*15181318*1818
Stage Travel X-axis600mm600mm800mm1000mm1200mm
Stage Travel Y-axis600mm800mm1000mm1200mm1500mm
Stage Travel Z-axis200mm(focus)
Feed mechanismCNC
Resolution0.5µm
Measuring Accuracy(3+L/200) µm
Repeatability± 0.001 mm
Load50kg
Video SystemCCD Camera:Germany Gigabit Ethernet Industrial Camera Zoom Lens : USA NAVITAR 0.7X-4.5X Auto-Lens
IlluminationContour illumination: LED lamp Surface illumination: Programmable LED ring light
PowerAC110/220V, single phase 50/60Hz Total power 400W
Environment(20 ± 2 ) °C ; 55% ~ 65%

Prod Model: 1215CNC
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name: Automated CNC Non-Contact Measuring
Model: 1215CNC
Working Table's Size: 1318*1818mm
Stage Travel X-Axis: 1200mm
Stage Travel Y-Axis: 1500mm
Stage Travel Z-Axis: 200mm(Focus)
Feed Mechanism: CNC
Resolution: 0.0005mm
Measuring Accuracy: (3+L/200)*0.001mm
Repeatability: 0.001 Mm
Dongguan Leader Precision Instrument Co., Ltd. is a hi-tech enterprise specializing in R&D, production and sales of optics, machinery and electronic precision measuring and testing instruments, our range includes: Video measuring system, profile projector, coordinate measuring machine, measuring microscope, linear scale and digital readout, video measuring machine, optical comparator, VMM, VMS, vision measuring machine, non-contact 2D video measuring system, Hardness tester, and also stereo microscope, biological microscope, LCD inspection microscope, metallographic microscope etc which are widely used in metrological, measuring, inspecting, testing and reverse engineering fields.

Our continuous excellent products supply sustainable value for our large client word-wide. With powerful strength and good reputation, our products have been exported to more than 30 countries. We are committed to raise the standards of our products and improve the services. We are dedicated to ensure superior products, timely delivery, competitive price and excellent after-sale service

We have a proficient and strong workforce, comprising of technically skilled professionals, who have rich experience in dimension measurement and data analysis in machinery, mould, electronic, aviation, automobile, plastic, gear, PCB circuit board, spring, connector, semiconductor, precision parts and so on.

We guarantee quality and high performance of our products and offer excellent services. Our continuous effort towards producing superior quality products and perfection has helped us to win the trust, confidence and assurance of the customers from all over the globe. Our products have received a great response and recognition in the customers. You can depend on our products for superiority, reliability and durability.
