Layers: 6layer
Surface Finished: HASL
Material: FR4
Thickness: 2.0 mm
Minimum Wire Width: 3mil
Smallest finish hole size: 0.2mm
Finished copper: 1oz
Solder Mask colour: Green
Silkscreen colour: White
Standard: IPC-A-600G Class II
| Laminate | FR-4, Halogen free, High TG, Cem-3, PTFE, Aluminum BT, Rogers |
| Maximum board size | 610*460mm | 762*508 |
| Board thickness | 0.3-3.5mm | 0.21-6.0mm |
| Minimum line width/space | 0.1/0.1mm | 0.076/0.076mm |
| Minimum line gap | +/-15% | +/-10% |
| Outer layer copper thickness | 140um | 245um |
| Inner layer copper thickness | 70um | 245um |
| Min.finished hole size(Mechanical) | 0.2mm | 0.15mm |
| Min.finished hole size (laser hole) | 0.1mm | 0.1mm |
| Aspect ratio | 10:01 | 20:01 |
| Solder Mask Color | Green\Blue\Black\White\Yellow\Red\Grey |
| Impedance control Tolerance | <=+/-10% |
| Surface Treatment | Flash Gold | 0.025-0.075um | 0.025-0.5um |
| Immersion Gold | 0.05-0.1um | 0.1-0.2um |
| Sn/Pb Hasl | 1-70um |
| Leadfree Hasl | 1-70um |
| Immersion Silver | 0.08-0.3um |
| OSP(Entek) | 0.2-0.4um |
| Gold Finger | 0.375um| >=1.75um | |
| Hard Gold Plating | 0.375um| >=1.75um | |
| Immsion Sn | 0.8um
| |
| V-Cut |
| V-Cut degree | 20,30,45,60 |
| Outline Profile | Chamfer | The angle type of the chamfer | 30,45,60 |
| Plug via hole | Max.size can be plugged | 0.6mm | 0.7mm |
| Largest NPTH hole size | 6.5mm | >6.5mm |
| Largest PTH hole size | 6.5mm | >6.5mm |
| Min.annular ring can be kept | 0.15mm | 0.1mm |
| Min.distance between the IC pads can keep Sm bridge | 0.25mm | 0.18mm |
| Min.SM bridge for green soldermask | 0.1mm | 0.076mm |
| Min.SM bridge for black soldermask | 0.125mm | 0.1mm |
| Tolerance of dimension size | <=+/-0.13mm | +/-0.1mm |
| Tolerance of board thickness | >=1.0mm +/-10% | +/-8% |
| <1.0mm +/-0.1mm |
| Tolerance of finished NPTH hole size | +/-0.05mm | +/-0.05mm |
| Tolerance of finished PTH hole size | +/-0.076mm | +/-0.05mm |
| Delivery time | Mass:10~12d | Sample:5~7D |
| Capacity | 60000sq/m |
| CAM capability | 20 Items | 100-180Items |
R-Creation Technology Limited is specialized in Single, Double-sided, Multilayer, PCB and PCBA, PCB Assembly manufacturer. At the same time, We supply OEM Servies. Be established on January8, 2000, in HeFei, more than 10 years of successful experience on the Local and global marketing. Our PCB production capacity can reach 10000 square meters per month and PCB assembly capacity at 250, 0000 components per month.
The main customers are from medium-sized manufacturers in the line of consume electronics, digital products, radio telecommunication, industrial management and automation, medical treatment, etc. Our market share is steadily increasing year by year.

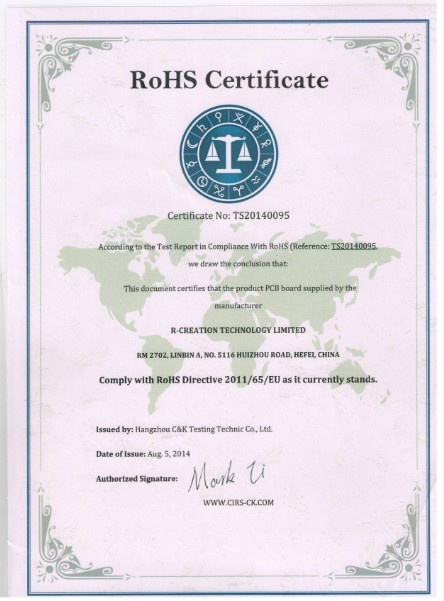

With consideration effort of Quality & Environmental &Human Health. We have got certificates of ISO9001: 2000, ISO14000 and RoHS.
On the tenet of being faithful, professional, enthusiastic, we hold hand in hand with customers, member staffs, and partners to develop together on the basis of mutual benefit.
