Product Specifications
| Prod Model: |
HZ-1003E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Compression Testing Equipment: |
Testing Equipment |
| Type: |
Universal Testing Machine |
| Weight: |
0-100Kg |
| Power Source: |
AC220V |
| Maxcapacity: |
Max Testing Force:5 Kn |
| Accuracy Grade: |
0.01kn |
| Load Way: |
LCD Compresstion Resistance Test Machine |
| Display: |
Computer Display |
Product Description

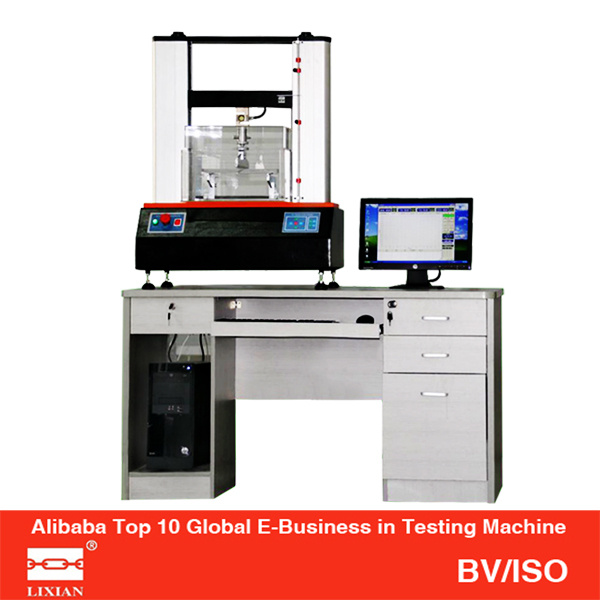

Machine summary:

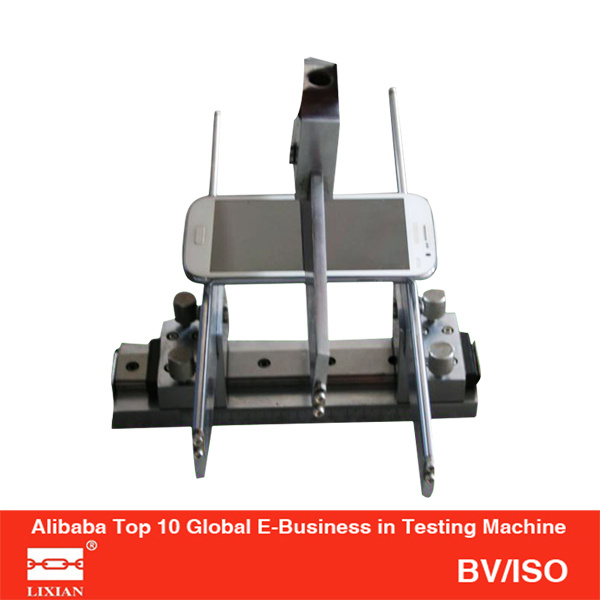

This machine suitable for phone cover glass, tablet glass, liquid crystal glass and so on. To do three point bending, four point bending and compression testing and other physical and mechanical performance test.
This machine can according requirements to meet GB, DIN, ISO, JIS, ASTM international standard to test and provide data. (such as JC/T 676-1997 Glass material bending test method, BS EN 1288-3-2000 Glass in building determination of flexural strength), can meet Samsung glass lenses testing standard. Adopt computer control, windows operating system cab dynamic display the curve of the test data. Can automatically calculate Max. Load, Max. Deformation, bending stress, bending strength, compression strength, compressive force, elasticity modulus, elongation and other parameters (According to user requirements to equipped the corresponding fixture).
Test curves and data results can dynamic display on the computer, and arbitrary set, curve operation more simple and easy. Could curve editorial, overlay, separation, scaling, print all electronic display monitor, etc, any time. The entire data acquisition step, use servo motor and reducer, drive the ball screw make the displacement of the machine up and down, balancing and stable to lengthen the service life of the machine and use efficiency; The system can reflect more accurate force value, deformation, time and contact computer to realize the full computer control and print the standard test report.
The working principle and performance:
Driven by servo motor, servo motor by a transmission mechanism to drive moving beam to move up and down, implement test loading process. This machine adopts advanced full digital control system and measuring method, computer show the testing procedures and the dynamic display of the test curve, data processing, after the test can amplify of curve by software to analyze data and edit.
Meet the standard:
GB/T16491-1996 electronic universal testing machine
Application industry:
Mainly used in universities, scientific research units, quality inspection center quality inspection departments, business units Laboratory, etc. Used for physical and mechanical properties, process performance and plate research of the materials.
Main parts:
1.5KN testing machine one set.
2. Machine contains:
A)5000N High precision tensile and pressure sensor one set(or optional);
B)Imported servo system one set;
C)high precision synchronous belting leather reduction system;
D)High precision ball screw one set;
E)TM2101BDPMeasurement and control system and a set of software
Measurement and control system for tensile, compression, bending, stripping, constant pressure test, etc, And can according to customer's product requirements according to GB, ISO, ASTM standard establishment. Automatically calculate the Max. Testing force, bending strength, elasticity modulus, elongation and so on.
3. Fixture(Optional)

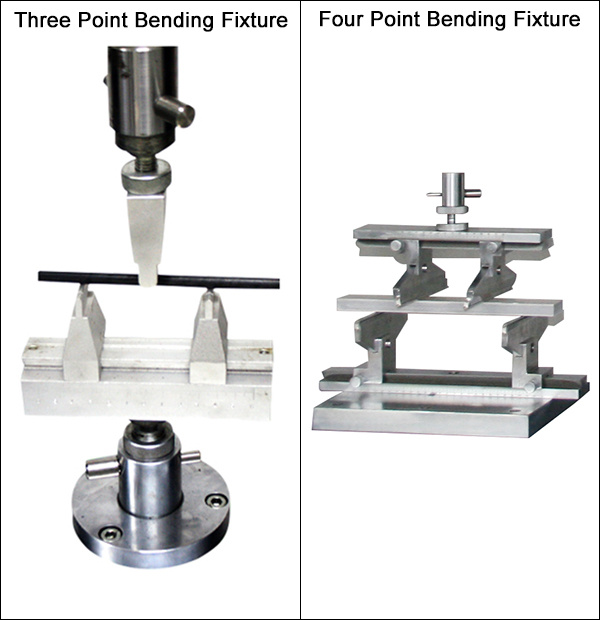

A)Three point bending fixture (Size according to request of customer products)
B)Four-point bending fixture (Size according to request of customer products)
4. A set of testing machine specialized tools, one set of protective cover.
5. HP PC and printer, data connection line, Testing machine software CD.
| Max. load | 5kN |
| Accuracy | 0.5 grade |
| Effective load range | 0.2%~100% FS, "FS" for the full scale |
| Force error | Less than ±1% of the value |
| Test speed adjusting range | 0.001~500 mm/min (stepless speed regulation) |
| Speed Accuracy | +0.5% |
| Test force value for resolution | ±1/250000 of the Max. Force (Full resolution remains the same) |
| Deformation measurement range | 0.2~100%FS |
| Deformation measurement error | Less than ±0.5% |
| Deformation of the resolution | 1/250000 of the Max. Deformation (Full resolution remains the same) |
| Safety device | Electronic limit protection |
| Overload protection | More than 10% of the Max. load automatic protection |
| Data acquisition frequency | 100times/sec |
| Valid test width | 400mm |
| Maximum stroke | 400mm |
| Dimension | 750×400×920MM (L*W*H) |
| Power Supply | single phase AC 220V/0.4kW |
| Weight | 80kg |
