LED Back Lighting, Assemble Back Lighting From Slt DC24V 0.6W
LED back lighting feature:
1. Super bright illuminant(imported SMD2835), isolated driver(PF>0.90), good heat dissipation, low luminance decrease, all to achieve high bright, no dark area, first class light efficacy.

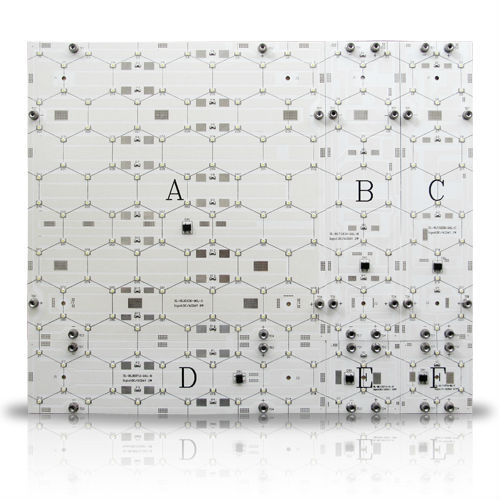

2. Different kinds of model can be combined freely, unique honeycomb structure appearance, can be used in various range of advertising in order to achieve super effect of publicity.
3. Instant start, no flickering, no humming, wide angle of deflection with uniform light distribution, dimmable model can be customized.
4. Saving energy up to 80%, decress the cost of maintenance, so you don't need to replace lamps frequantly any longer.
5. CE/ETL/RoHS/UL approved, make sure the good quality and safety.
WE DO FOR YOU...
You only need 4-8PCS per square meter, SAVE 80% energy, help you earn more money.
*Cut energy charge by 80% *Cut transportation costs by 85% *Cut installation costs by 90%
Why clients choose us?
1. Good quality
2. Resonable price
3. Safety packaging
4. Short lead time
5. One-Stop service
Quality control:
1. Before producing, we would strictly check the material, color, wick, etc.
2. Aging for every light about 12-24 hours
3. Our salesman would trace every phase of production from the beginning.
4. We have a QC team, every piece product sould be inspected before packing.
Caution
1. Please read the specification carefully, before installation pls ensure the application environment meets with the requirement.
2. Please shut off the switch before installation, and ensure the output voltage of power supply is DC24V
3. Indoor use only.
Installation
1. Non-mechanical extrusion on the LED light board and its components,
2. Keep the PCB light board right during installation.
3. Meet the requirements and safety standards of electronic components before installing LED light board (in the case of live work), don't live operation, prevent short circuits.
4. It can be directly input DC/AC24V power. If it is installed with dimming remote, entering a remote control input terminal of the power supply output DC24V, again from the remote control output terminal connected to the circuit board, as shown above single dimming connection, and then its dimmable function works.
5. When install a large area, the PCB board should be put in the same direction, so that the PCB board positive +to positive +, negative -to negative -. After fixing with screw lock E-type gaskets connection, maximum connection 10 pcs with one power.
6. Each piece of the input voltage is DC24V, the input voltage can not be used directly with AC220V. 30x30cm per sheet lamp, the board power is 8W, Noted that the input voltage DC24V + corresponding to the lamp panel +, the input voltage of the the DC24V-corresponding lamp panel -, not allowed reversed connection.
7. Maximum power supply., for example: 150W 24V switching power can supply up to 18pcs 30X30CM light board (8W).
If you have more question about the installation, JUST contact with us.
About us:
Our factory established in 2004, which is located in Xiamen Special Economic Zone.
We are the professional manufacturer of adertising lights, such as, trade show display light, exhibition arm light, pop up light, LED module and LED Backlight. We have been in this line for about 10 years. We are professional and reliable supplier.
We possess around 30 technical achievements, 23 of them have been patented.
If you want to know more about our products, Just Contact us.
Contact: Frank Law ONLINE OR
Mobile: 0086-13215912888
|
Model |
LED |
Power |
Voltage |
Lumen |
CCT |
Angle |
Size |
|
SL-BM008-F006 |
EPISTAR |
0.6W |
DC24V±0.5V |
50-55LM |
3000-7000K |
120° |
75*75*10mm |
