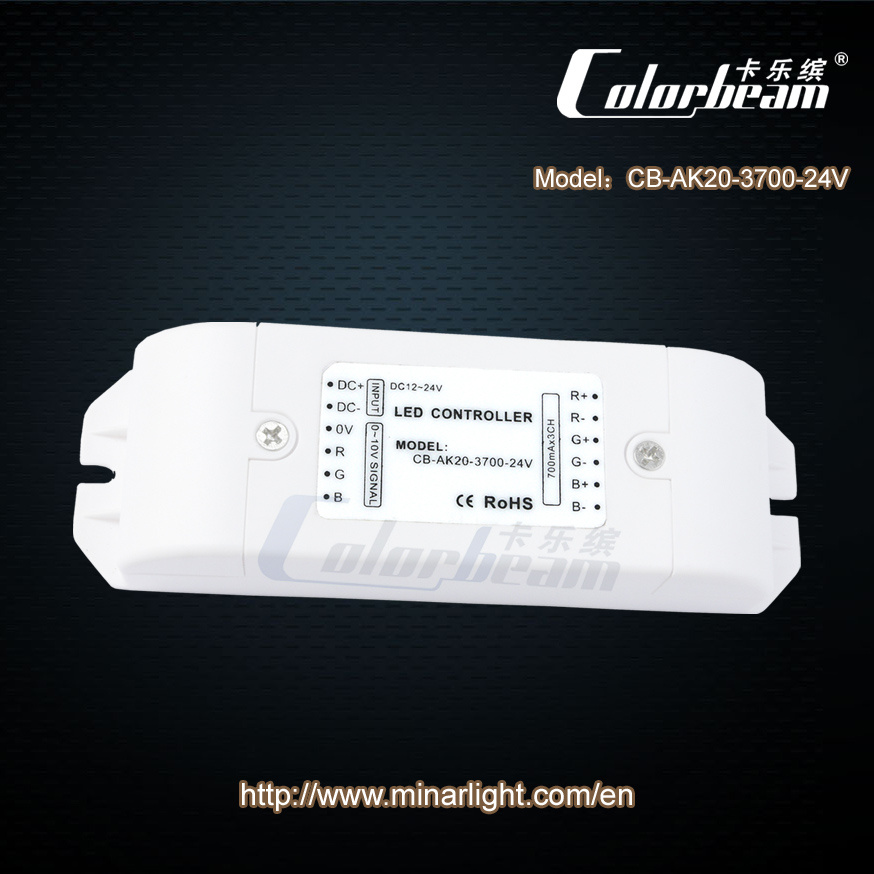

Product Specifications
| Prod Model: |
CB-AK20-3700-24V |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material Of Case: |
Plastic |
| Input Voltage: |
DC12V~DC24V |
| Output Current: |
Constant Current 700mA*3CH |
| LED Quantity: |
3CH*(1-6) 3W LED |
| Dimension: |
L137*W43*H30(Mm3) |
| Working Temperature: |
-20c~+40c |
| Dimming Range: |
0~100% |
| Mathematical Model: |
Linear |
| Task: |
LED Dimmer or Controller |
| Structure: |
0-10V |
| Signal: |
0-10V |
Product Description
0-10V Constant Current LED controller receives 0 -10V dimming signal.
It is mainly for high power LED wall washers, LED strip lights, LED spot lights, LED downlights, LED ceiling lights and more
Features:
1. Brightness control from 0 to 100%, stable and soft, no flicker
2. Uses optoelectronic isolation circuit, It can receive all 0-10V dimming signal
3. It can connect to power amplifier if dimmer is overload
4. High refresh rate, can meet requirement of camera
Model
|
Input Voltage |
Output Current |
LED Quantity |
Size (mm) |
CB-AK20-1350-48V
|
DC12V-48V |
Constant Current 350mA*1CH |
1CH*(1-12) 1W LED |
L137*W43*H30 |
CB-AK20-1700-48V
|
DC12V-48V |
Constant Current 700mA*1CH |
1CH*(1-12) 3W LED |
L137*W43*H30 |
CB-AK20-3350-24V
|
DC12V-24V |
Constant Current 350mA*3CH |
3CH*(1-6) 1W LED |
L137*W43*H30 |
CB-AK20-3700-24V
|
DC12V-24V |
Constant Current 700mA*3CH |
3CH*(1-6) 3W LED |
L137*W43*H30 |
CB-AM20-3350-24V
|
DC12V-24V |
Constant Current 350mA*3CH |
3CH*(1-6) 1W LED |
L165*W41*H27 |
CB-AM20-3700-24V
|
DC12V-24V |
Constant Current 700mA*3CH |
3CH*(1-6) 3W LED |
L137*W43*H30 |
