Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Appearance: |
Square |
| Certification: |
CE, RoHS |
| Base Material: |
Aluminum Alloy |
| Voltage: |
AC50-265V/50-60Hz |
Product Description

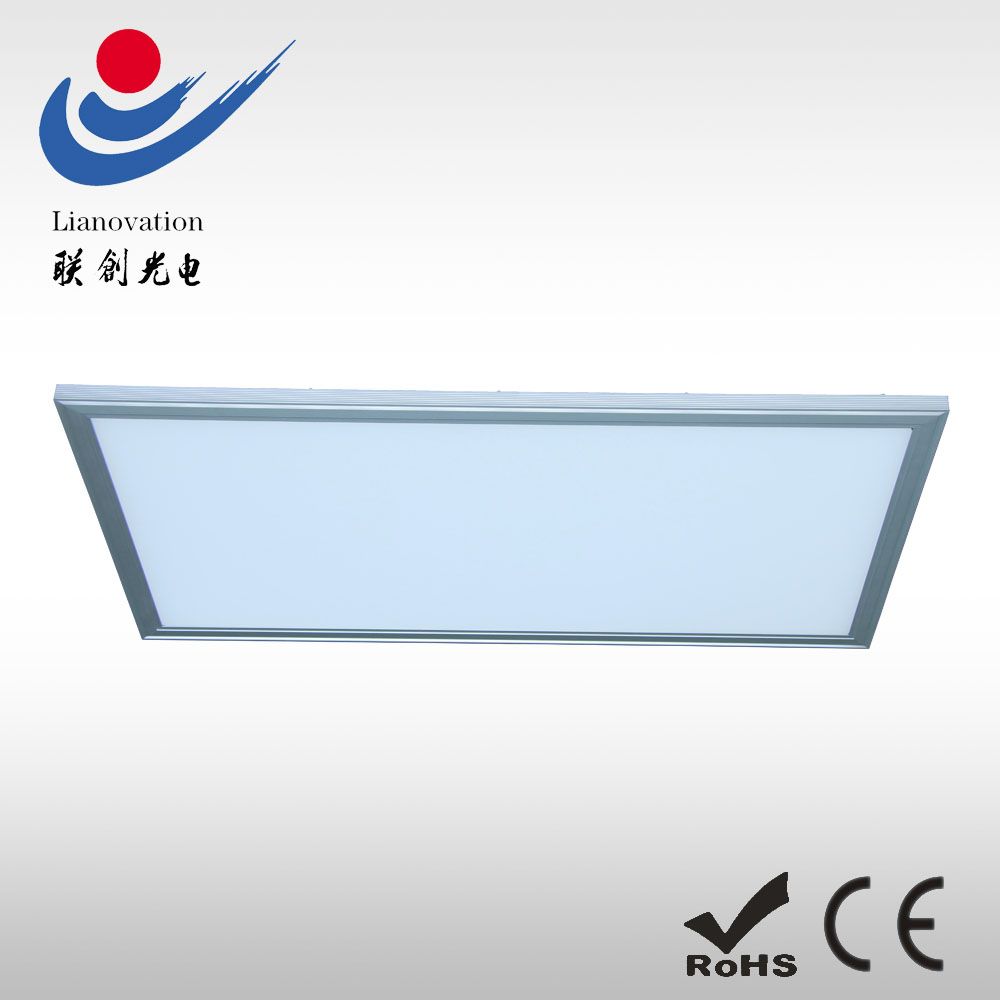

LED panel light
1. LED panel adopts high-emitting devices with high efficiency, healthy, no strobe, no radiation, environmental protection. Compared with the traditional fluorescent lamps, the lamp can save more than 50% of energy.
2. LED pane light with special design can make light better uniformity, beautiful appearance, and soft light, comfortable with high bright, good decorative effect.
3. Using SMD LED devices as light source, the lamp have high luminous efficiency, good reliability, long life and no intellectual property disputes.
4. Use external power supply, easy to install, can recess/hang/flat at ceiling keel or recess at ceiling, wall and mounting body surface.
5. The panel light can be dimmable, control by manual and remote.
6. Light color: White, warm white, red, blue and RGB and so on
|
Model No. |
LCPL-0303-20W |
LCPL-0603-20W |
LCPL-0606-40W |
LCPL-1203-40W |
|
Power consumption |
20W |
20W |
40W |
40W |
|
Color Temperature |
2700K-7000K(optional) |
|
Input Voltage/ |
AC90V~265V/50~60HZ |
|
Work Frequency |
|
Luminous Efficiency of LED |
≥ 120lm/W |
|
Luminous Flux |
≥ 2000lm |
≥ 1800lm |
≥ 4000lm |
≥ 3600lm |
|
Luminous Efficiency of Lamp |
≥ 90lm/W |
|
Color Rendering Index |
≥ 70 |
|
Power Factor |
≥ 0.9 |
|
Protection Rating |
IP40 |
|
Operating Life |
≥ 50000h |
|
Material |
Aluminum alloy + (Optical) Acrylic |
|
Dimension |
L300mm*W300mm*H12.5mm |
L600mm*W300mm*H12.5mm |
L600mm*W600mm*H12.5mm |
L1200mm*W300mm*H12.5mm |
Founded in June 1999 and listed at Shanghai Stock Exchange in March 2001, Jiangxi Lianchuang Optoelectronic Science & Technology Co., Ltd is one of the leading hi-tech enterprises of National Torch Program, an industrialization base of National 863 Program results, and a National model engineering enterprise of "Industrialization of Indium Gallium Nitrogen LED Epitaxial Wafers and Chips", as well as the core enterprise of industrialization of Nanchang National Semiconductor Illumination Project, and the technological research center of Nanchang Semiconductor Lighting Engineering, as well as a national high and new-tech enterprises.
Our company's main business, which give first priority to LEDs and optoelectronic wire cables, range from LED lighting products, optoelectronic wire cables, relays, communication and information services.Jiangxi Lianchuang Optoelectronic Science & Technology Co., Ltd is a high tech enterprise which specializes in R&D, production, sales and services of both LED outdoor lights and LED indoor lights, such as LED street light, LED tunnel light, LED tube light, LED bulb light and LED spot light and so on.We have a strong presence in the LED lighting industry through our application of the latest technology, advanced production equipments and a strict quality management system.
We have been providing high-performance and reliable electronic components for China's aerospace industry, especially for "Shenzhou" series and "Tiangong" series spacecrafts, which met special requirements of "Shenzhou" series and guaranteed its successful launch by high-quality products and services.
According to the corporate tenet of "absorbing persons of outstanding ability, pioneering great optoelectronic cause" and holding on to the philosophy of "focus on lighting career, make low-carbon, green and environmentally friendly life", we have intensified technological innovation and stressed team-building in order to make our company to be domestic top-grade optoelectronic enterprise with international competing ability.
