Product Specifications
| Prod Model: |
HZ-TDKT35WI |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimmable: |
Yes |
| Cut-out Size: |
220mm×141 Mm |
| Beam Angle: |
24°40°50° |
| IP Rating: |
45 |
| CRI: |
90 |
| Light Source: |
LED |
| Material: |
Aluminum |
| Installation: |
Embedded |
| Application: |
Home Furnishing |
| Applicable Places: |
Shop |
Product Description

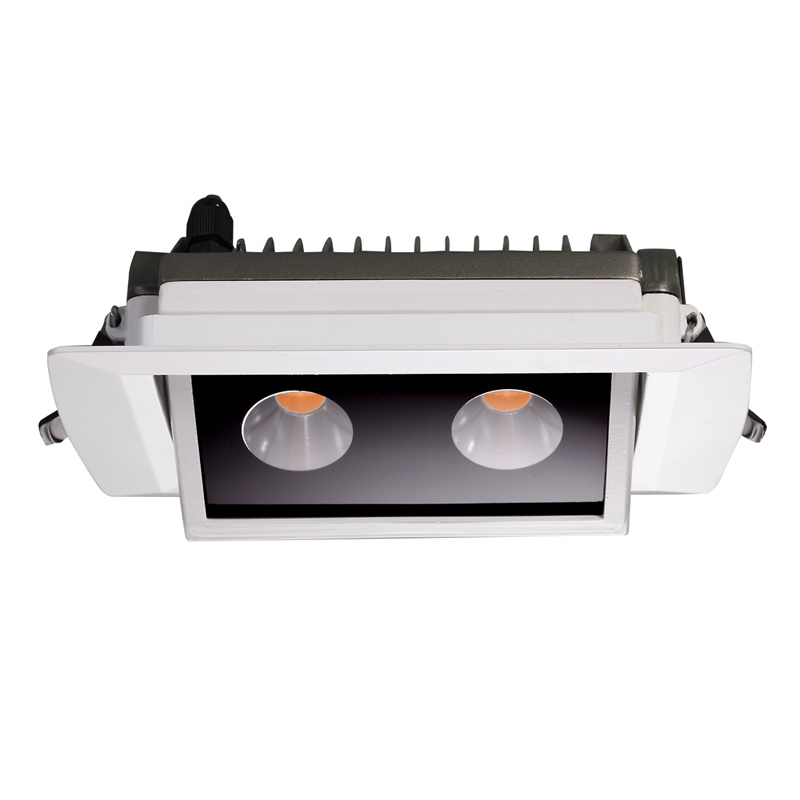

35W LED Rectangular Ajustable Downlight
LED Rectangular ajustable downlight are designed for accent areas of wall washing, the unique rectangular light distribution avoid dark areas between of two spotlights, providing uniform and comfortable wall washing effect, the lamp can be widely used to the billboard, bulletin boards, wall of retail shop and Corridor, creating accent lighting atmosphere
LED Rectangular ajustable downlight Features:
60 Degree Adjustable rectangular
Powder coated die-cast aluminium construction
Suitable for 27W/35W
Available in 24 40 50° Beam angle
Directly replace Philips MHI shop lighter with more than 3200lm output
Applications:
Billboards, bulletin boards, wall of retail shops, corridors, creating accent lighting atmosphere, etc.
| led Rectangular ajustable downlight | Power | Volts | Power factor | Equivalent | Colour temperature | Light colour | CRI | Approx. Lumen | Cut-out | Dimmable |
| HZ-TDKT27WI | 27W | 100-240V | >0.9 | Halogen100W | 3000K± 200K | W.W | >90 | 1647Lm | 145*220mm | Yes |
| HZ-TDKT27W | 27W | 100-240V | >0.9 | Halogen100W | 4000K± 300K | N.W | >80 | 2295Lm | 145*220mm | Yes |
| HZ-TDKT27WH | 27W | 100-240V | >0.9 | Halogen100W | 5500K± 500K | P.W | >80 | 2430Lm | 145*220mm | Yes |
| HZ-TDKT35WI | 35W | 100-240V | >0.9 | Halogen150W | 3000K± 200K | W.W | >90 | 2135Lm | 145*220mm | Yes |
| HZ-TDKT35W | 35W | 100-240V | >0.9 | Halogen150W | 4000K± 300K | N.W | >80 | 2975Lm | 145*220mm | Yes |
| HZ-TDKT35WH | 35W | 100-240V | >0.9 | Halogen150W | 5500K± 500K | P.W | >80 | 3150Lm | 145*220mm | Yes |
Hi-semicon is vertically integrated manufacturer. We manufacture our product by using our leading-edge technological expertise in thermal management, optics and electronic circuitry, lenses and LEDs to improve our existing products, bringing further efficiencies through cost improvements and product design.
Hi-semicon technology focus on
System reliability and compatibility
Optical quality: Flicker-free, Anti-glare, High CRI
Light dispersion
Heat-control technology
Nano-coating technology
Intelligent control-DALI, Zigbee, Sensor est.
What can we do for our customer
Reliable product
System integration merits
Balance between Reasonable cost and function
Responsibility warranty
Thoughtful in-depth customization
Hi-semicon create long-term value for our customers.
