Product Specifications
| Prod Model: |
CC2.3RX4OT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Plastic Cabinet IP65 Waterproof: |
RF Remoter Control Can with GPS Brightness |
| Display Type: |
Segment LED Display |
| Tube Chip Color: |
Single Color |
| IP Rating: |
IP65 |
| Certification: |
CCC |
| Pixel Configuration: |
7 Segment of DIP LEDs |
| Pixel Pitch: |
2.3 Inch High Digits |
| Display Function: |
Time and Temperature |
| Application: |
to Show Real Time and Temperature |
| Scanning Mode: |
RF Remoter |
| Pixel Density: |
2.3 Inch High Digits |
| Average Power Consumption: |
3W |
Product Description

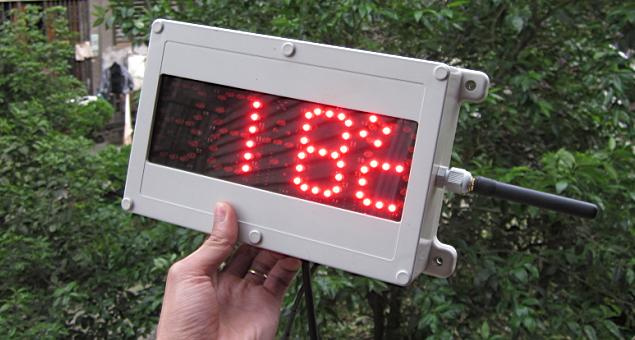

LED timer
Model No.: RCG2.3RX4OT
Color: red
Usage: can both for outdoor and indoor viewing (brightness is adjustable), IP65 waterproof
Digit height: 2.3 inches X 4 digits
No. of LED lamps in each segment: 3 PCS
LED rows in each segment: 1 row
IC specs: 14 X 14 Mil
Life-span of LEDs: 10 years
Brightness: 1500 MCD/LED
LED lamp viewing angles: 120°horizontal / 50°vertical
Best viewing distance: within 50 meters
Power consumption: 8W Max. / 5W average
Power supply: 110/220V AC, or use internal rechargeable lithium battery
Overall frame size: 268mm length X 150mm height X 60mm thickness
Cabinet materials: grey plastic
Net weight: 1 KG
Waterproof level: IP65
Quality grade: 8 grade
Features / Functions:
1) To show real time(Hrs:Mins, 24 and 12 hours format are both available with the internal switch) and outside air temperature( ºC) and date( Days-Month, or Month-Days) alternately
2) Control / edit the sign with RF remoter, the remote distance is 50 meters Max. (or you can use RS232, RS485 series interface, TCP/IP, wireless RF via computer)
3) super high brightness, suitable for viewing in strong sunshine, waterproof &dustproof & shockproof, suitable for -45ºC to +60 ºC outside atrocious weather, with inside ventilation device
4) The brightness can be adjusted by the RF remote controller
Packing details: to be packed in one wooden box,2.5KG gross weight
Air freight: depend on your quantity and address
Payment term: by T/T or Western Union, 70% Min. down payment requested
Delivery time: 6--12 days
Warranty: 3 years
Price: 180 USD (for only 1 unit), FOB Shanghai
