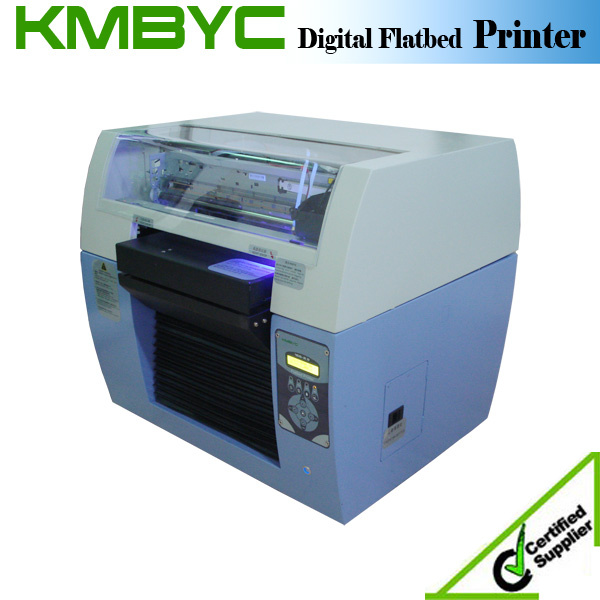

Brief Introduction
This UV printer is economy normal speed model; For example to print A3 size photo, it costs approx 3.5 minutes.
1, flatbed UV printer is used for print any flat product except textile, such as acrylic, wood, galss, plastic, phone case, pen, card, golf ball, flat glasses lag etc...
2, flatbed UV printer is directly print; For most material, no need coating, no need any treatment before or after print; It is one of them most convinient printing technology;
3, UV print effect is the best, strongest and most stable; No only water proof, acratch proof, but also alcohol proof, sun proof...
4, UV printer can print textured / embossing effect, hand feeling and visual perception are very good;
5, our UV ink is very good quality and cheap, especially white ink is only $45/500ml; It is very cheap for print white effect or print on black products.
Necessary goods of UV printing are as bellows:
1, Color UV ink + White UV ink, can print on any color product;
2, Cleaning liquid: It is better to keep some Cleaning liquid in stock, you may need to clean the printer someday (for example if you will leave it not work for long time);
3, RIP software is necessary for print white color, and its inner ICC is very good for print all colors;
Print process is easy, directly print picture from computer with no transfer, no color lose:
1, light color product (no need white ink):
S1, put product on printer,
S2, choose the picture from computer and put it in RIP software,
S3, click print option, and it will be printed onto the product;
2, dark and black color product (need white ink):
S1, put product on printer,
S2, choose the picture from computer and put it in RIP software,
S3, click white print option;
S4, it prints white picture base onto the product;
S5, click the color photo print option;
S6, it prints color photo on white base;
Max Print Size |
28*60cm |
Printer Platform Size |
33*60cm |
Max Print Thickness |
18cm |
Max Resolution |
5760*1440dpi |
Nozzle Configuration |
540 nozzles (90 * 6 colors) |
Minimum Ink Droplet Size |
1.5 Pico liters |
Ink Type |
6 colors |
Ink Palette (RIP mode) |
C/M/Y/K/W/W |
Ink Cartridge |
CISS |
Rated Voltage |
AC 110/220V |
Power Consumption |
approx 120W |
Printer Size |
87*80*63cm |
Printer Weight |
68kg |
Interface |
Hi-Speed USB 2.0 |
UV Light Wavelengh |
395nm |
Printing Technology |
advanced MicroPiezo inkjet technology |
Height Adjustment |
automatically by infrared ray |
Print Speed |
as fast as 111 sec for A4 size (21*29.7cm) 1440*720dpi photo |
Operating Systems |
windows 2000/XP/7 |
Operating Temperature |
50° to 95° F (10° to 35° C) |
Operating Humidity |
20% to 80% |
Dimensions |
approx 96*76*78cm packed in wooden case |
Gross Weight |
approx 100kg (Volume weight is approx 115kg.) |
Warranty |
One year (except CISS, cleaning unit, print head or damage by human.) |
Kunming Boyichuang Technology Development Co., Ltd. is located in the beautiful City of Perpetual Spring - Kunming City. Our company began researching and producing multifunctional flatbed printer since2001; We quickly fill in the market gap, and soon becomes the leader of multifunctional flatbed printer industry and gain most of the domestic market.
Through years' continuous development, Kunming Boyichuang establishes branch offices in Shenzhen, Shanghai and Guangzhou; Expanded the local sales and improved after-sales service network.
Kunming Boyichuang has more than ten years research, development and production experience in flatbed printer manufacture field; As the biggest domestic producer and seller on small and medium sized multifunctional flatbed printer, our products have been sold to all provinces (include Hongkong, Macao and Taiwan province) of China and more than 100 foreign countries and oversea regions.
On the belief of company philosophy - "growing with honesty and healthy, leading with profession and specialty", we will provide better quality and more efficient multifunctional flatbed printer for you.
