Lema Plunger Snap Action Switch High Precision Switch Lz7310

Lema Plunger Snap Action Switch High Precision Switch Lz7310
Price: US $ 5/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram

Product Specifications

Prod Model: Plunger snap action switch high precision switch
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

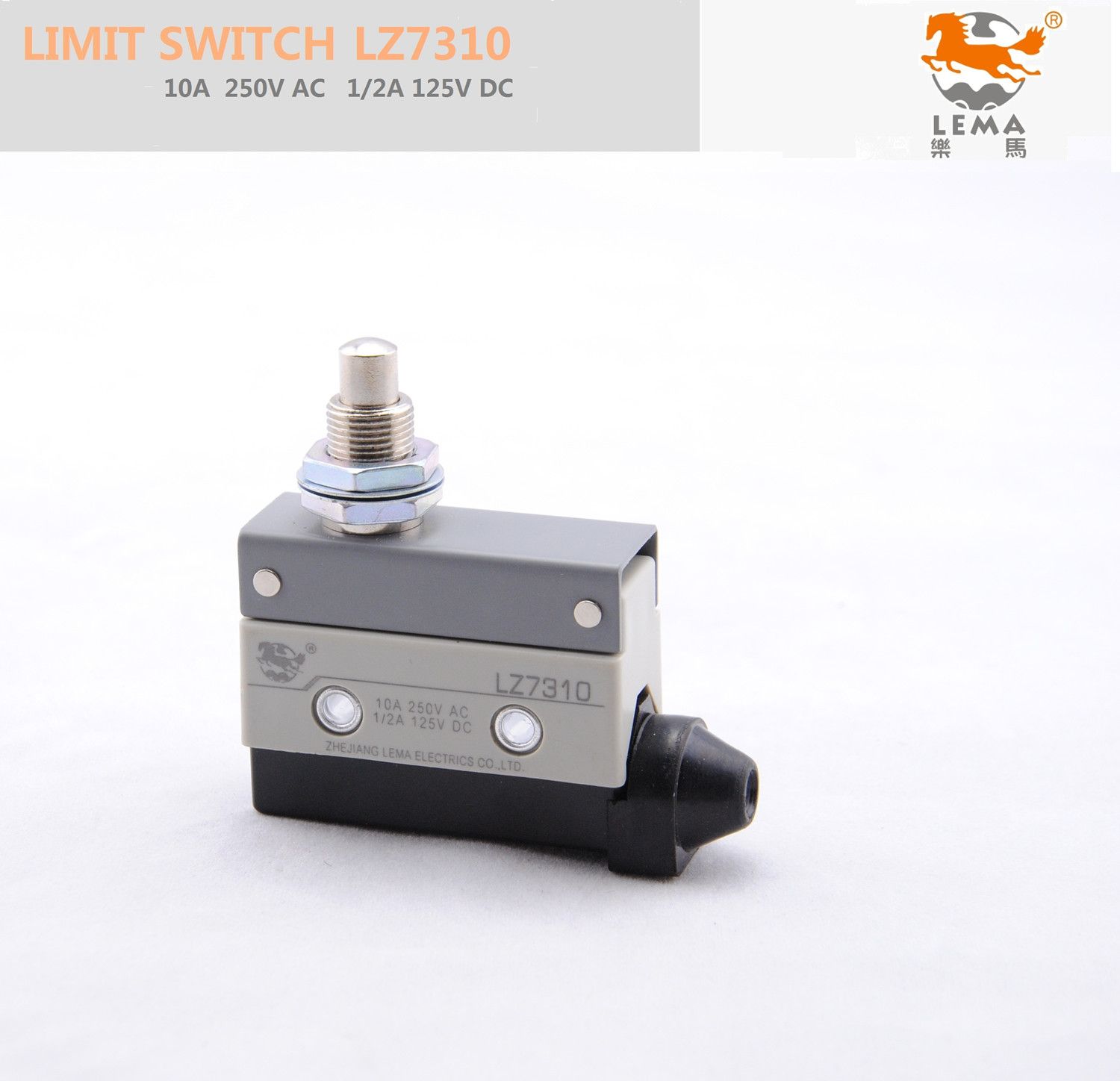

Lema LZ7310 Panel Mount Push Plunger Sealed Limit Switch
Operating speed0.01mm-50cm/s
Operating frequencyMechanical:120 operations/min
Electrical:30 operations/min
Initial insulation resistance100MΩmin.(at 500VDC)
Initial contact resistance25MΩmax.
Dielectric
strength
Between non-consecutive
terminals
1,000Vrms, 50/60Hz for 1 min
Between non-current carrying
metal parts and each terminal
1,500Vrms, 50/60Hz for 1 min
Between ground and each
terminal
1,500Vrms, 50/60Hz for 1 min
Vibration resistance10-55Hz,1.5mm double amplitude
Max.shock resistanceDestruction: 1000m/s2max.
Malfunction: 300m/s2max.
Operating
life
Mechanical life1,000,000 operations min.
Electrical life100,000  operations min.

Originated in 1981, this company is specialized in research and development, the micro-switch, the waterproofswitch, the power source plug, the protector, the float spacing controller series product, which are suitable for low voltage electric appliance, domestic electric appliance, instrument measuring appliance electron toy with AC 50Hz, voltage 250V and below, DC voltage 220V and below. The company is located in the economic development zone of Yueqing. The first stage factory building covers an area of 11 Mou with a construction area of 4566 square meters, the second stage covers an area of 42 Mou now, which will put into building soon. The company has a rich technical force, and the key team of the Hi-Tech who dare to innovate, dare to open up. The company has achieved"LEMA"brand to invigorate the Chinese nation with the indication of "setting up the factory with quality, prospering the factory with science and technology"for more than 20 years. Our company has past management system authentication ISO9001-2000 and ISO14001-2004, and the products have won the CE certification, U. S. A. UL authentication, CCC authentication, and SGS checkout. The products are far sold to countries such as Amercia and Europe, Southeast Asia, etc. We could like to offer the best quality, competitive price and best after-sale service to all of our users, " seeking the bosom friends of the four seas, making the friend all over the world", wish to make progress together with the domestic and international friends to achieve more glorious future
