Product Specifications
| Prod Model: |
LF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Ss304 or Ss316L |
| Surface Finish: |
Mirror Polish or Ep |
| Certificate: |
CE &ISO9001 |
| Filter Module Diameter: |
8" or 12" or 16" |
Product Description

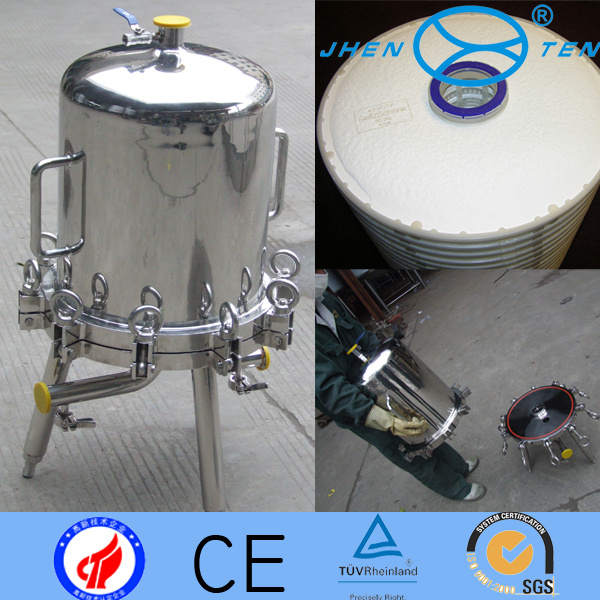

Lenticular filters have a long history in Food and Beverage applications, They arose out of the need to package sheet-based depth filter technology in more user-friendly, modular closed systems, especially for small batch production or medium flow rate applications. Jhenten's lenticular filter housing can be suitable for international brand 's filter disk with lower cost. The surface finish totally arrive sanitary grade requirement.
Features:
Material: Stainless steel 304 or 316L
Surface finish: Mirror polished Ra<0.2um or Electro polished
Module diameter: 8" or 12" or 16"
Nozzles's connection type: Tri Clamp
Including Pressure gauge connection, vent connection, drain connection
The consturction could be custom made according to different module type
Operating Parameters
Max Operate pressure: 150 psi
Max Operate temperature: 250F
Applications
Wine
Food &Beverage
Process Water
Pharmaceutical Liquids
Biotechnology & Laboratory
Medical &Medical Device
Chemical And Painting
|
Item |
A
MM |
B
MM |
C
MM |
D
MM |
E
MM |
F
mm |
|
ZTDX-08DB1 |
890 |
470 |
350 |
280 |
250 |
300 |
|
ZTDX-08DB2 |
1160 |
740 |
620 |
280 |
250 |
300 |
|
ZTDX-08DB3 |
1460 |
1010 |
890 |
280 |
250 |
300 |
|
ZTDX-08DB4 |
1700 |
1280 |
1160 |
280 |
250 |
300 |
|
ZTDX-12DB1 |
930 |
510 |
350 |
280 |
350 |
400 |
|
ZTDX-12DB2 |
1200 |
780 |
620 |
280 |
350 |
400 |
|
ZTDX-12DB3 |
1470 |
1050 |
890 |
280 |
350 |
400 |
|
ZTDX-12DB4 |
1740 |
1320 |
1160 |
280 |
350 |
400 |
|
ZTDX-16DB1 |
950 |
530 |
350 |
280 |
450 |
500 |
|
ZTDX-16DB2 |
1220 |
800 |
620 |
280 |
450 |
500 |
|
ZTDX-16DB3 |
1490 |
1070 |
890 |
280 |
450 |
500 |
|
ZTDX-16DB4 |
1760 |
1340 |
1160 |
280 |
450 |
500 |
Jhen Ten carries on traditional Japanese production skills and latest Japanese industrial technology to produce filtration products and all kinds process machinery. In addition to the introduction of new manufacturing methods and the purchase of advanced welding equipment, we are also dedicated to researching the improvement of quality, function and usage life of our products.
We have been meeting global demand of high quality &technical support to our clients. Our products cover from all kinds sanitary filter, cartridge filter, bag filter, mixing tank, storage tank etc, which have been applied into fields of pharmacy, food & beverage, biological engineering, lab solution laboratories, Mineral water, liquor and cosmetics.
No matter the functions, data presentation, material use, welding techniques, QC, or the look of our products have gone through careful design and are strictly comply with ISO9001 and CE standard system. Besides We have obtained the sanitary license and honour of high quality&honesty from authority
