Product Specifications
| Prod Model: |
VA 0.8T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Gl |
| Deliverly Date: |
10-20days |
| MOQ: |
15pieces |
| Warannty: |
12months |
| Application: |
Small Crane |
| Power Source: |
Lever |
| Sling Type: |
Chain |
| Certification: |
ISO9001:2000 |
Product Description
A lever hoist is a manual device used to lift, lower, or pull a load and to apply or release tension. It utilizes a ratchet and pawl mechanical configuration to incrementally raise or lower a load or to apply or release tension.
Lever hoists and pullers have the advantage of being easy to transport, require minimum set-up, and are a practical option in confined spaces. They are suitable for different applications ranging from heavy-duty construction work to day-to-day maintenance and repair jobs.
GOL, an ISO 9001 certifiedLifting Equipment Engineers Association), specializes in the field of lifting & hoisting equipment, webbing and round sling, Ratchet Tie Down and lashing equipment, chain & chain sling, wire rope and wire rope sling, material handling, rigging hardware & other products.

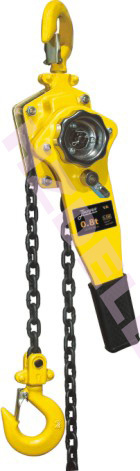

The lever block capacity load is 0.8t, it can be use for small space, for example, miners, house lifting and etc. Especially the lever round adopt the rotation gear, it can be stop slide. Made it safer than other lever block
| model | VA-0.75A | VA-1.5A | VA-3A | VA-6A | VA-9A |
|
| capacity | 0.75 | 1.5 | 3 | 6 | 9 |
|
| standard lift(m) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
|
| running test load(t) | 12 | 24 | 45 | 94.5 | 118.8 |
|
| effort required to lift max.load(N) | 140 | 220 | 320 | 340 | 360 |
|
| strands of load chain | 1 | 1 | 1 | 2 | 3 |
|
| diameter of load chain | 6 | 8 | 10 | 10 | 10 |
|
| dimensions(mm) | 145 | 175 | 203 | 203 | 203 |
| 86 | 100 | 118 | 118 | 118 |
| 122 | 130 | 150 | 205 | 316 |
| 37 | 45 | 50 | 64 | 85 |
| 320 | 380 | 480 | 620 | 700 |
| 280 | 410 | 410 | 410 | 410 |
| 30 | 36 | 40 | 50 | 58 |
| N/W(KG) | 7 | 11 | 21 | 31 | 47 |
| packing measurement(LXWXH)(cm) | 36x12.5x16 | 50x13.5x19 | 54x17x21.5 | 54x18x21.5 | 82x32x21.5 |
| extra weight per meter of extra lift(kg) | 0.8 | 1.4 | 2.2 | 4.4 | 6.6 |
