Function and Application

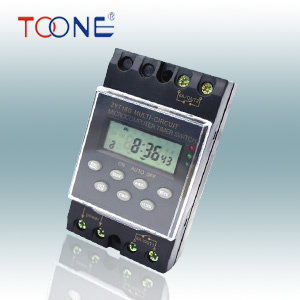

This product can automatically switch on and switch off the power supply of various electrical equipments according to the fixed time. It is widely used in all electrical equipments and household appliances where needs to be controlled. Such as street lamps, neon lights, advertisement board lights, production equipments, broadcasting & TV equipments and so on.
Technical specification
Rated working voltage: AC220V/50Hz
Timing error: < ± 2 s/day
Voltage scope: 85%~110%
Ambient temperature: -10~50
Capacitance load: Resistance 8A/circuit
Relative Humidity: < 95%
Consumed power: < 5VA
Installation type: Guide rail / wall hanging
Timing range: 1 minute~168 hours
Dimension: 120× 72× 50mm
Programmable number: 16 sets
Weight: 210g
Maintenance
Do not use the timer switch on the equipments which will cause the accident to affect the safety of life or harm to society with misoperation, such as medical equipment and large equipment, etc.
When timer switch is used in equipments (large heater, or refrigerator, etc. ) which will cause great property damage with misoperation, make sure the features and performance values have adequate margin. If necessary, take 2-circuit security measure and etc.
Do not self-repair, decomposition or reconstruction the products. Please commit the repair, inspection work to the agency or the construction enterprises.
Do not touch the terminals after connect to the power.
Make it work under the environment where is isolated from moisture, corrosion and high content of metal gas. Do not make it contaminate with oil or water.
