Product Specifications
Product Description

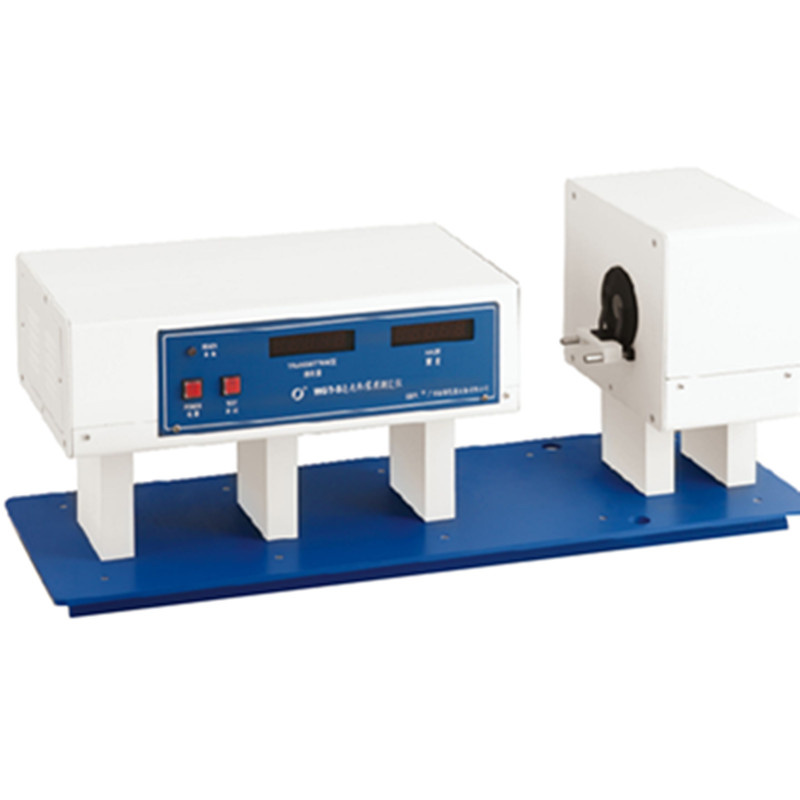

WGT-S Light Transmittance Rate and Haze Tester applies to all transparent and semi-transparent parallel plane samples (plastic plates, sheets, etc. ) light transmittance, haze test, liquid samples (water, drinks, etc. ) and determination of turbidity or clarity.
It is suitable for scientific research units, universities, plastic products, packaging films, coatings, printing ink and other industries.
Optical System: Collimation illumination, diffusion perspective, integrating sphere receiver mode
Sample Size: Entry window Ø 25mm, out the window of 21mm Source: C source (DC12V50W + color temperature tungsten halogen tablets) Receiver: Silicon photovoltaic cells + as function of the amendment, see sheet (line V (into) standard value)
Electronic System: LED digital display, BCD code serial output printing interface Automatic operating system, haze, light transmission rate automatically switch, calibration Computer data processing systems, multiple consecutive tests, with an average display
Specifications
Warm-up Time: 30min Accuracy: 1% light transmittance Haze H ≤ 0.5% range of 0.1%, H> 0.5% range 0.3%
Repeatability: 0.5% transmittance Haze H ≤ 0.5% range is 0.05%, H> 0.5% range is 0.1%
Measuring range: 0 ~ 100.0% light transmittance, haze 0 ~
Minimum reading: Transmittance rate of 0.1%, 0.01% haze
