Product Specifications
| Prod Model: |
ASPW-BNC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
Aspw |
| Type: |
Power Source Arrester |
| Structure: |
Valve Type Arrester |
| Installation: |
Tandem Arrester |
| Brand: |
Anson |
Product Description

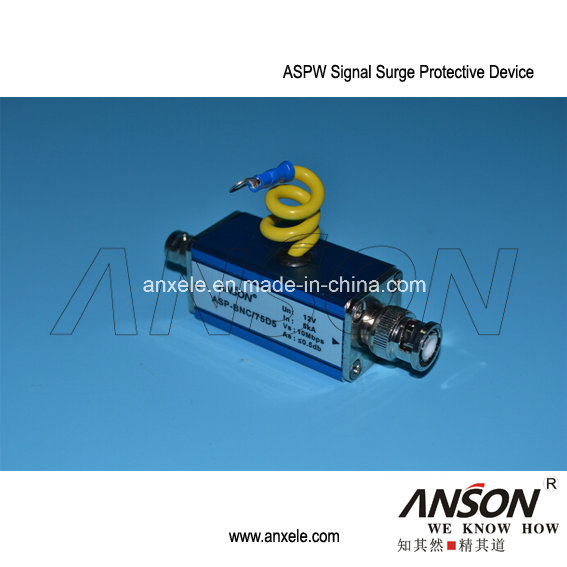

ASPW Series signal surge protective deviceASPW Series antenna surge protective device (in short: SPD, alias: surge protector, surge arrester) is suitable for satellite TV high frequency, satellite signal receiver, microwave machine station, the feed system of moving communication, which is to avoid the damage to the receiving equipment caused by over voltage offered inductance.

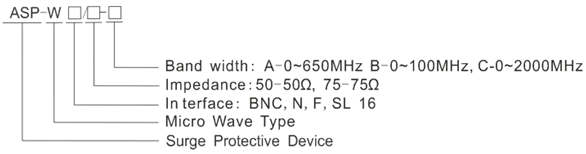

Model and Meaning
Product Features1. Large discharge capacity and could be repeated using by being lightning stroke.
2. Small stationary wave ratio, little insertion loses.
3. Convenient installation made by standard interface.
Main Technical Parameters
| Model | ASPW-BNC/75C | ASPW-BNC/50C | ASPW-N/50C | ASPW-BNC/75B | ASPW-N/50B | ASPW-SL 16/50A |
| Technical Parameters |
| Maximum Continuous Operating Voltage Uc(V~) | DC68V / AC130V / AC280V |
| Nominal Discharge Current In (8/20µs)kA | 10Ka(8/20µS) |
| Horse Power (W) | <300w |
| Interface | BNC/75 | BNC/50 | N(L16) | N(L16) | F(FL10) | UHF(SL16) |
| Dynamic Residual Voltage | <600W |
| Band width(MHz) | 0-3000 | 0-3000 | 0-3000 | 0-3000 | 0-3000 | 0-650 |
| Stationary wave Ratio | ≤1.2 |
| Insertion Loss | ≤0.1 db |
| Impedance(Ω) | 75Ω | 50Ω | 75Ω | 50Ω |
| Remark | 1. Outer covering connectearthing
2. Interface according to your request K-J, J-J,K-K |
