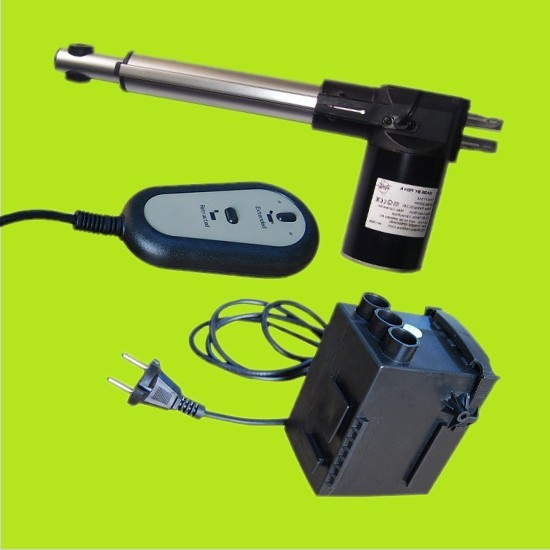

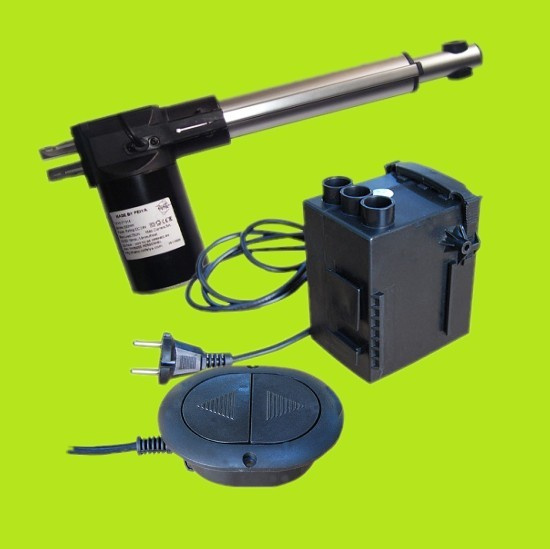

FY011 Mini Linear Actuator
1) Low noise linear actuator
2) Up to 6000N load
3) Strokes are on the request
4) Widely used in recliner sofa and chair and medical bed
Specifications of FY011 Linear Actuator
FY011 Linear Actuator specifications:
1) 12v or 24v DC motor
2) Thrust up to 6000N in push, and up to 4000 N in pull
3) Elegant and compact design with small instanllation dimensions
4) Built-in limit switches ( not adjustable after leaving factory )
5) Aluminium or zinc outer tube / inner tube
6) Steel back fixture
7) Standard protection class
8) Noise level < 50 db
9) Warranty: Two years
10) Duty cycle: 10%, or 2 munutes continous working followed by 18 minutes not in use
High quality of electric linear actuator to worldwide customers. We are professional amnufacturer in Electric Linear Actuator and Electric Linear Motor. Electric linear actuator is widely used in Adjustable beds, Medical beds, Wheel chairs, Patient hoists, Table height adjustments, Industry mechanical instruments, furniture, home beds, office tables, massage equipment, sporting equipments and so on and so on. Specification of OurElectric linear actuator:Max. Thrust: 4000N, 6000N, 8000NVoltage:24VDC or 12VDC, Motor DriveStandard stroke: 100 / 150 / 200 / 250 / 300 / 350 / 400 mm, special stroke areavailable according to customer' requirement.Duty cycle:10%Ambient temperature -26°C to +65°CStandard protection class:IP 43Built-in integral limit switch, not adjustable after leaving factoryLow noise design, dB<48(A); The inspection method is in accordance with DS/EN ISO3746 while linear actuator is unloaded. Overload protection CE Certificated Availability in Black, White and Gray housing Quality GuaranteeWe provide 1 year warranty for JDR Linear Actuators.We provide spare parts free or replace a new one on condition that there is any breakdown with convincing evidence.Maintenance serviceNo matter what brands of your linear actuators, no matter where your linear actuators are from, full way service and technical Support could be supplied by JDR. JDR QC TeamJDR QC team consists of more than 10 professional people to ensure 100% products high quality. Contact UsWe highly appreciate your any enquiry by email, by fax or by Instant message.We will reply your email or fax within 18 hours.Please feel free to call us at any time if there is any question. TransportationAll available shipping ways could be applied, by courier, by air or by sea.Appointed shipping company or our own forwarders all could be used in shipment.Full-way tracking the cargos for you before the goods arrive. We have a wide range of Linear Actuator and Linear Motor for worldwide customer.
|
Name |
Linear Actuat |
|
Mode |
FY011 |
|
Input Voltage |
12V or 24V |
|
Max Load Capacity |
6000N(4mm/s) |
|
Max Speed |
30mm/s(750N) |
|
Stroke |
0~800mm |
|
Mini Install Dimension |
stroke+175mm |
|
Limit Switches |
Inner |
|
Type of Duty |
10% |
|
Operation Temperature |
-26~+65 |
|
Noise |
< 48db |
|
Protection Class |
IP43 |
|
Certification |
CE |
|
Applications |
Furniture, Medical bed |
Wuxi JDR Automation Equipment Co., Ltd, established in 2008, . Is a professional manufacturer and trading unit integrating the research, production and marketing of DC linear actuator. JDR's predecessor is Wuxi Feiya Electronical Equipment Co., Ltd, which was established in 2004.
Our company owns several automatic production lines and enough experience in the production and research of linear actuators and controllers. Our products are popularized in many occasions when need to be implemented with rectilinear motion such as electrical nursing beds, operational beds, traction beds, massage chairs, dental chairs, electrical sofas and show-cases. These products can adjust heights, move between front and behind, as well as angle change, which take the place of gas springs as well as AC decelerators.
Dreams drive science, technology creates life. Based on domestic market and aiming at overseas market, JDR has gradually started to establish perfect marketing net both at home and abroad.
"Quality First, Customer Paramount" is our established guidelines. "Based on honesty, providing high quality products and innovative service, striving after perfection" is our management concept.
With over 80 people's efforts, JDR is becoming better and better. We have sound management system and very low stuff turnover, and every department cooperate greatly.
Now, we have successful foreign trading experience in South Europe, West Europe, North Europe, North America, South America, Middle East and Southeast Asia.
We, Wuxi JDR, sincerely welcome your advices, suggestions and inquiries.
