Product Specifications
| Prod Model: |
1500B/H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
1500 Bottles Per Hour |
| Control System: |
PLC Mitsubishi |
| Bottle Type: |
Glass Bottle |
| Bottle Volume: |
200ml to 2500ml Adjustable |
| Beverage Drinks: |
Pure/Mineral Water |
| Exchange Parts For Different Bottles: |
Provided. |
| Machines Main Material: |
Stainless Steel 304 Food Grade |
| Capacity Base On 500ml Bottle: |
1500bph(Max 2000bph) |
| Voltage: |
Be Designed by Customer Requests |
| Certificate: |
SGS, CE, ISO. |
| Type: |
Volumetric Filling Machine |
| Automatic Grade: |
Fully Automatic |
| Material Type: |
Liquid |
| Filling Valve Head: |
Multi-Head |
| Feed Cylinder Structure: |
Multi-Room Feeding |
| Filling Principle: |
Negative Pressure |
| Packaging Container Lifting Structure: |
Chute Pneumatic Combination Lifting |
| Structure: |
Linear |
| Packaging Type: |
Bottle |
| Packaging Material: |
Plastic |
| Dosing Device: |
Volume Pressure |
Product Description
Linear Type Vodka Wine Bottling Filling Machine

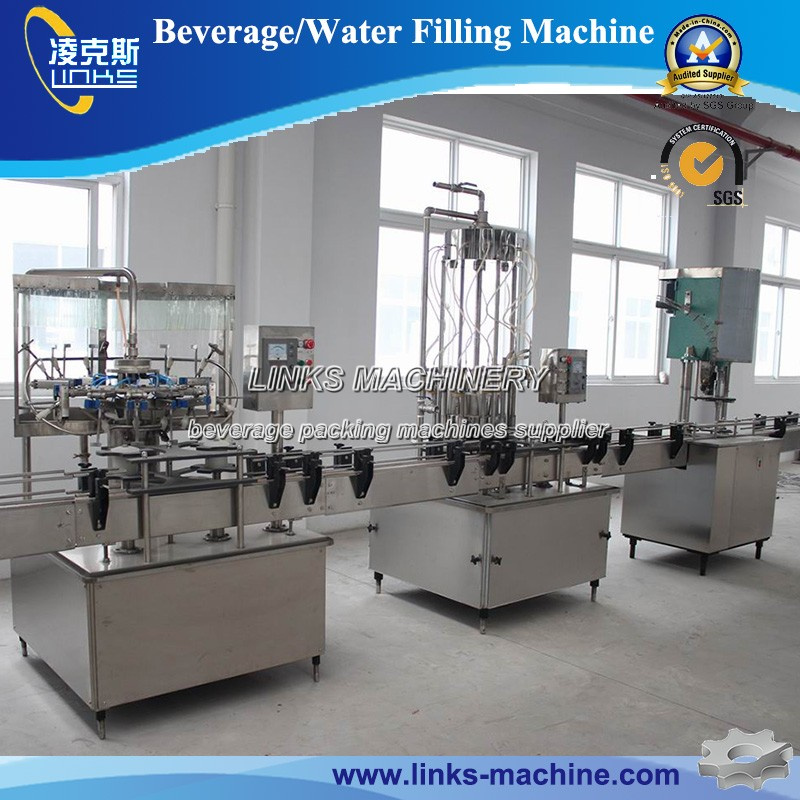

This Filling Line, Including 4 Parts:
1/ Water Bottle Rinsing Machine.
2/ Vodka Wine Bottling Filling Machine
3/ Bottle Capping Machine
4/ Conveyor System

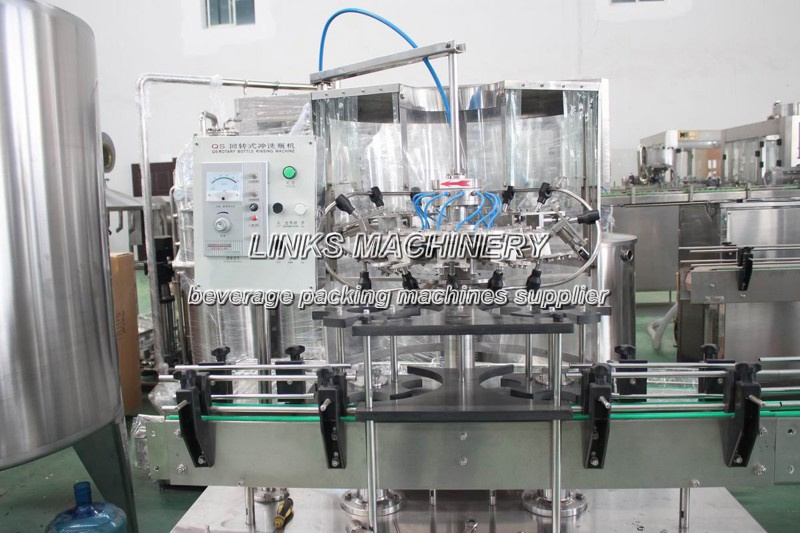

The Rinsing machine is to use pure water to washing the empty bottle.
The Bottling machine is to fill the vodka or Wine into the bottle on a right level.

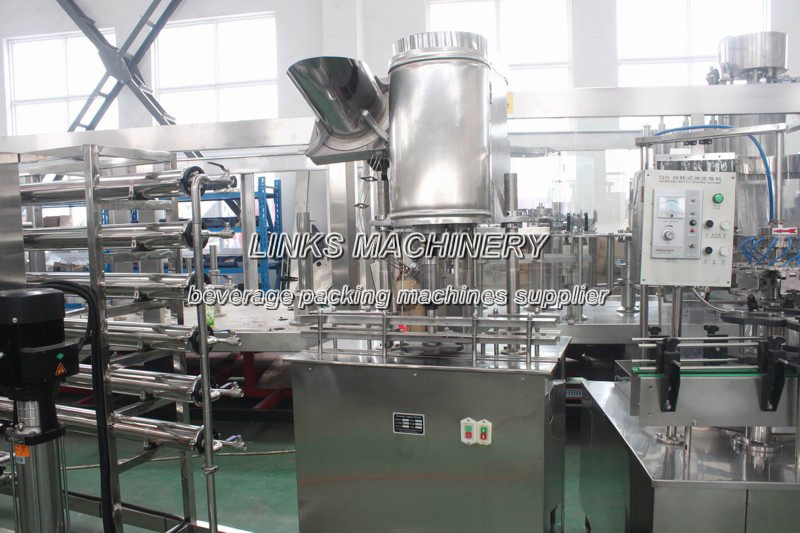

The Bottle capping machine is to screw/press/seal the cap.
Include the 6 meters flat conveyor to connect each machine.
All the parts which touch the liquid choose the stainless steel 304, to avoid polluting the liquid.
The machines are very easy learning and operation, can fill bottles from 100ml to 2500ml by changing the exchange parts on the machine.
Has speed control system, can adjust the filling line speed simply.
Washing Machine 12 heads; Filling Machine 12 heads; Capping Heads 1 head
| Item | Description | Unit | Rinsing Machine |
| 1 | Power | KW | 0.75kw |
| 2 | Main material : | / | Stainless steel 304 |
| 3 | Production capacity | B/hour | 1500bottle/hour 500ml bottle |
| 4 | Bottle diameter range(adjustable) | / | dia 60-110mm |
| 5 | bottle height(adjustable) | mm | 140-380mm |
| 6 | Motor | / | Siemens brand |
| 7 | Controller ways | / | Electromagnetic speed regulating |
| 7 | Speed reducer | / | Made-in-china |
| 8 | Dimension | mm | 1200×1100×2100mm |
| 9 | Weight | kgs | 1000 |
| Item | Description | Unit | Filling Machine |
| 1 | Power | KW | 1.1 |
| 2 | Main material : | / | Stainless steel 304 |
| 3 | Production capacity | B/hour | 1500bottle/hour 500ml |
| 4 | Bottle diameter range (adjustable) | / | dia 60-110mm |
| 5 | bottle height(adjustable) | mm | 140-380mm |
| 6 | Filling temperature |
| 5-90 |
| 7 | Bottle |
| Glass Bottle |
| 8 | Motor | / | Siemens brand |
| 9 | Controller ways | / | Electromagnetic speed regulating |
| 10 | Speed reducer | / | Made in china ,best brand |
| 11 | Dimension | mm | 1200×1100×2100mm |
| 12 | Weight |
| 1000kg |
| Item | Description | Unit | Capping Machine |
| 1 | Power | KW | 0.55 |
| 2 | Main material : | / | Stainless steel 304 |
| 3 | Production capacity | B/hour | 1500bottle/hour |
| 4 | Bottle diameter range (adjustable) | / | dia 60-110mm |
| 5 | bottle height (adjustable) | mm | 140-380mm |
| 6 | Motor | / | Siemens brand |
| 7 | Dimension | mm | 940×650×2000mm |
| 8 | Weight |
| 400kg |
