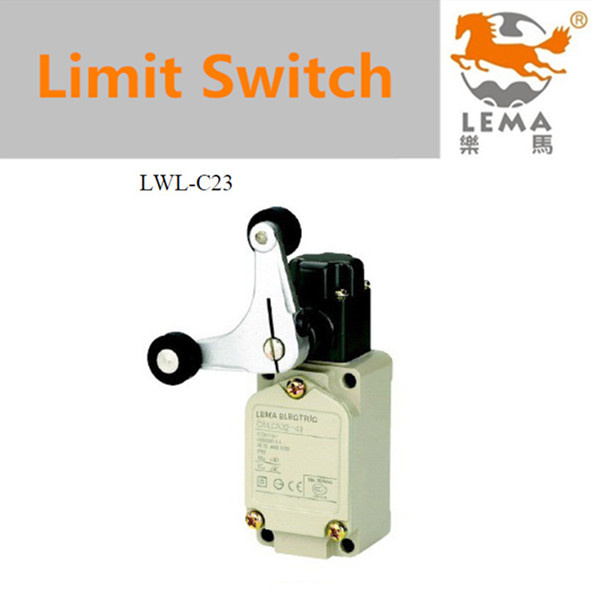

Long life two circuit WL-C23 limit switch
Features:
1. Rating: 10A, 125/250VAC
2. Double circuit switch, widely used
3. Aluminate alloy case, high mechanical strength
4. Dust, water and oil proof structure design
5. Various actuators for different environment use
Application field:
1. Machine tool equipment
2. Injection molding machine
3. Packing machinery
4. Transfer handling machinery
5. Food and beverage equipment
6. Auto-warehouse system
7. Automated machine
Rating |
10A 125,250VAC |
Initial contact resistance |
25mΩ max. |
|
25mΩ |
Initial insulation resistance |
100 mΩ Min. (At 500V DC) |
|
100 mΩ (500V DC) |
Dielectric strength |
Between non-consecutive terminals |
1,000Vrms , 50/60Hz , 1 min |
|
|
1,000Vrms , 50/60Hz ,1 |
Between non-current carrying metal parts and each terminal |
2,200Vrms, 50/60Hz,1 min |
|
2,200Vrms, 50/60Hz ,1 |
Between ground and each terminal |
2,200Vrms , 50/60Hz ,1 min |
|
2,200Vrms , 50/60Hz ,1 |
Shock resistance |
Mechanical durable |
1000m/s2 {100G,S} max. |
|
|
1000m/s2 {100G,S} |
Malfunction |
300m/s2{30G,S} max. |
|
300m/s2{30G,S} |
Vibration resistance |
10-55Hz , 1.5mm double amplitude |
|
10-55Hz , 1.5mm |
Expected life |
Mechanical |
15,000,000 Min. |
|
|
15,000,000 |
Electrical |
750,000 Min. |
|
750,000 |
Ambient temperature |
–10 to +80°C |
Ambient humidity |
35% to 95%RH |
Operating frequency |
Mechanical |
120 times/min. |
|
|
120 / |
Electrical |
30 times/min. |
|
30 / |
Operation speed |
0.1-100cm/s |
Protection degree |
IP65 |
