Product Specifications
| Prod Model: |
HS1L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
DC 4.5V |
| Battery: |
AAA*3 |
| Lighting Modes: |
High-MID-Low-off-S.O.S. / Red |
| Light Source: |
CREE Xm-L T6 Cool White |
| Switch Type: |
Press-Button |
| Battery Pack Dimension: |
D28*87mm |
| Lamp Dimension: |
D31*95mm |
| Product Weight: |
192g(W/O Battery) |
| Waterproof: |
Ipx-8 |
| Application: |
Camping/Hiking/Trekking/Climbing/Fishing |
| Feature: |
Seperated Battery Pack |
| Certification: |
RoHS |
| Usage: |
Fishing |
| Warranty: |
3 Years |
| LED Chips Brand: |
CREE |
| Battery Type: |
Lithium Ion |
| Irradiation Distance: |
200-300m |
| Lighting Time (',Hours): |
>12 |
| Material: |
Aluminum Alloy |
Product Description

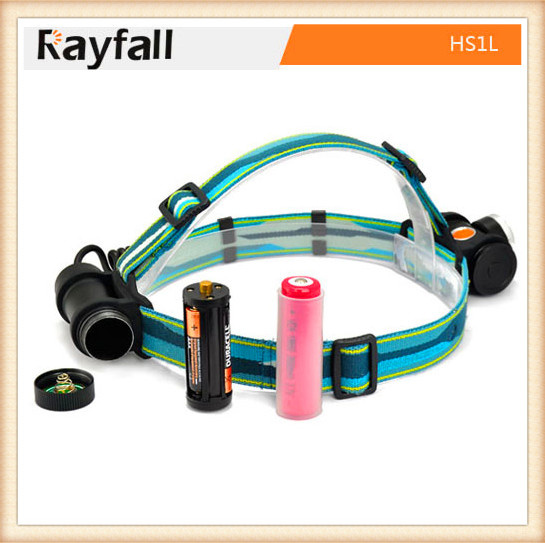

Rayfall Hot Sale Headlingt HS1L New Cree Led Lenser Headlamp,led headlight
Detailed description
Advantages
Rayfall® Classic Headlamp keeps the hands free while needed.
Much Lighter on weight for comfortable donning and portable carriage.
Constant lighting guaranteeing stable lighting to avoid diminishing during the entire chosen burn time.
CREE LED light source Maximum brightness: 550lumens.
Several lighting modes available adapt to each situation:
- High (Max Power: power prioritized)
- Mid (Standard: power/burn time balance)
- Low (Max Autonomy: burn time prioritized)
- S.O.S (Strobe mode for signaling one's presence, accessible at any time)
- Red lighting for discreet close range vision and night vision
Easy to use
- Press-button is easy to use for modes switching, even with gloves on.
- Adjustable elastic headband with buckle is easy to use and provide excellent support during dynamic activities.
- Headband washable.
- Case open easily while battery replacement.
Specification
1. working volt:DC 4.5V
2. battery: 3.7V2600mAh 18650 rechargeable battery*1or AAA battery *3
3. Constant current circuit
4. LED: XM-L T6 cool white LED
5. Impact resistance:1.5m
6. waterproof: IPX6
7. size:lamp holder-Φ31x60mm,battery case-Φ28x87mm
8. weight:192g(w/o battery);
9. button switch: high-mid-low-SOS-OFF
| Mode | output
(Lumen) | intensity
(cd) | distance
(m) | standard runtime
(hrs) |
| high | 550 | 4810 | 180 | 10 |
| med | 220 | 1790 | 135 | 20 |
| low | 22 | 190 | 45 | 55 |
| Flashing | 55 | NA | NA | NA |
Rayfall HS1L LED Headlight Accessories
Accessories
1. elastic belt*1
2. adjustable clasp*3
3. 18650battery case*1
4. 3.7V2600mAh 18650rechargeable battery*1 or AAA battery*3(optional)
Caution
1. Please protect the lens and lamp body from Scratching.
2. If the headlamp has been OFF for a long time please take out the battery.
Package
1.Standard Exporting Packaging.
2.Each in a gift box, 18 gift boxes in an Inner box, and then 2 inner boxes in an outer Carton.
3.Total 36pcs of Headlamps loaded in an outer Carton.
4.Carton Size: 415*355*395mm, G.W.: 10.84kg.
References
*Color: Black
*Accessories
- 1*18650 Li-Ion battery (optional)
- Components for head support
- Battery holder
*Guarantee: Lamp 3 years.
*Certification(s) : CE/RoHS
