Product Specifications
| Prod Model: |
HN-540 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Transmission Distance: |
Air to Surface 5~10km |
| Radio Frequency: |
2405~2470MHz |
| Bandwidth: |
4/8MHz |
| Interface: |
Standard RS-232&RS-485 + RJ45 |
| Features: |
Support Transparent Ptp&Pmd Network Technology |
| Decryption: |
128 Bit AES(or Choose 256 Bit AES) |
Product Description

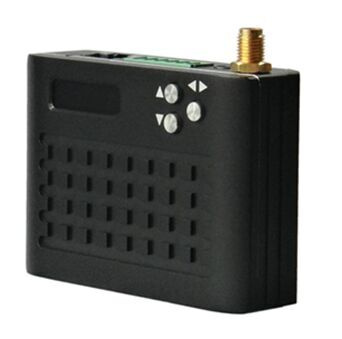

HN-540 TDD_COFDM is our new mini pure digital wireless transmission equipment, the use of advanced processing technology and the leading time of COFDM modulation technology, providing two-way encryption ( AES_256 encryption ) the integrity of the network data transmission channel, the perfect realization of real-time, anti multipath, high-speed mobile data, voice, image transmission ! The product has the advantages of small volume, light weight, especially for the application of UAV, High-speed Rail, car and other complex environments.
Product features:
Provide up to 12Mbps of data flow, dynamic adaptive rate allocation technology
Support transparent PTP&PMD network technology
Support for non line of sight ( NLOS ) high-speed mobile transmission
Provide standard RS-232&RS-485 + RJ45
Support Industrial application high standards
The small volume, light weight, easy to carry, the radiating aluminum casing
High clear OLED digital display, the interface simple and easy operation
Technical parameters:
| Model | HN-540 |
| Voltage | DC 7-17V |
| Power dissipation | 6W |
| Ethernet | 10/100 BaseT,Auto-MDI/X,IEEE 802.3 |
| TCP,UDP,TCP/IP,TFTP,ARP,ICMP,DHCP,HTTP,SNMP,FTP,DNS |
| Radio frequency | 2405-2470MHz,Step 1MHz adjustable (can be customized for other frequency) |
| Output power | 30dBm |
| Bandwidth | 4MHz/8MHz |
| Decryption | 128 bit AES(or choose 256 bit AES) |
| Correction mechanism | 32 bit of CRC,ARQ |
| Modulation | TDD_COFDM,Time division duplex mode |
| Parameter control | By adjusting the parameters of OLCD control panel |
| Working temperature | -40ºC ~ 85ºC |
| Dimensions | 75m*51mm*22mm |
| Weight | 120g |
Shenzhen Huanuo Innovate Technology Co., Ltd. is a high-tech company focusing on research and production of wireless mobile digital video transmission. And provide users with integrated COFDM wireless video transmission systems and technical support services.
Since the establishment of the company, we adhere to market-oriented, building the network and technology platform. We base ourselves on the construction of innovative high-tech company, the company has a professional research team with RF technology and MPEG2/MPEG4/H. 264 code, digital video processing, embedded equipment fields. Our company is focused on the development of wireless video transmission equipment, consulting, sales.
Enginees and tech developers account for 70 % of the staff, after research development and technology accumulation for years our company has grasped core technologies in RF field. Transmitteras for professional users, our equiment integrate NOFDM\BOFDM\digital cryptography\full-band adjustable continuously(100-2500 MHz)\adaptive Multi-rate Wideband(2/2.5/4/8 MHz)\streaming adaptive and etc. All in all, our product is pioneer in COFDM industry and enjoy good reputation. The HD video transmission system using the current leading of COFDM and TDS-OFDM modulation technique.
In 2008 the company has launched the 2/2.5/4/8 MHz coded modulation board and backpack wireless video transmission equipment, vehicle- mounted wireless video transmission equipment etc.
In 2010 the company has launched news products of digital relay image transmission equipment, it can make receive or transmit real-time lossless COFDM vedio signal, this approach can solution extend the transmission distance, at the same time, the company has launched the new products of Full-deplex COFDM IP equipment. In fast-moving condition, a single cable can easily transmit and receive vedio and audio signal in high quality. It makes fast-moving video conference come true.
Our company`s new product will better support COFDM + H. 264 HD 1080P in fast-moving condition, it will give customers bring shocking video effects and real-time reproduction scene picture.
