Product Introduction
| Features | Technical Parameters | Accessories | Packing information |
|

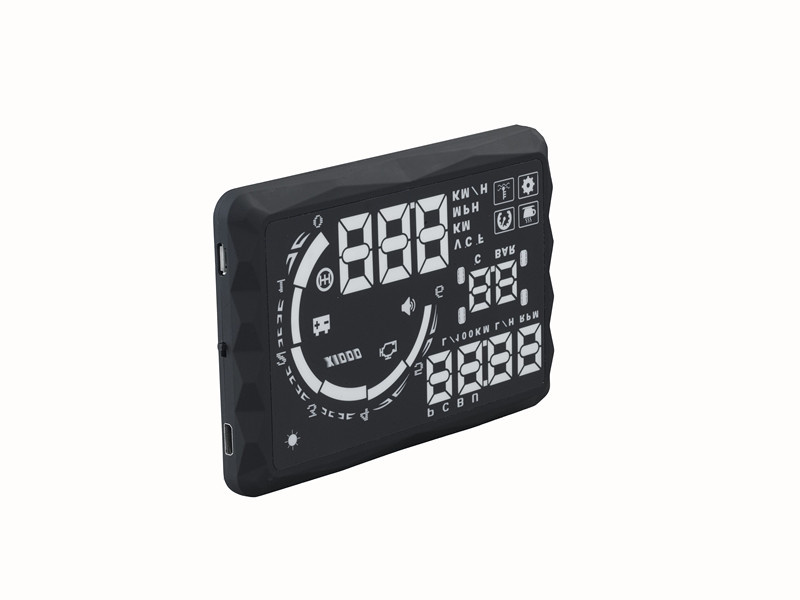

* 5.5" screen
* Plug and play
* Apply to : cars with OBD II interface
* Auto on and off
* with tire pressure decting function .
* with vehicle speed ,engine speed ,
instant fuel consumption dispaly dispaly
* Freely switch. Km and mile can be switched
freely to meet the need of inch auto meter.
* Automatic brightness adjustment mode,
bright in day time and not dazzling in night time.
* after key off , mileage of this driving and 100KM AVG
fuel consumption is showed on the displayed | Display information: vehicle speed,
Engine failure,Engine speed, Engine icon,
Fuel consumption,Fuel consumption per hour,
Light sensor,Fuel consumption per 100km,
Voltage,Water Temperature,Ignition angle,Acceleration,

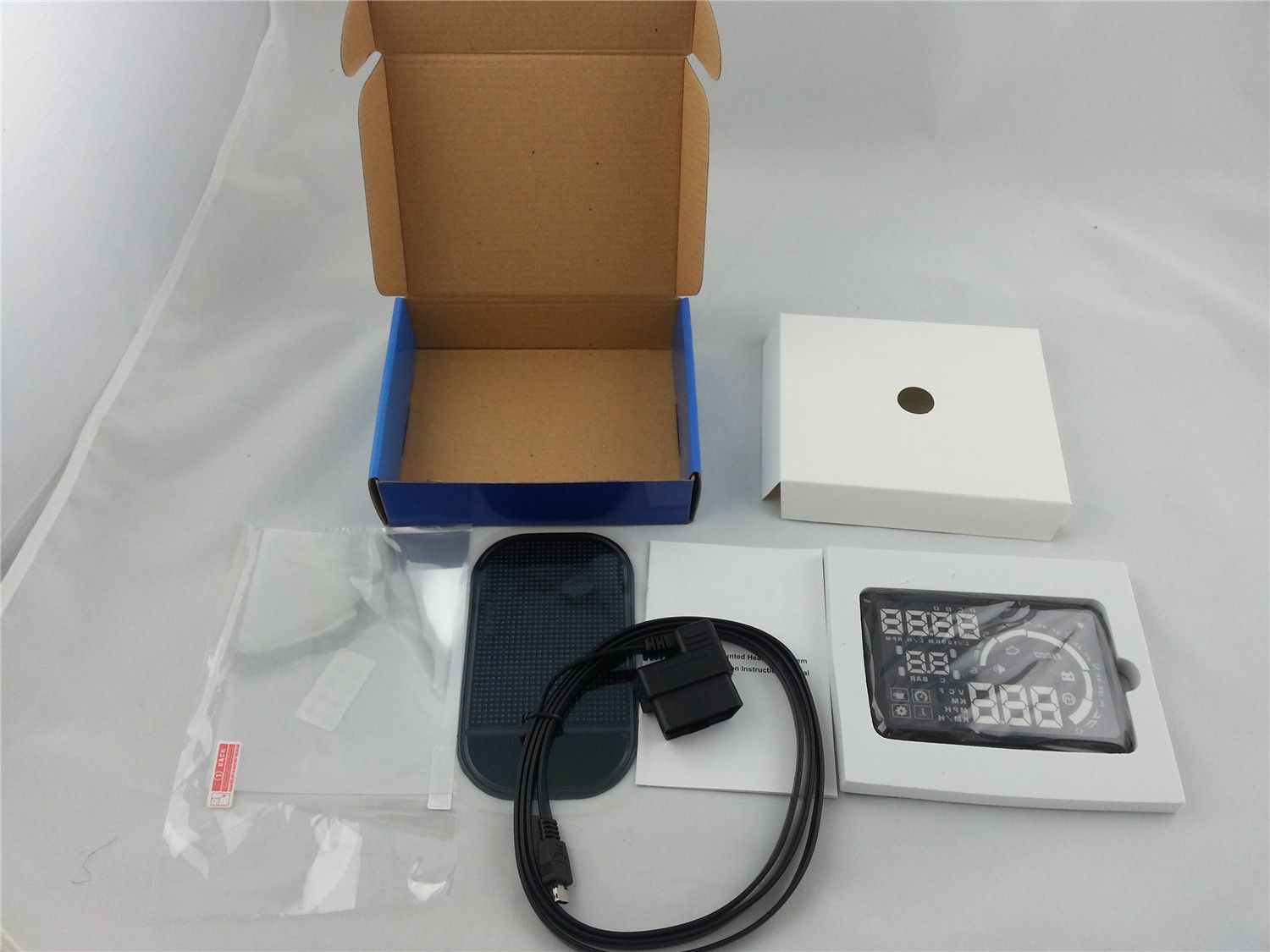

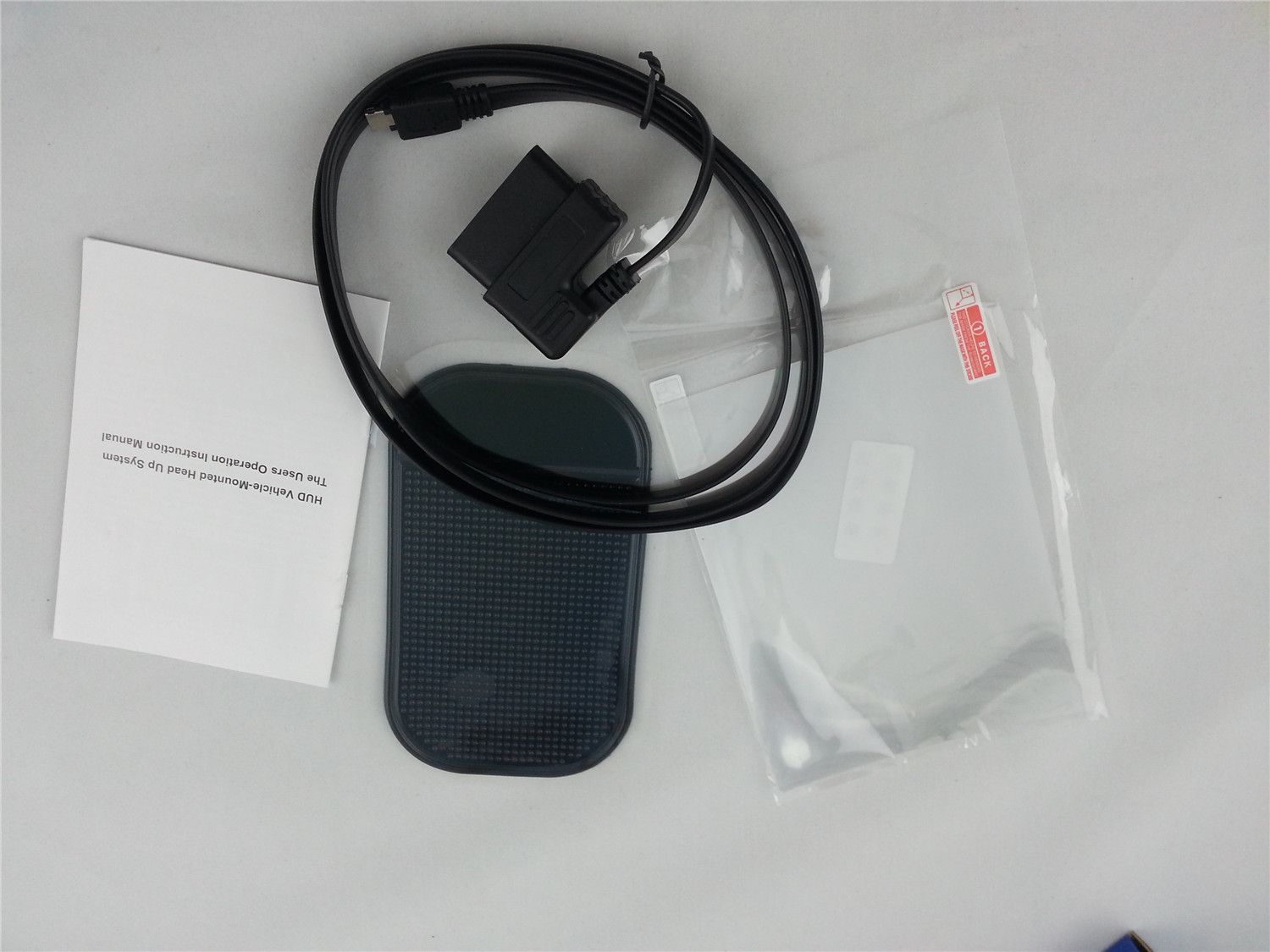

Seconds,Mileage,Reel per minute,Kilometer per hour,Mile per hour | ODB data line, reflection film,
host fixed pad, User Manual
| Product size:120*80*10mm |
|
| Display alarm: Speed alarm,Water temperature alarm, long-driving remind alram , low voltage alarm , high/low tire pressure alarm | Product weight: 79g |
Environment Temperature:-40c-+80c at atmospheric pressure 86-106KPa
|
| Alarm Sound Level:>>=30db | Color box size:168*130*45mm |
| Working Voltage:9v~16vdc(12vdc/400mA) |
Thanks for purchasing our Automotive Head Up Display, which is abbreviated to HUD, short for Head Up Display, with the meaning of "Look-up display device", or "look-at-the-front-horizontally display device". When driving at a high speed, especially at night, the driver may look down at the instrument panel, which may cause accidents if urgent situation occurs right away and there is no time to take some effective measures. To prevent this situation from occurring, some high-end vehicles are equipped with head up display (HUD) system, which can project important information (e.g. vehicle speed) onto the front windshield at the eye level of the driver. Besides, the display location and brightness can be adjusted through automatic induction, which makes it possible that the driver may not have to look down at the instrument panel and shorten the time of visual dead zone forward. This can avoid breaking rules and regulations due to speeding in many speed-limited sections. What's more important, it can enable the driver to read the data instantly without shifting his view, which is of vital value in reducing traffic accidents caused by absent-mind due to looking down.
This is a multi-functional HUD product which is developed based on OBDII interface and has good cost-performance ratio. It is designed by adopting the latest integrated circuit with stable performance and has a beautiful and elegant appearance. The installation and adjustment test can be finished within 3 minutes by using an easier and safer installation method.
