Product Specifications
| Prod Model: |
SKV |
| Markets: |
South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Q235B Carbon Steel Plate or as Client Requirement |
| Installation: |
Supplier Dispatch Engineer |
| Voltage: |
380 V Others |
| Power(W): |
5.5-110 Kw |
| Dimension(L*W*H): |
Different Model Different |
| Weight: |
6- 300 Ton |
| Certification: |
CE, ISO9001:2000 |
| Warranty: |
Two Years |
| Application: |
Construction,Metallurgical,Mining Industry etc |
| Drying Temperature: |
200-1000 Degree |
| Structure: |
Rotary Type Drier |
| Operational Method: |
Continuous |
| Operation Pressure: |
Atmospheric Dryer |
| Movement Way: |
Fixed |
| Heating Mode: |
Hot Air |
Product Description
Low drying temperature viansse dryer machine professioanl manufacuturer

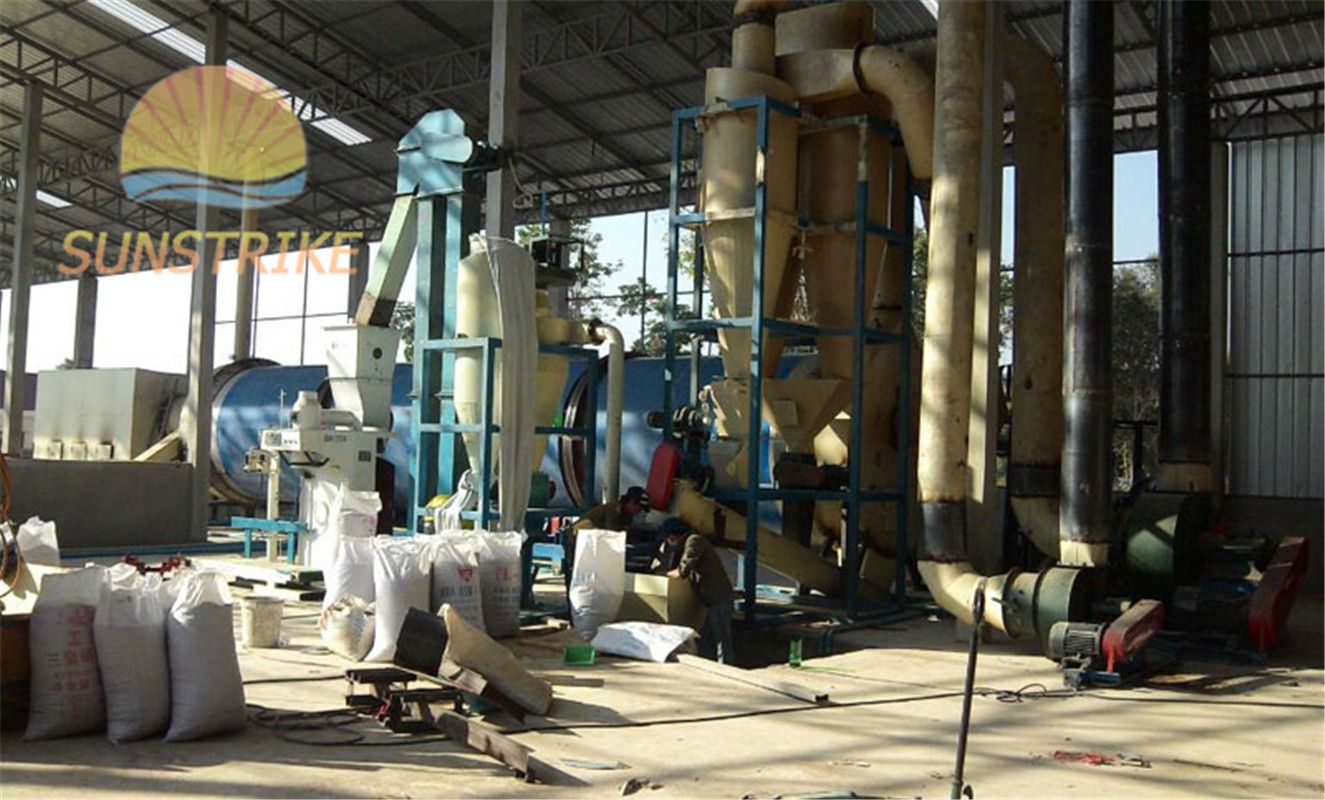

vinasse dryer is to use screw conveyor transports the wet vinasse of the continuous entering into the dryer.In the high speed transmission and dispersion of hot air,wet material moisture to evaporate quickly,when the moisture reach need and get drying vinasse, all the drying porcess finish. This vinasse drying system main included:
heating source,conveyor equipment,rotary dryer,dust catacher,fan, output conveyor equipment and other equipment.
vinasse dryer features:
1.our vinasse dryer with large intensity of drying,the material being lifted and fully
contact with hot air, this increase the drying efficiency.
2. The drying time is very short,and the drying moisture is can be control with need,
this vinasse dryer can be adjust with drying efficiency.
3.our new type vinasse dryer have a simple structre,small footprint,easy to operation and maintain.
4.our professioanl vinasse dryer have a large capacity,high drying efficiency,when
drying the out water can reach 60%.
Main technical parameters of viansse dryer machine:
| Model | Diameter
(m) | Length
(m) | speed
(r/min) | Installation obliquity
(%) | Drying temperature
(°c) | Capacity
(t/h) | Motor
(kw) | Weight
(ton)
|
| Φ0.8x8 | 0.8
| 8 | 3-6 | 3-5% | ≥800 | 0.6-0.8 | 3 | 3.5 |
| Φ1.0x10 | 1.0
| 10 | 3-6 | 3-5% | ≥800 | 1-1.5 | 4 | 7 |
| Φ1.0x12 | 1.0
| 12 | 3-6 | 3-5% | ≥800 | 1.5-1.8 | 4 | 8 |
| Φ1.0x15 | 1.0
| 15 | 3-6 | 3-5% | ≥800 | 1.5-2 | 5.5 | 10 |
| Φ1.2x10 | 1.2
| 10 | 3-6 | 3-5% | ≥800 | 1.8-2 | 7.5 | 14 |
| Φ1.2x12 | 1.2
| 12 | 3-6 | 3-5% | ≥800 | 2-3 | 11 | 15 |
| Φ1.2x15 | 1.2
| 15 | 3-6 | 3-5% | ≥800 | 2.5-3 | 11 | 18 |
| Φ1.5x15 | 1.5
| 15 | 3-6 | 3-5% | ≥800 | 3-3.5 | 15 | 20 |
| Φ1.5x18 | 1.5
| 18 | 3-6 | 3-5% | ≥800 | 3.5-4 | 15 | 23.5 |
| Φ1.5x20 | 1.5
| 20 | 3-6 | 3-5% | ≥800 | 4.0-4.5 | 15 | 25 |
| Φ1.8x15 | 1.8
| 15 | 3-6 | 3-5% | ≥800 | 4.5-5.0 | 18,5 | 28 |
| Φ1.8x18 | 1.8
| 18 | 3-6 | 3-5% | ≥800 | 5.0-5.5 | 18.5 | 30 |
| Φ1.8x20 | 1.8
| 20 | 3-6 | 3-5% | ≥800 | 5.5 | 18.5 | 33 |
| Φ2.0x15 | 2.0
| 15 | 3-6 | 3-5% | ≥800 | 5.5-6 | 18.5 | 35 |
| Φ2.0x18 | 2.0
| 18 | 3-6 | 3-5% | ≥800 | 6-6.5 | 18.5 | 42 |
| Φ2.0x20 | 2.0
| 20 | 3-6 | 3-5% | ≥800 | 6.5-6.8 | 18.5 | 50 |
| Φ2.2x20 | 2.2
| 20 | 3-6 | 3-5% | ≥800 | 6.5-7.0 | 22 | 56 |
| Φ2.2x22 | 2.2
| 22 | 3-6 | 3-5% | ≥800 | 7.0-7.5 | 22 | 58 |
| Φ2.4x20 | 2.4
| 20 | 3-6 | 3-5% | ≥800 | 7.5-8 | 30 | 60 |
| Φ2.5x20 | 2.5
| 20 | 3-5 | 3-5% | ≥800 | 8-9 | 30 | 63 |
| Φ2.5x25 | 2.5
| 25 | 3-5 | 3-5% | ≥800 | 10-11 | 37 | 68 |
| Φ2.6x20 | 2.6
| 20 | 3-5 | 3-5% | ≥800 | 9-10 | 37 | 65 |
| Φ2.6x25 | 2.6
| 25 | 3-5 | 3-5% | ≥800 | 11-12 | 37 | 73 |
| Φ2.6x30 | 2.6
| 30 | 3-5 | 3-5% | ≥800 | 15-18 | 45 | 80 |
| Φ2.8x20 | 2.8
| 20 | 3-5 | 3-5% | ≥800 | 13-15 | 45 | 75 |
| Φ2.8x22 | 2.8
| 22 | 3-5 | 3-5% | ≥800 | 15-16 | 45 | 78 |
| Φ2.8x30 | 2.8
| 30 | 3-5 | 3-5% | ≥800 | 18-20 | 55 | 83 |
| Φ3.0x20 | 3.0
| 20 | 3-5 | 3-5% | ≥800 | 18-20 | 55 | 78 |
| Φ3.0x22 | 3.0
| 22 | 3-5 | 3-5% | ≥800 | 20-25 | 55 | 80 |
| Φ3.0x30 | 3.0
| 30 | 3-5 | 3-5% | ≥800 | 25-28 | 75 | 90 |
