Product Specifications
Prod Model: |
OBM-9800 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Light Source: |
650nm Laser |
Power Voltage: |
5V |
Working Current: |
57mA |
Dimension: |
150mm×63mm×31mm |
Material: |
ABS + Silicone |
Battery: |
Rechargeable Lithium-Ion (3.7V,2800mAh) |
Working Time: |
8 Hours |
Standby: |
15 Days |
EMC: |
CE & FCC Doc Compliance |
Decode Rate: |
45±2 Scans / Second |
Type: |
Handheld Computer |
CPU Type: |
ARM |
Classification: |
Bar-code Scanner |
Applications: |
Industrial Grade PDA |
Memory Capacity: |
16MB |
OS: |
Obm |
Screen Size: |
2.8" |
Product Description

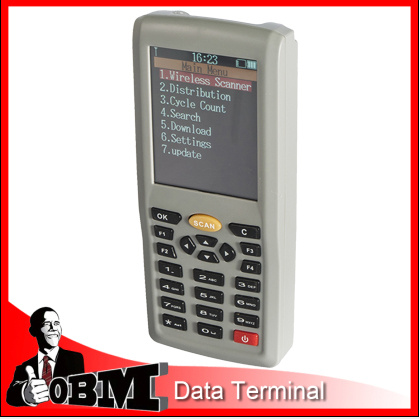

Low price Industrial Barocde Scanner Data Terminal Devices(OBM-9800)
Our most hot-selling laser barcode scanner with its excellent performance and attractive price at overseas market.
Read all of 1D/2D/RFID barcodes, with CE and ISO certificate.
One receiver corresponds to muti-handheld.
Features:
1.2.8" High Definition Color Screen, Graphical Menu.
2.2800mA Lithium-ion Battery: Ensures 10 hours continuous working time.
3. Industrial Memory Chips, Efficient and Accurate Decoding.
4.16M Memory: Data storage reaches more than 100, 000 pcs.
5. Compatiable with Win7, Win8.
6. Original MoLE Interface, Good Performance, Data Transmisssion Safty.
7. Could butt to all kinds of management software.
8. Supports download of item file, barcode scanned matches to the item automatically and displays on the screen immediately.
About us:
Founded in 2004, Easytech is a technology-driven company specialized in
The Auto-Identifica-tion (Barcode & RFID) industry. Products include
Wireless/Cordeless/Corded Laser Barcode Scanner, CCD Bar code Scanner,
Barcode Data Terminal, Stock Counter, Inventory Control Handheld, Mobile
POS, RFID Data Terminal and RFID Reader.
WHY CHOOSE US?
1) Factory Direct Selling: Ten years Solution Provider & Equipment Manufacturer(Mature Team).
2) Procudcts Function Innovated Yearly.
3) 1D/2D(QR Code)/RFID Optional.
4) Professional Research & Development Team &After-sale Technical Service.
5) Fast Delivery.
Light source |
650nm laser |
Bit error rate (BER) |
1/1 million |
Safety performance |
Meet the Grade II National Criteria for Laser Safety |
Scanning method |
automatic or manual |
Supported interfaces |
RS232, PC2 keyboard, USB |
Wireless Receiver |
433Mhz frequency |
Working Mode |
Real Time or Storage |
Barcode types |
EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codaber, Industoal 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, Chinese postcode etc. |
Use type |
Hand-held or bracket-held installation |
Resolution (pcs0.9) |
0.10mm(4mil) |
Depth of field |
10-420mm (pos09 density 0.25) |
decode rate |
100 times/second |
precision |
0.10-0.825mm |
scan width |
60mm at 30mm; 98mm at 100mm |
Reading angle
of elevation |
60 degree |
Power voltage |
5V |
Working current |
57mA |
Static current |
36mA |
Light intensity |
Daylight, 4000Lux max |
Operating temperature |
-20° C-45° C |
Storage temperature |
-20° C-45° C |
Operating humidity |
5%-85% |
Storage humidity |
5%-85% |
color size and weight |
23.5x17.5x7.5cm 0.56KG\color box |
carton size and Qty |
60x40x50cm , 32pcs/carton |
