Product Specifications
Prod Model: |
LW0001 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Working Pressure: |
15MPa |
Material: |
Metal |
Product Description
Filling CO2 0.7lb to 39.6lb,water volume 0.5liter to 30liter.
Aluminium alloy 6061,cylinder life-span over 15years.

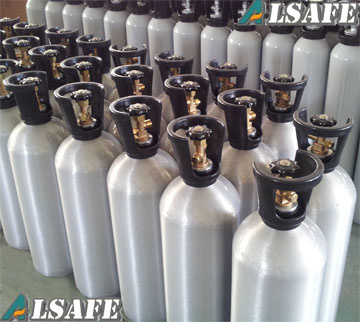

Low Temperature-Resistant CO2 Cylinder for Beverage Service:
* Advantage: Cylinders work well at low temperatures.
High standard for safety,Lightweight, corrosion-free.
* Application: Carbonated drinks and draft beer processing.
*Valve fitted: CGA320(Common),or upon customers' demand.
* Delivery time: 10 days to 30 days upon deposit.
No | Specification | Outer Diameter | Water | Length | Weight | Filling CO2 |
|
|
|
|
|
|
|
mm | in | Volume(L) | mm | kg | kg | lb |
1 | LW-89-0.5-15-H | 89 | 3.5 | 0.5 | 167 | 0.8 | 0.3 | 0.7 |
2 | LW-89-0.7-15-H | 89 | 3.5 | 0.7 | 207 | 1 | 0.42 | 0.9 |
3 | LW-89-1.0-15-H | 89 | 3.5 | 1 | 269 | 1.2 | 0.6 | 1.3 |
4 | LW-89-1.4-15-H | 89 | 3.5 | 1.4 | 345 | 1.4 | 0.84 | 1.9 |
5 | LW-108-0.7-15-H | 108 | 4.3 | 0.7 | 169 | 1.1 | 0.42 | 0.9 |
6 | LW-108-1.0-15-H | 108 | 4.3 | 1 | 210 | 1.3 | 0.6 | 1.3 |
7 | LW-108-1.4-15-H | 108 | 4.3 | 1.4 | 264 | 1.6 | 0.84 | 1.9 |
8 | LW-108-2.0-15-H | 108 | 4.3 | 2 | 346 | 2.1 | 1.2 | 2.6 |
9 | LW-108-2.5-15-H | 108 | 4.3 | 2.5 | 413 | 2.5 | 1.5 | 3.3 |
10 | LW-120-2.0-15-H | 120 | 4.7 | 2 | 320 | 2.7 | 1.2 | 2.6 |
11 | LW-120-2.5-15-H | 120 | 4.7 | 2.5 | 369 | 3 | 1.5 | 3.3 |
12 | LW-120-2.8-15-H | 120 | 4.7 | 2.8 | 398 | 3.2 | 1.68 | 3.7 |
13 | LW-120-3.2-15-H | 120 | 4.7 | 3.2 | 437 | 3.5 | 1.92 | 4.2 |
14 | LW-140-4.0-15-H | 140 | 5.5 | 4 | 420 | 4.2 | 2.4 | 5.3 |
15 | LW-140-5.0-15-H | 140 | 5.5 | 5 | 500 | 5 | 3 | 6.6 |
16 | LW-140-6.0-15-H | 140 | 5.5 | 6 | 580 | 5.9 | 3.6 | 8 |
17 | LW-140-8.0-15-H | 140 | 5.5 | 8 | 741 | 7.6 | 4.8 | 10.6 |
18 | LW-159-8.0-15-H | 159 | 6.3 | 8 | 610 | 7.5 | 4.8 | 10.6 |
19 | LW-159-10.0-15-H | 159 | 6.3 | 10 | 730 | 8.8 | 6 | 13.2 |
20 | LW-159-12.0-15-H | 159 | 6.3 | 12 | 860 | 10 | 7.2 | 15.9 |
21 | LW-180-10.0-15-H | 180 | 7.09 | 10 | 605 | 10.1 | 6 | 13.2 |
22 | LW-203-12.0-15-H | 203 | 8 | 12 | 587 | 12.8 | 7.2 | 15.9 |
23 | LW-203-13.4-15-H | 203 | 8 | 13.4 | 640 | 13.8 | 8.04 | 17.7 |
24 | LW-203-20.0-15-H | 203 | 8 | 20 | 873 | 17 | 12 | 26.4 |
25 | LW-232-30.0-15-H | 230 | 9.1 | 30 | 1010 | 30.5 | 18 | 39.6 |
Liaoning Alsafe Technology Co., Ltd, the professional manufacturer of high- pressure Aluminium alloy and composite gas cylinder.
We engaged in design, production, sale and after-sale service on gas cylinders of B1, B3 level, as well as the service on relevant development of new technology.
The average output is 200, 000 pieces anually, including seamless Aluminium alloy gas cylinder, wraped carbon fiber composite cylinder, SCBA breathing air cylinder, medical compressed Oxygen cylinder, beverage CO2 cylinder, paintball game gas cylinder, calibration gas sampling cylinders and etc. All the products are applied extensively in the fields of chemical industry, medical treatment, firefighting, food, electornic, automobile, energy etc.
We have the License of manufacture and CE Certificate, and carry out the ISO9001 Quality
Recognition System.
In the meantime, we can supply the products under GB, DOT, EN, ISO standard according to your order.
Alsafe is keeping to supply all-round safety for our customers.
