Product Specifications
Prod Model: |
JGQ-WHB |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Fuel: |
Waste Heat |
Usage: |
Industrial |
Pressure: |
Pressure |
Drum Placement: |
Horizontal Boiler |
Media: |
Steam and Water |
Installation: |
Packaged Boiler |
Water Circulation: |
Natural Circulation |
Manufacturing Level: |
A |
Function: |
Waste Heat Boiler |
Burning Style: |
Waste Heat Recovery Boiler |
Structure: |
Tube |
Product Description

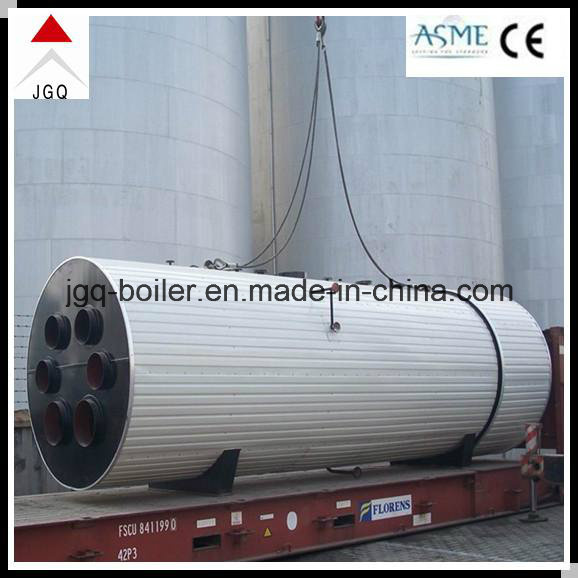

Flexibility Thin Tubesheet Waste Heat Boiler
The WHB system includes waste heat boiler, steam drum, regulating valve and their accessories, the overall designed and supplied.
Technical Characteristics:
The tubesheet using flexibility thin tubesheet,
Hot-end channel using double-insulated material,
The highest air-inlet temperature :1250°,
Maximum using pressure: 12.6MPa,
Cylinder diameter: 1000 ~ 3200mm,
By-product of the saturated steam moisture content ≤ 0.05% (wt),
The whole WHB system is very reliable.
Application areas:
Mainly used in methanation, methanol, ethylene, synthetic ammonia, sulfur recovery unit and other industries.
