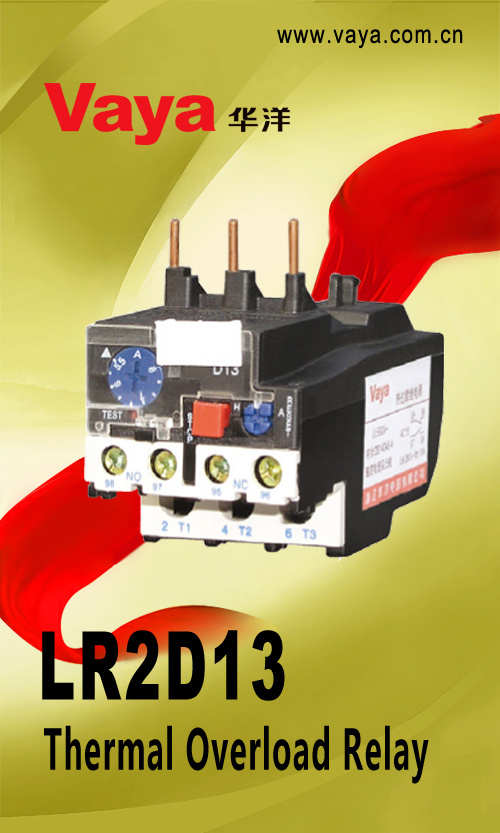

LR2D13 thermal overload relay
Application
LR2D13 thermal overload relay are suitable for overload and phase-failure protection of AC motors with frequency of 50/60Hz, voltage up to 690V, current up to 0.1-150A under 8-hours duty or uninterrupted duty.
Functions provided by these relays, are phase-failure protection, ON/OFF indication, temperature compensation, and manual/automatic reset.
Applicable Standards: National Standard: GB 14048. International Standard: IEC 60947-4-1
The relays can be mounted onto contactors or installed as single units.
Operating Conditions
The altitude couldn t exceed 2000m.
Ambient temperature: -5 ~+55 degree centigrade and the average temperature no more than +35 degree centigrade in 24 hours.
Atmosphere: Comparative humidity no more than 50% at max +40 degree centigrade, and it may be higher at a lower temperature. The lowest average temperature no more than +20 degree centigrade in the wettest month.
The maximum average comparative humidity of this month could not exceed 90%, The change of temperature leading to dew on the product must be considered.
Class of pollution: Class 3.
The slope between installation surface and vertical surface could not exceed plus and minus 5 degree
Keeping away from explosive, corrosive and electric atomy.
Keeping dry.
The product should be used and installed at certain place without any shock, vibration etc.
Features
Three-phase thermal relays with release class 10A.
With differential phase-failure protection.
With continuous current adjusting scale.
With temperature compensation.
With ON/OFF indicator.
With TEST (OFF) button.
With stop button
With Manual/Auto reset button.
With Auxiliary contacts 1 NO+1 NC insulated each other.
Mounting: Plug in connection with contactor or install as a single unit.
|
Technical Data |
|
Item |
|
LR2D13 |
LR2D23 |
|
Rated operational current |
|
25 |
40 |
|
Rated operational voltage |
|
690 |
690 |
|
Phase-failure protection |
|
Yes |
Yes |
|
Manual/Auto reset |
|
Yes |
Yes |
|
Temperature compensation |
|
Yes |
Yes |
|
Releasing indicator |
|
Yes |
Yes |
|
Test button |
|
Yes |
Yes |
|
Stop button |
|
Yes |
Yes |
|
Mounting |
|
Plug-in |
Plug-in |
|
Auxiliary |
|
1NO+1NC |
1NO+1NC |
|
AC-15 220V rated current A |
|
2.73 |
2.73 |
|
AC-15 380V rated current A |
|
1.58 |
1.58 |
|
DC-13 220V rated current A |
|
0.2 |
0.2 |
Conductor
cross
section
(mm2) |
Main circuit |
Solid or stranded conductor |
1~4 |
4~10 |
|
Terminal screw |
M4 |
M4 |
Auxiliary
circuit |
Solid or stranded conductor |
0.5~2.5 |
0.5~2.5 |
|
Terminal screw |
M3.5 |
M3.5 |
|
Protection Characteristics |
|
Item |
NO |
Times the setting current |
|
Release time |
Test condition |
Overload
protection |
1 |
1.05 |
|
> 2h |
Start from Cold status |
|
2 |
1.2 |
|
< 2h |
Start from Hot status right after item no. 1 |
|
3 |
1.5 |
|
< 2m |
Start from Hot status right after item no. 1 |
|
4 |
7.2 |
|
2s< Tp< 10s |
Start from Cold status |
Phase-failure
protection |
|
Any two phases |
Another phase |
|
|
|
5 |
1.0 |
0.9 |
> 2h |
Start from Cold status |
|
6 |
1.15 |
0 |
< 2h |
Start from Hot status right after item no. 1 |
|
Selection and Ordering Date |
|
Number |
Rated current A |
Fuse links A |
|
For contactor |
|
1 |
2 |
|
|
D1301 |
0.1-0.16 |
0.25 |
2 |
CJX2-09
CJX2-12
CJX2-18
CJX2-25 |
|
D130 2 |
0.16-0.25 |
0.5 |
2 |
|
D130 3 |
0.25-0.4 |
1 |
2 |
|
D130 4 |
0.4-0.63 |
1 |
2 |
|
D130 5 |
0.63-1 |
2 |
4 |
|
D130 6 |
1-1.6 |
2 |
4 |
|
D130 7 |
1.6-2.5 |
4 |
6 |
|
D130 8 |
2.5-4 |
6 |
10 |
|
D13 10 |
4-6 |
8 |
16 |
|
D131 2 |
5.5-8 |
12 |
20 |
|
D131 4 |
7-10 |
12 |
20 |
|
D131 6 |
9-13 |
16 |
25 |
|
D13 21 |
12-18 |
20 |
35 |
|
D13 22 |
17-25 |
25 |
50 |
