Product Specifications
| Prod Model: |
LRD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
LRD Application

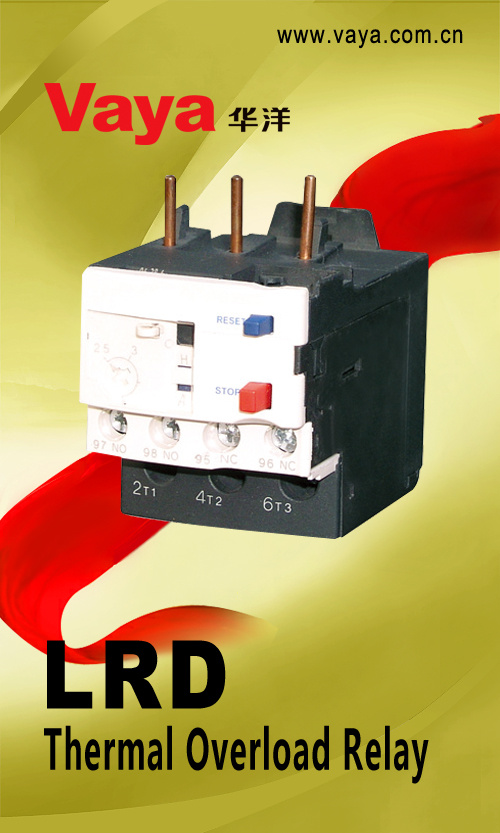

LRD thermal relay is suitable for using in the circuit rated voltage up to 660V, rated current 38A AC 50/ 60Hz, for over-current protection of AC motor. The relay has the differential mechanism and temperature compensation and can plug in CJX2 series AC contactor. The product conforms to IEC60947-4-1 stardand.
Operating Conditions
The altitude couldn t exceed 2000m.
Ambient temperature: -5 ~+55 degree centigrade and the average temperature no more than +35 degree centigrade in 24 hours.
Atmosphere: Comparative humidity no more than 50% at max +40 degree centigrade, and it may be higher at a lower temperature. The lowest average temperature no more than +20 degree centigrade in the wettest month.
The maximum average comparative humidity of this month could not exceed 90%, The change of temperature leading to dew on the product must be considered.
Class of pollution: Class 3.
The slope between installation surface and vertical surface could not exceed plus and minus 5 degree
Keeping away from explosive, corrosive and electric atomy.
Keeping dry.
The product should be used and installed at certain place without any shock, vibration etc.
Features
Three-phase thermal relays with release class 10A.
With differential phase-failure protection.
With continuous current adjusting scale.
With temperature compensation.
With ON/OFF indicator.
With TEST (OFF) button.
With stop button
With Manual/Auto reset button.
With Auxiliary contacts 1 NO+1 NC insulated each other.
Mounting: Plug in connection with contactor or install as a single unit.
|
Technical Data |
|
Item |
|
LRD |
LR2-K |
|
Rated operational current |
|
38 |
12 |
|
Rated operational voltage |
|
690 |
690 |
|
Phase-failure protection |
|
Yes |
Yes |
|
Manual/Auto reset |
|
Yes |
Yes |
|
Temperature compensation |
|
Yes |
Yes |
|
Releasing indicator |
|
Yes |
Yes |
|
Test button |
|
Yes |
Yes |
|
Stop button |
|
Yes |
Yes |
|
Mounting |
|
Plug-in |
Plug-in |
|
Auxiliary |
|
1NO+1NC |
1NO+1NC |
|
AC-15 220V rated current A |
|
2.73 |
2.73 |
|
AC-15 380V rated current A |
|
1.58 |
1.58 |
|
DC-13 220V rated current A |
|
0.2 |
0.2 |
Conductor
cross
section
(mm2) |
Main circuit |
Solid or stranded conductor |
1~4 |
1~4 |
|
Terminal screw |
M4 |
M4 |
Auxiliary
circuit |
Solid or stranded conductor |
0.5~2.5 |
0.5~2.5 |
|
Terminal screw |
M3.5 |
M3.5 |
|
Protection Characteristics |
|
Item |
NO. |
Times the
setting current |
|
Motion time |
Start condition |
Ambient temperature |
Three-phase
balance
motion time |
1 |
1.05 |
|
> 2h |
Cold state |
20 plus and minus 5 degree centigrade |
|
2 |
1.2 |
|
< 2h |
Heat state |
20 plus and minus 5 degree centigrade |
|
3 |
1.5 |
|
< 4min |
Cold state |
20 plus and minus 5 degree centigrade |
|
4 |
7.2 |
10A |
2s< Tp 10s 63 |
Cold state |
20 plus and minus 5 degree centigrade |
|
|
|
10A |
4s< Tp 10s > 63 |
Cold state |
20 plus and minus 5 degree centigrade |
Phase-losing
motion
characteristic |
|
Any two phases |
Another phase |
|
|
|
|
5 |
1.0 |
0.9 |
> 2h |
Cold state |
20 plus and minus 5 degree centigrade |
|
6 |
1.15 |
0 |
< 2h |
Heat state |
20 plus and minus 5 degree centigrade |
|
Selection and Ordering Date |
|
Number |
Rated current A |
For contactor |
|
D01 |
0.1~0.16 |
CJX2N-09~38 |
|
D02 |
0.16~0.25 |
|
D03 |
0.25~0.4 |
|
D04 |
0.4~0.63 |
|
D05 |
0.63~1 |
|
D06 |
1~1.6 |
|
D07 |
1.6~2.5 |
|
D08 |
2.5~4 |
|
D10 |
4~6 |
|
D12 |
5.5~8 |
|
D14 |
7~10 |
|
D16 |
9~13 |
|
D21 |
12~18 |
|
D22 |
16~24 |
|
D23 |
30~38 |
