Wuhan Seifree Technology Co., Ltd. >> Lszh Fiber Optic Patch Cord Cable (Optical Access Network)

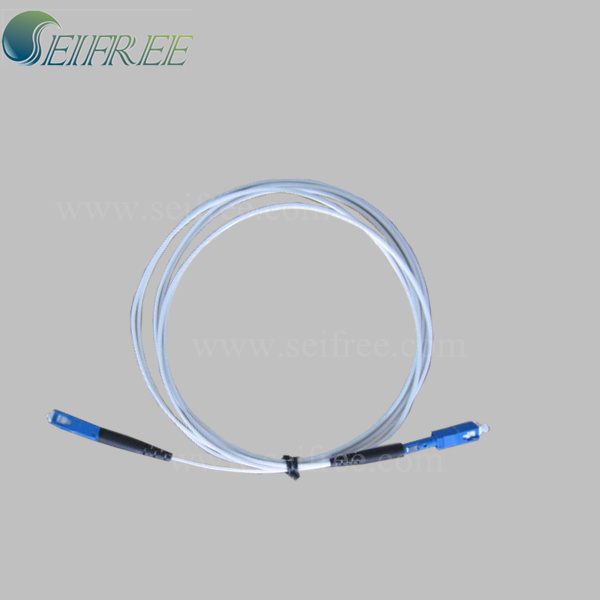

Lszh Fiber Optic Patch Cord Cable (Optical Access Network)

Lszh Fiber Optic Patch Cord Cable (Optical Access Network)
Price: US $ 0.5-1.5/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T
Description
Optical Jumper Wires are important parts of optic network. They have same or different type connector which is installed on the end of fiber optic cable.

Applications                                                                                     Features
Optical Network Wiring                                                                  Low Excess Loss
Test Equipment                                                                              High Return Loss

Ordering Information
SOFC-       -       -       -       -       -       -       -

CableFirst EndSecond EndFiber TypePigtail Dia.(mm)Fan Out LengthJacket TypeLength
1=1FiberFU(A)=FC/UPC(APC)FU(A)=FC/UPC(APC)H=Hi 78009=Φ0.905=50cmE=PE05=50cm
2=2FiberSU(A)=SC/UPC(APC)SU(A)=SC/UPC(APC)F=Flex 10602=Φ2 mm10=100cmC=PVC10=100cm
4=4Fiber

D=G652D3=Φ3mm
H=LSZH

LU(A)=LC/UPC(APC)LU(A)=LC/UPC(APC)A=G657A
20=200cmA=Armored20=200cm
R=RibbonX=CustomizationB=G657BX=Customization


B=Bow
-type



OM1=62.5/125


OM2=50/125


OM3=50/125


OM4=50/125

Specification
ParameterUnitValue
Connector/FC ST SC LC
Ferrule/PCUPCAPC(Step)APC(Conical)
Fiber Type/SMMMSMMMSMMMSMMM
Insertion LossdB<0.25<0.20<0.25<0.20<0.30/<0.30/
RepeatabilityTime>1000
InterchangeabilitydB<0.10
Return LossdB>45>36>50>36>60/>60/


Prod Model: SOFC-1-SU-SU--3-0-F-10
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cable: 1fiber
Connector Type: Sc/Upc
Fiber Type: Flex 1060
Pigtail Dia.(Mm): 3
Jacket Type: Lszh (No Mouse Bite)
Certification: ISO
Customized: Customized
Condition: New
Flame Retardant: High
Wuhan Seifree Technology Co., Ltd is located at the Optical Valley, East Lake National High-tech Development Zone of Wuhan. It specializes in R&D, manufacturing, sales of Optical Passive Components. With the great technologies in optical research and production, Seifree gathers a number of optical talents on fiber communication, which possess the rich experience of R&D and a strong capability of technology innovation.

The product includes thin-film filter (DWDM, CWDM, Triple-play WDM), Fused Bi-Conical Taper (Coupler, WDM) and Waveguide Splitter (PLC Splitter), Micro-optics (Circulator, Isolator) Fiber optical Interconnect (Optical Jumper, Adaptor) and other components and modules of Active (CWDM SFP) and Passive.

We create a good working atmosphere, solidarity and cooperation, and build the corporate culture --Service, Excellence, Innovation, Fidelity, Reciprocity, Economical, and Development. All products are designed, manufactured and delivered to meet the requirements of Telcordia and ISO9001.

We welcome you to consider Seifree to provide the high-quality product and considerate service for meet your demands.
