Lte 4G SIM Card Router for M2m

Product Specifications

Prod Model:	R18A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	105*105*26mm
Temperature:	-30~75oc
Type:	Wireless
Firewall:	Firewall
Application:	Enterprise
Transfer Rate:	100Mbps
Ports:	≤4
Port Structure:	Modular
Network:	4G FDD-Lte

Product Description

3G/4G Integrated Service M2M Routers

The Yinghua R1 series industrial 3G/4G Ethernet router is designed to offer fast connectivity for industrial application. Many existing PLCs and other devices are already able to communicate via Ethernet. The product line supports the following radio access technologies: LTE, HSPA+, HSPA, UMTS, EDGE, EVDO, CDMA2000, GPRS and GSM. By owning automatic connection monitoring and heartbeat detection, make sure the router re-connects automatically once fails.
The router is using Industrial Grade equipment design standards, stable and reliable. Multiple encryption protocols as L2TP, IPSec, and PPTP are owned, making it ideal solution for applications in which high data bandwidth and strong stability is required.

Main Functions
1. Support public and private APN/VPDN network
2. ICMP detection and Heartbeat detection ensure the router to be always on line.
3. Incorporate Virtual Router Redundancy Protocol (VRRP), facilitating 3G/4G WAN backup services to existing fixed line routers, providing both WAN and router redundancy to critical business applications.
4. Offers business grade security and advanced routing features IPSec (3Des and AES), Stateful firewall and L2TP, PPTP as standard.
5. Dedicated hardware and software watchdog are designed to support system running reliable.
6. Low-voltage, over current, over voltage, anti-reverse protection
7. Wide Power Input DC7-36V
8. Support local and remote firmware upgrade
9. Configuration couldn't be easier with native web-server setup.
10. Support parameters backup and import
11. Support DMZ and port forwarding
12. Support DNS and DDNS
13. Standard RS232/485 interface to connect with serial devices.
14. Support WLAN(150Mbps 802.11b/g/n)
15. Support WDS(Wireless Distribution System): The router supports Bridge and Repeater mode.
16. LEDS for status monitoring.

Hardware
1. CPU
RAM: 256Mbit FLASH: 64Mbit
2. Power
Input DC 7-36V(Standard DC12V)
3. Environment
Storage temperature: -40~70º C
Work temperature: -30~60º C
Humidity: < 95%
4. Dimension
Unit size L*W*H: 105*105*26mm
Package size L*W*H: 265*175*100mm
5. Weight
Unit weight: 300g
Package weight: 800g

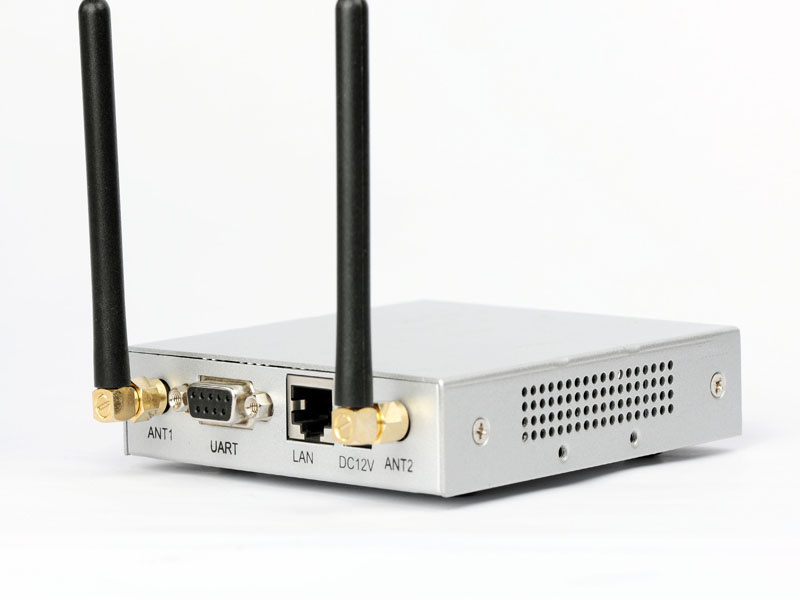

6. Interface
1 SIM card slot
1 LAN 10/100Mb RJ45 port
1 RS232 or RS485 serial port
7. Antenna
ANT1 for Cell, ANT2 for WiFi
8. EMC
Electrostatic discharge immunity: EN6100-4-2, level 2
RFEMS: EN6100-4-3, level 2
Surge: EN6100-4-3, level 2
PFMF: EN6100-4-6, level 2
Shockwave immunity: EN6100-4-8, Horizontal / vertical direction 400A/m(> Level 2)
9. Physical property
Shockproof: IEC60068-2-27
Drop test: IEC60068-2-32
Vibration test: IEC60068-2-6

Software
1. Network protocol
DHCP server, NAT, NAT Traversal, Firewall, Port forwarding, Virtual Router Redundancy Protocol (VRRP), SNMP v1/v2/v3
2. VPN
IPSec
PPTP
L2TP
3. WIFI
Transmitting power: 17dbm
Distance: Cover a radius of 100 meters in open area test
Allow 32 users to access in theory
4. DTU(Serial port data transmission)
TCP&UDP Server/Client
Baud rate: 300~115200bps
Up to 4 data service center communication
5. Firewall
NAT
DMZ
IP address filtering
MAC address filtering
6. Management
Web
Telnet
7. Routing
Static Routing
Port Forwarding
