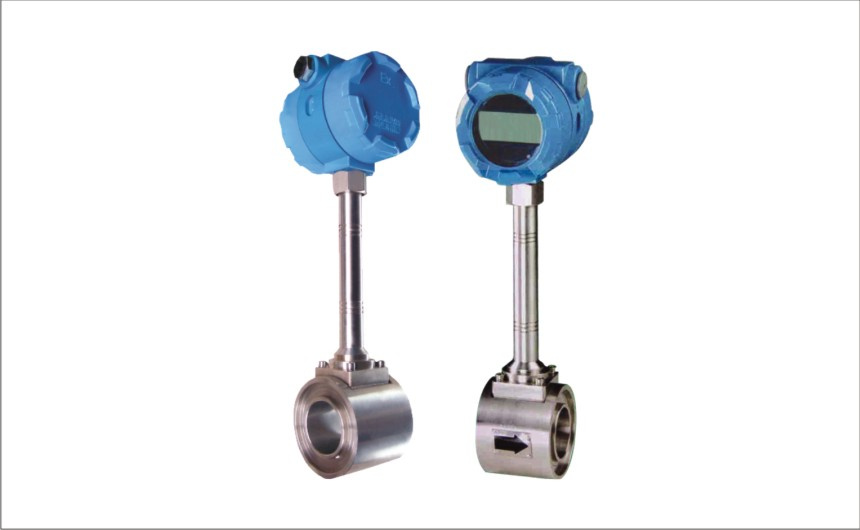

Based on the theory of Carman and Strouhal, the generate of swirl is related to swirl and flowing rate, LUGB vortex flow sensor is used for flowing rate measurement of steam, gas and low viscosity liquid. As picture shown below, triangle shaped swirl generator fitted in the sensor vertically, when the application flow through the sensor, regular opposite direction Carman swirls generated behind the triangle generator; The segregation frequency F is proportional to the flowing speed V. According to the number of swirl detected by the sensor, the flowing speed of the application can be worked out, so that the flowing rate can be worked out according to the bore size of the sensor pipeline
|
Diameter (mm) |
Liquid (Ref. medium: Water m 3 /h) |
Gas (Ref medium: Air at 20º C 101325Pa, m 3 /h) |
|
Standard |
Extended |
|
15 |
0.8-6 |
0.5-8 |
6-40 |
5-50 |
|
20 |
1-8 |
0.5-12 |
8-50 |
6-60 |
|
25 |
1.5-12 |
0.8-16 |
10-80 |
8-120 |
|
40 |
2.5-30 |
2-40 |
25-200 |
20-300 |
|
50 |
3-50 |
2.5-60 |
30-300 |
25-500 |
|
65 |
5-80 |
4-100 |
50-500 |
40-800 |
|
80 |
8-120 |
6-160 |
80-800 |
60-1, 200 |
|
100 |
12-200 |
8-250 |
120-1, 200 |
100-2, 000 |
|
125 |
20-300 |
12-400 |
160-1, 600 |
150-3, 000 |
|
150 |
30-400 |
18-600 |
250-2, 500 |
200-4, 000 |
|
200 |
50-800 |
30-1, 200 |
400-4, 000 |
350-8, 000 |
|
250 |
80-1, 200 |
40-1, 600 |
600-6, 000 |
500-12, 000 |
|
300 |
100-1, 600 |
60-2, 500 |
1, 000-10, 000 |
600-16, 000 |
|
400 |
200-3, 000 |
120-5, 000 |
1, 600-16, 000 |
1, 000-25, 000 |
|
500 |
300-5, 000 |
200-8, 000 |
2, 500-25, 000 |
1, 600-40, 000 |
|
600 |
500-8, 000 |
300-10, 000 |
4, 000-40, 000 |
2, 500-60, 000 |
