Luke LNG Filling Station Public LNG Filling Device
Price: |
US $ 100000/Piece |
Trade Terms: |
FOB,CFR |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union |
Product Specifications
Prod Model: |
Luke LNG fueling station equipments LNG dispenser |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
LNG Dispenser: |
China Best Supplier |
LNG Cryogenic Submerged Pump: |
Italy Original |
LNG Storage Tank: |
China Best Supplier, 60 M³ |
PLC Control: |
Easy to Check, and Save Operation |
Others: |
Too Many, I Can Explain to You by Messenger or Sky |
Type: |
Fuel Dispenser |
Certification: |
ISO9001: 2000 |
Part: |
Pump Skid |
Storage: |
LNG |
Product Description
Company Introduction:
Qingdao Luke Auto Gas Development Co.,Ltd is a Sino-Austria joint venture,founded by Sinopec Qingdao Petrochemical company and Gas auto International of Austria in 1997.
LUKE is one of leading companies in China for CNG/LNG/L-CNG compressors, dispensers, storage tanks and other required accessories, including complete turn-key CNG,LNG,L-CNG refueling stations. We have established good business relations with Sinopec, Petro China, CNOOC and other regional companies.
Luke has won science and technology awards and a special fund from MSTC(Ministry of science and technology, P.R.C.), for our unique hydraulic CNG compressor design. The design of the valve housing with vacuum insulation used in LNG for process pipelines has won National Patent Design Awards.
LUKE has an experience of two decades in the production of compressors and offers her customers the benefits of the latest development in design, engineering, proven manufacturing methods, testing under full load, all from a single source. We are able to offer the high quality equipments, as well as consultant service on design, project development and construction of CNG,LNG,L-CNG and LPG refueling stations.
Up to now, LUKE has supplied over 200 Fueling stations for CNG, LNG, L-CNG and LPG refueling stations all over China Mainland.
Products Introduction:

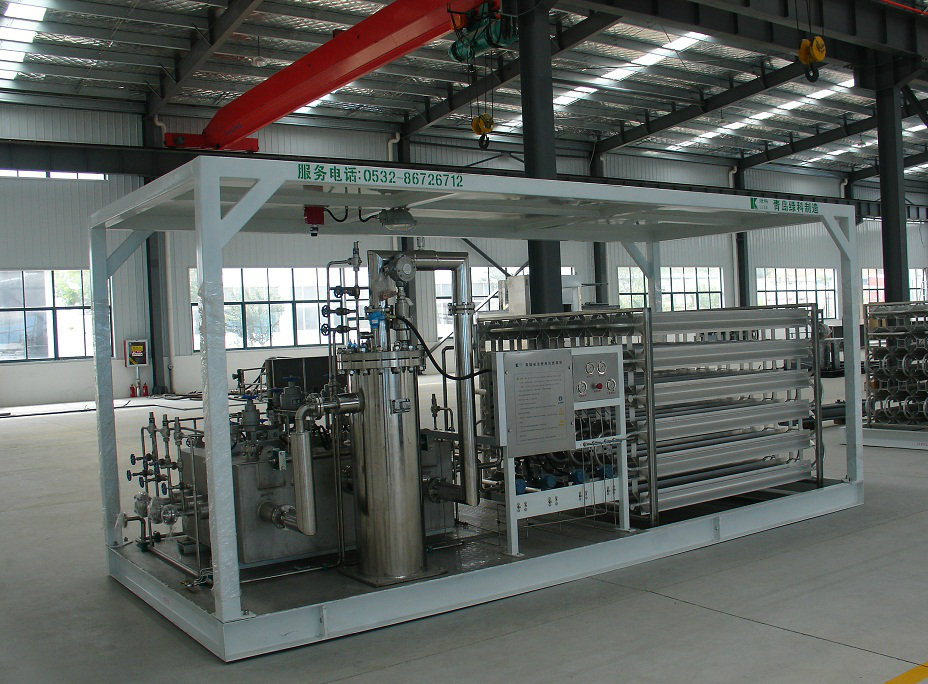

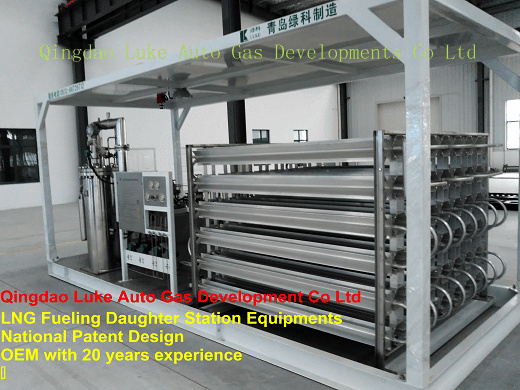

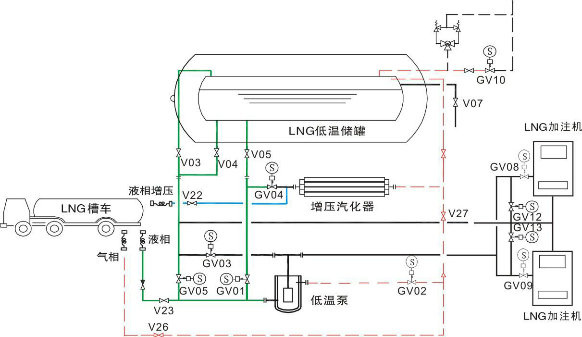

LNG fueling station equipments is applied to commercial public LNG fueling station and created by Luke and won the National patent for invention. The equipments are highly integrated the storage tank, technical device skid, dispenser machine and PLC automatic control system to finish the transferring and fueling of LNG at a high efficiency.
Characters of the equipments:
Highly integrated Simple to be installed
Quick transferring of LNG product
Quick dispenser speed
Well-equipped facilities to ensure safety
High-level automation
Technique Indicator:Iterm Name | Technique Indicator |
LNG dispenser Accuracy | ± 1% |
Energy Consumption | < 0.05 kwh/Nm³ |
Dispenser time for I NGV | 2~ 5 Min |
Dispenser Pre-cooling Time | 3 Min |
Noise within 10 Meter | ≤ 55 dB |
Running Without Accidents | ≥ 5000 h |
Main Function Bottons | Alarm for leaking, accidents fire, workforce protection, emergence stop, |
No. | Iterm Name | Type | No. Equiped |
1 | LNG storage tank | 60 m³ | 1 set |
2 | Pump skid | submerged pump, Vacuum Structure pipeline, Gasfication device | 1 set |
3 | LNG dispenser | 1~ 160 L/ Min | 2 sets |
4 | Integreted Controller |
| 1 set |
5 | Anti-exlosion Electric box |
| 1 set |
6 | On-scene Instrument Panel |
| 1 set |
7 | cryogenics and Normal Valves |
| 1 set, custermized |
8 | Pilelines |
| 1 set, custermized |
9 | Flamable air/ gas Alarm | Output singnal 4 ~ 20 mA | 1 set, custermized |
10 | Compressed air control system for air-operated valve |
| 1 set, |
At present, the LNG fueling station is puzzled by the problems of messed pipelines, complex manufacturing process, producing process under vacuum environment and difficulty in maintainence. Luke has invented a whole series of system to solve this problem, and this system had won China`s national patent invention. This system is applied to the LNG skid to integrate all independent part into a whole structure, and make it vacuumed. It is a big vacuum structure and all the pipelines are integrated into it. The walls of the structure is thickened to strength the cold insulation. And in order to make the operation easier, all the valves are designed on the surface of the structure. The welding work is much saved than before, and the structure stability is much more developed than before too. For More Information, Please Fell free to contact Mr William Yu
Mobile: +86 138 0897 5907
We will supply you our best products and best service.
And you are warmly welcome to visit our factory, nearby Qingdao Free trade zone.
Qingdao Luke Auto Gas Development Co., Ltd is a company established in 1997, located in the beautiful coastal city of Qingdao, as a China-Austria joint venture with the aim to protect our common environment. We are specializing in the manufacturing of Hydraulic piston CNG Compressors with big capacity, Automotive converting, Researching, Manufacturing, Installations and after-sale service for LNG refueling stations and CNG filling stations. At present, the company owns 10000 square meters manufacturing plant.
The company co-operates with foreign enterprises to develop the CNG gas stations and Skid-mounted LNG refueling station technology, suitable to the Chinese market. The products have obtained 14 national patents with advantages of lower costs, short time installation, usage of small area and high automatization.
Since the products have been launched to the market, they obtained warmly response from customers. Many filling stations have been installed all over the country, at present we maintain 10% market share in China.
After many years of development, we have rich experiences in production, installations and after- sale service in the industry. At present, we have build up four centers in China, such as Qingdao, Zhengzhou, Nanjing and Changchun city.
Based on high-quality products and excellent service, the company has good reputations and maintains close business relationship with famous domestic enterprises such as SINOPEC, PETRO China and CNOOC etc.
Our future development plan is to become a comprehensive group, committed to the new energy equipment design and manufacturing, professional installation, gas station management and international trade in natural gas fields.
LET'S WORK TOGETHER TO PROTECT OUR ENVIRONMENT!
