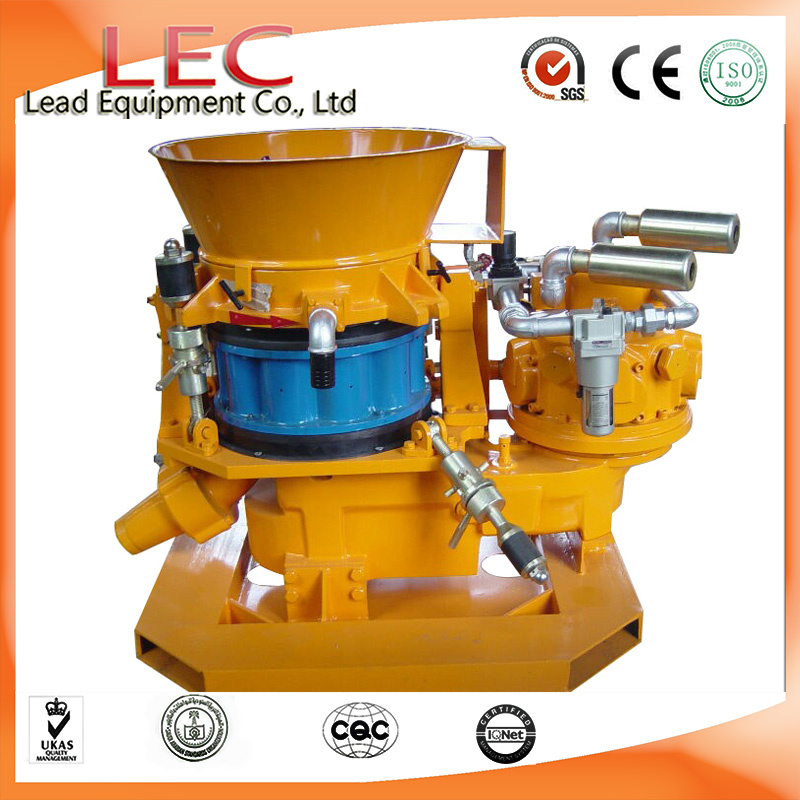

Lz-9A Customized Coal Mine Tunnel Dry Mix Gunite Concrete Spraying Shotcrete Machine
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Money Gram,Western Union |
LZ-9A customized coal mine tunnel dry mix gunite concrete spraying shotcrete machine
1. Description:
LZ-9 is large-sized shotcrete machine for the spraying process.
LZ-9 is available in following versions:
Basic: electric drive can be combined with tyre chassis
Extended (optional): Air motor drive or diesel drive combined with Skid or Rail-wheel
2. Application:
LZ-9 can be used for large-section tunnel building, mine, etc
3. Features:
1.Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
2.Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
3.Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
4.Partifularly used for dry, damp mix and steel(polymer)fiber reinforced shotcrete.
|
Output Capacity |
5-9m 3 /h |
|
Max. Horizontal Conveying Distance |
200m |
|
Suitable Mix Ratio(Cement/Sand) |
≤1:4~5 |
|
Max. Aggregate Size |
Dia.20 mm |
|
Conveying Hose Inner Diameter |
Dia.64 mm |
|
Conveying Pressure |
0.2-0.4MPa(29-58PSI) |
|
Air Consumption for conveying material |
10~12m 3 /min(357-430CFM) |
|
Material Charging Height |
1.1m |
|
Rotor Speed |
6-11r/min |
|
Air Motor |
TMH8A |
|
Air pressure for air motor |
0.5Mpa |
|
Air consumption for air motor |
10 m 3 /min/357CFM |
|
Vibrator |
OR100,oil |
|
Overall Dimension(length×width×height) |
1.65×0.9×1.25m |
|
Net Weight |
900kg |
| Prod Model: |
LZ-9A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Drive Mode: |
Electric Motor Drive, Pneumatic Drive, Diesel Driv |
| Condition: |
New |
| Certification: |
CE |
| Type: |
Shotcrete |
| Machining Process: |
Welded Molding Machine |
| Productivity: |
9 |
| Color: |
Customized |
Zhengzhou Lead Equipment Co., Ltd. Short name LEC, is a manufacturer specialized in R&D, manufacture and sale of shotcrete machine, gunite machine, gunning machine, grout pump, hose pump, concrete pump, mortar pump, foam concrete machine and other machines.
Now we have developed full series of dry-mix shotcrete machine and wet-mix shotcrete machine, output from 1.5m3/hour to 30m3/hour, electric motor, diesel engine, air motor and gasoline engine are available options for customization.
Shotcrete machine is mainly used for dry-mix shotcrete and wet-mix shotcrete. It has some obvious advantage such as advanced technology, perfect structure, stable performance, convenient operation and long service life etc. It is widely employed in mining, tunnel, culvert, subway, hydropower engineering, underground excavation engineering etc.
From years of experience Lead Equipment Co., Ltd. Has developed its own R&D and technician teams, which supports further development and customized service for clients.
We control quality of industrial hose pump throughout the whole process strictly, and certified by ISO9001: 2008, CE and SGS.
LEC has been exported to U. S. A, Canada, Mexico, Sweden, Spain, India, Malaysia, Singapore, Philippines, Indonesia, UAE, Colombia, Bangladesh, Pakistan, Thailand, Ukraine, Nepal, Bahrain, South Africa, Madagascar, and Korea etc., and has sales dealer/distributor in Malaysia, Ukraine, and Nepal. LEC products advantage is high quality with competitive price and excellent after-sale service.
