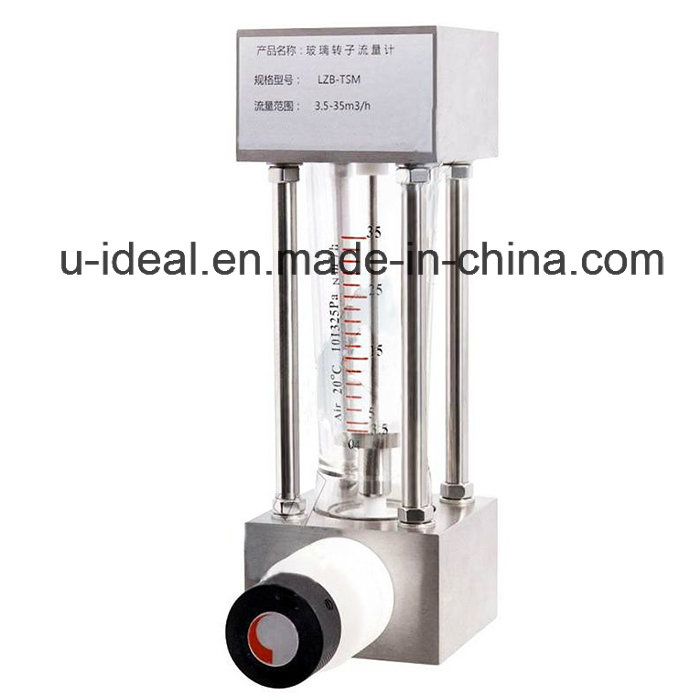

Lzm-Series Plexiglass Flowmeter-Flows Ensor-Rotameter Flow Meter
| Price: |
US $ 100/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
Product Specifications
| Prod Model: |
Lzm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Medium: |
Liquid, Air, Gas |
| Pressure: |
Suitable for Very High Pressure |
| Signal: |
Pulse, 4~20mA, Hart, RS485 |
| LCD: |
Yes/No |
| Ex-Proof: |
Intrinsic Safety/ Explosion-Proof |
| Accuracy: |
?à0.2-0.5% |
| Main Application: |
Corrosive Liquid/Gas |
| Size: |
DN10-50 |
| Sensor: |
Tube/Flange |
| Type: |
Variable Area Flow Meter |
| Measuring Media: |
Liquid |
| Measuring Principle: |
Mechanics |
Product Description
Lzm-Series Plexiglass Flowmeter
can be used for measure volume flow of liquid or air, example air flow measuring, water flow test, diesel oil flow meter.
Capacitance liquid-level sensor/transmitter is the customized sensor meter for precise measuring of the oil level of automobile oil tanks, tankers, locomotives and oil depots, etc.
The whole sensor/transmitter is free of any mobile or elastic part and is featured with the good impact resistance, convenient installation, high reliability, high precision, and stable performance. It can not only be installed on various occasions requiring precise level measuring of gasoline, diesel and hydraulic oil, etc, but also be Application for measuring of various non-conductive liquids.
In addition, it can be used for conductive medium measuring on occasions with quite poor conditions, quite serious electromagnetic interference, or dramatic stirring.
The whole series products are capable of self-calibration. The user can realize the ZERO or RANGE self-calibration with two buttons or two lead lines to meet different requirements on various complex occasions.
series panel meter technical parameters
Glass rotameter-flow meter
| Model | Range | Thread | Accuracy | Size(mm) |
| GPM | LPM | Nm 3 /h | A | B | C | D | E | F | G | H |
| LZM-15ZA |
| 15-150LPH | 0.1-1 0.16-1.2
0.3-3 0.4-4 | ZG1/2"
ZG1/4" |
| 157 | 32 | 150 | 35 | 25 | 60 | 25 | 110 |
| LZM-15Z |
| 10-100LPH
16-160LPH
25-250LPH | 0.01-0.1 0.04-0.4
0.1-1 0.16-1.6
0.24-3 0.25-2.5
0.4-4 0.6-6
0.8-8 1-10
1.6-16 1.8-18
2-20 2.5-25
3-30 4-40 | ZG1/2"
ZG1/4" | ±4% | 175 | 32 | 168 | 35 | 25 | 76 | 25 | 127 |
| 0.03-0.35 | 0.1-1.4 |
| 0.05-0.5 | 0.2-1.8 |
| 0.1-1 | 0.5-4 |
| 0.15-1.5 | 0.6-6 |
| 0.2-2 | 1-7 |
| 0.3-3 | 1-11 |
| 0.5-5 | 2-18 |
| LZM-25Z | 1-10 | 5-35 | 2.5-15 2.5-25
4-40 6-60
10-100 20-100
16-160 25-250
30-300 35-350 | ZG1" | 234 | 45 | 226 | 46 | 33 | 100 | 37 | 160 |
| 1-15 | 5-50 |
| 2-14 | 10-50 |
| 2-20 | 10-70 |
| 5-35 | 10-130 |
| 5-40 | 10-150 |
| 5-45 | 10-170 |
| 0.3-2.1m 3 /h
0.6-3m 3 /h
0.6-4.2m 3 /h |
LZM-Z series panel meter parts material code
| With Valve | Valve | Float | O-ring |
| T- with O- No | Brass Ss | 1.ABS 2.PP √ 3.PVC 4.Brass 5.Brass chromeplate 6.SS | √ 1- Fluorin rubber 2- Butyl |
| Name | floating level transmitter |
| output | 2-wire 2~20mA, switching alarm, LCD, Hart optional |
| Load | 0~500 |
| Level range | H=0.1~30m(special assemble if longer than 6m) |
| Accuracy | A:+/-5mm, B: +/-10mm, C: +/-20mm |
| Fluid temperature | -20~150ºC |
| Electric Power | DC 24V |
|
| Model selection |
| UQK-B | floater level transmitter |
| Accuracy | A | 5mm |
| B | 10mm |
| C | 20mm |
| structure |
| 1 | float ball diameter:45mm. H1=40mm, H2=30mm |
| 2 | 76mm, H1=50mm, H2=40mm |
| 3 | 125mm, H1=80mm, H2=65mm |
| Insallation |
| F | flange |
|
| P | angle plate bracket |
|
| S | screw |
|
| A | adjustable screw is optional |
| Other function |
| P | pressure <0.6MPa |
| E | explosion-proof |
| S | Digital display |
