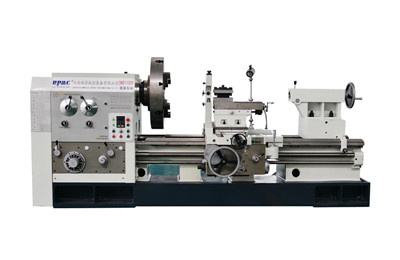

This machine can take a variety of turning work, capable of turning various parts of the outer circle, inner bore, end face, metric thread, inch thread, module thread and pitch thread to formed workpiece; The upper tool post can independently cut short taper, and the long taper can be cut by the combination of the upper tool post with longitudinal feeding; In addition, it can meet the process requirements of frilling, hole sealing and nesting etc., and is suitable for processing various ferrous and non-ferrous metals by powerful cutting with carbide cutting tools;
· The machine has internal features of large power, high speeds, low noise, strong rigidity, high precision and fine maintenance for accuracy etc, external features of beautiful shape and reasonable and compact layout etc, advantages of handles collection, vivid and intuitive brand, flexible and convenient operation, security, reliability and comfortableness etc. In addition, this machine adopts the AC frequency converter produced by famous manufacturers to achieve four gear stepless speed control, and improve the accuracy on the basis of the original lathe, stable and reliable;
· The machine spindle is dragged by the engine of AC frequency converter to fulfill I, II, III, IV four gear stepless speed with variable frequency and speed through sliding gear. It has good torque and power performance, and the slide can quickly move with convenient and flexible operation.
· Size precision of the parts manufactured by this lathe can be up to IT7 level, and the surface roughness can be up to Ra3.2, with features as follows:
Bed adopts precise double ribs in the sidewall, the inner ribs adopt whole bed structure with combination of the box type and oblique reinforcement, so as to guarantee the overall high rigidity;
Centralized operation, and the slide has a rapid travel mechanism to single handle visualized operation;
The bed has high structural and transmission rigidity with stable precision, and can make powerful cutting;
The bed guideway adopts super-audio quenching, with portable and flexible movement, long service life, and will improve the processing precision;
The machine has pleasant appearance, easy to clean and maintain.
Item |
Lathe specifications |
CW61100F |
CW61125F |
Processing range |
Max. tactical diameter of the lathe' s body (mm) |
1000 |
1250 |
|
Max. tactical diameter of work-piece on the sliding plate |
600 |
850 |
|
Max. length (mm) |
3000-10000 |
|
Guide rail of lathe span (mm) |
755 |
Spindle |
Spindle nose code |
A2-15 |
|
Diameter of the spindle |
130 |
|
Spindle inside taper (mm) |
Metric140 1: 20 |
|
Range of spindle speeds (r/min) |
4-330 |
|
Spindle speed series |
Four gears to change speed, no grade to change frequency |
Feeding system |
Longitudinal and transverse feeding number range(mm/r) |
56; 0.05-6.0 |
|
screw pitch |
12mm |
|
Number range of the thread under Metric system |
44; 1-120mm |
|
number range of the thread under British system |
40; 30-½ teeth per inch |
|
Number range of the module thread (mm) |
46; M0.5-M60 |
|
Number range of the diametral pitch |
48; 30-½ pitch |
|
Slide fast moving speed (mm/min) |
3750 |
Knife rest |
Max. travel of cross tool-post (mm) |
860 |
|
Max. travel of upper tool-post (mm) |
300 |
|
Length of section of knife handle (mm) |
40*40 |
Tailstock |
Sleeve diameter of tailstock (mm) |
160 |
|
Sleeve trip of tailstock (mm) |
300 |
|
Cone hole taper tailstock' s sleeve (Morse) |
Morse4# |
|
Main motor power (KW) |
22KW |
Machine appearance |
Length*width*height (mm) |
6200*1900*1800 |
Size, weight |
Net weight (kg) |
13000
|
