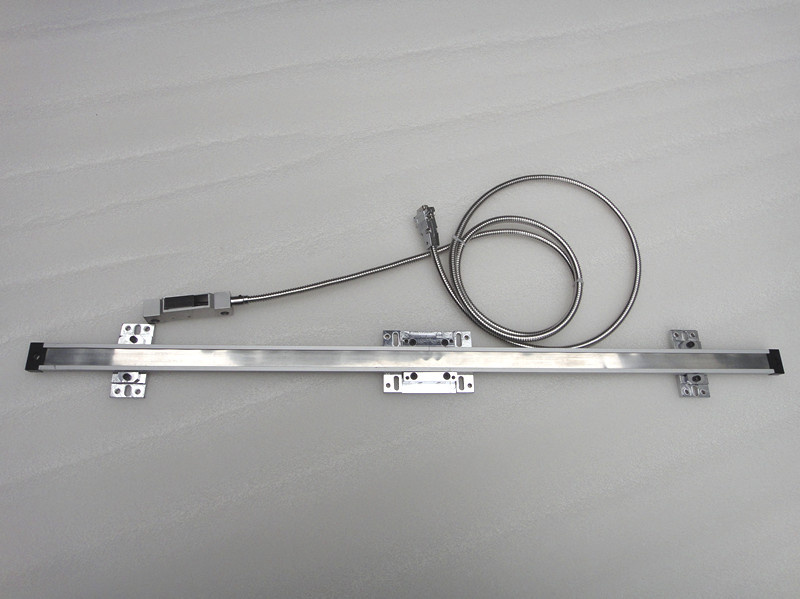

Magnetic scale
1: Resolution: 0.025mm, 0.01mm, 5um, 0.5um
2: Output: Line-driver; Push-pull
3: The grade of waterproof and seal: IP67
Basic Specification:
1: The accuracy: +\-10um, 15um, 30, um
2: The length of the manegetic steel: Ma*32M
3: The magnetic gap: 1+1mm, 2+2mm, 5+5mm
4: Working temperature: -10to 80
Specification of DM series magnetic scale
1: Can't be polluted by the coolant water, coolant liquid or metal dust, so it has the strong capacity of anti-pollution.
2: As the metal shell, so it can't be damaged easily, . Even when doing the machine cleaning, the strong compressed air was sprayed on the magnetic cale, it also can't be damaged.
3: As the non-connecting of magnetic read head and magnetic steel, so the scale is sedom damaged by the friction, then the life of the product can be longer.
4: Simply designed structure, and easy for installation, It uses the high sealing design, and it has the 1.5mm self-adhesive magnetic steel, which the travel length can be 32M
5: The magnetic scale can output grid digital or analog signal, it can output a series of resolution with 1um, 2um, 5um, 10um, 20um and 50um, which can be selected by customers. When the resolution is 1 um, the highest traveling speed can be 4m/s
6: The DM series magnetic scale can be uesd in a very harsh environment, such as: Stone sutting or processing machinery; Metal working machinesry; Knitting machinery; Packaging machinery; Rubber machinery; Automation machinery; Plasma cutting machinery; Laser cutting machinery; Water jet cutting machinery; Semiconductor production machinery, and more.
Chengdu Ditron Optics & Electronics Equipment Ltd. Is a professional company which has a grating digital system of research and development, products and sales etc.
Our group has more than 10 years' experience in the field of grating, digital readout. By using highly advanced technology of domestic and overseas, we had developed a series of products which are reliable, durable, high quality at a reasonable price; At the mean time, we understand that it is very crucial to have effective and timely technical support besides holding high quality and reliable products. So we do our best to be a well experienced and highly excellent technical service team, and work hard to survive our company in this modern scientific era and for competitive with other well developed companies of the world.
The Grating system of Ditron is used by many clients from all over the world. As the stable quality and reasonable prices, we have got many good comments from them. And our products have got the certification of ISO9000, RoHS and CE2000. With the developing of the industry, we know that the standard of every product would be higher and higher, so for the best, our Ditron group would work harder to keep on (pay attention to)paying our attention on developing new technology, improving production, supplying more diversified products and promoting the quality in the future.
We stress contracts and keep promises, we would supply you the high quality, reasonable price and perfect after-sales service system. We sincerely welcome all of you can cooperate with us, and create a bright future.
