Product Specifications
| Prod Model: |
MSR805/MSR905/MSR900/M80 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Colour: |
Black |
| Interface: |
USB |
| Card Slots: |
Single |
| Track: |
Full Three Tracks |
| Funcation: |
Read and Write Cards |
| Certification: |
CE |
Product Description
Card reader factory manufacturing Magnetic card reader/writer
Professional factory manufacturering magnetic card reader/writer, magnetic head, magnetic module, mini123, mx5 RFID, magstrip&RFID combo, msr206 100% compatible, msr805, msr900
Model 1: MSR606/MSR206/MSR505C/MSR805
Compatible with MSR206, MSR505, MSR606, USB interface, support full 3tracks read and write stipe cards, support hi-co&low-co stripe. Easy to use.
Model 2: MSR900, MSR905
Smallest magnetic card reader writer in the world, 150*50*53mm, 0.7kg.
Model 3: mini123/mini123ex/mr66/pmsr1000
Features
Reading/Writing magnetic stripe card complied with ISO formats
Reading/Writing Drivers Licenses
Read/Write High & Low Coercive (300~4000 Oe)
LED provides operational status
Writes any track combinations of 210 and/or 75 bpi data density
Program software for Windows 98/Me/XP /Vista
Manual Swipe to read and/or write card with RS-232 /USB output
Writing&verifying data on single, dual, or triple track in one swipe
+24VDC, 2.5A Max external power adapter attached
Specification
Electrical Power requirements +24VDC +/- 5%
Consumption Typical 350mA Max. 600mA plus for each writing track
Power supply External switching power 24V/2.5A
Communication Standard USB cable
Ripple 50MVP-p or less
Dielectric strength 500 VDC for 1 minute
Performance
Read card Track1 Track2 Track3
Bit per density 210 bpi 75/210bpi 210 bpi
Coercive force Read/write 300-4000 oe Mag. Card
Card thickness 0.76-1.2mm
Read speed STD card Jitter +/-15% AMP. 60%
5-55IPS 5-50IPS 5-50IPS
Write speed 5-30IPS
Write jitter Interval < +/- 10%, Sub-interval < +/- 12%
Error rate Read < 0.5% Write < 0.8%
Head life Min. 1000K swipes for both read/write head
Mechanical
Body material ABS 94V-0
Weight Approx. 0.7kg
Dimension 150.1L x 50W x 53H mm
Swipe Manual, single direction
Environments
Operation -10 to 55oC, 10 to 85% humidity
Storage -30 to 70oC, 10 to 90% humidity
Safety Approval
Rating FCC Class B, CE ClassB, UL, cUL RoHS

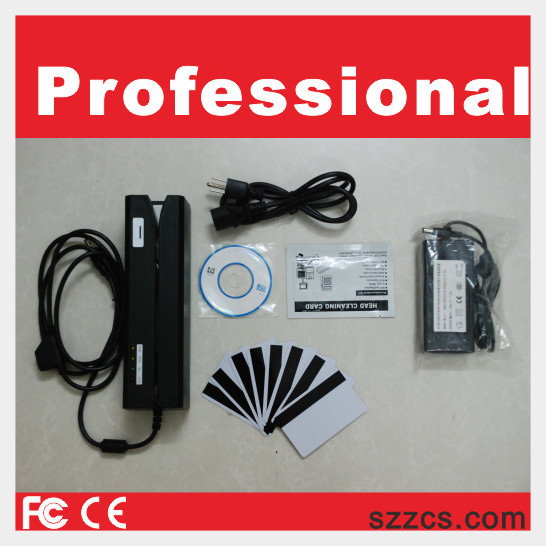

Package including
MSR805
Software CD
Power adaptor
USB cable
1 Clean Card
10 black magnetic Stripe card(4000 OE)
English Manual
PS: Our Software(more easy use and more magnetic type)
This machine is 100% Compatible with MSR206, do
Exact same quality of reading writing for lower price.
No different in quality or use only the price. This
Product uses same software as MSR206
For more detail, please read MSR900 Programmer's Manual. Pdf
Shenzhen ZCS Technology Co., Ltd.Is a professional Import and Export company that produces high quality products in the worldwide automatic identification and data collection (AIDC) and Point Of Sale markets.Our headquarters and manufactory is located in Shenzhen China.
Our products include Magnetic card reader writer, Portable Magnetic Stripe Card Readers, IC card RFID reader writer, Pinpad keyboard, and Various cards such as magnetic card, SLE card, ATMEL card etc.We also welcomes OEM/ODM businesses.With a team of top-notched technical staffs, we are able to prototype your desired specifications and eventually deliver production-quality products in a reasonably short period of time.
We strive to continue to improve our products and services.We offer most of our products with 2 years warranty and free technical support.Your choice is our glory and pride.No best, only better is our promise.Thanks for choosing us.
