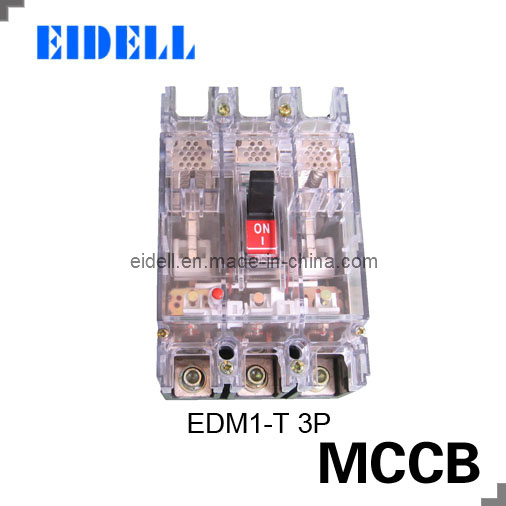

MCCB, Circuit Breaker, Mould Case Circuit Breaker

Name: MCCB, Circuit Breaker, Mould Case Circuit Breaker
Brand: china-manufacturer-directory.com
SKU: 708399355
Availability: InStock
Rating: 5 (36 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	EDM1-T
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Circuit Breaker
Function:	Overload and Short Circuit Protection
Arc-extinguishing Medium:	Air
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Installation:	Fixed
Speed:	Normal Type Circuit Breaker
Structure:	Moulded Case Circuit Breaker

Product Description

EDM1
1. Application
EDM1 series mould case circuit breaker is one of products developed and manufactured by adopting international advanced technology. It is supplied with rated insulating voltage 550 and 800V and used for circuit of AC 50/60Hz, rated operating voltage AC 400V (or below), rated operating current up to 1600A for infrequent changing over and starting of the motors. The products conform to IEC60947-2 standard.

Type	Rated current (A)	Pole- number	Ratedinsui- atingvolt-age (V)	Rated operat- ingvolt- age(V)	Arcing- over distance (mm)	Ultimate short circuit breaking capacity (KA)	Servies short circuit breaking capacity (KA)	Operation perform- ance		Utiliza- tioncat- egory
Type	Rated current (A)	Pole- number	Ratedinsui- atingvolt-age (V)	Rated operat- ingvolt- age(V)	Arcing- over distance (mm)	Ultimate short circuit breaking capacity (KA)	Servies short circuit breaking capacity (KA)	Load	Unload	Utiliza- tioncat- egory
EDM1-63L	(6),10 16,20 25 ,32 40,50 63	3, 4	500V	400V	0	25	18	1500	8500	A
EDM1-63M	(6),10 16,20 25 ,32 40,50 63		500V		0	50	35
EDM1-100L	(10),16 20,25 32,40 50,63 80,100		800V		0(≤50)	35	22
EDM1-100M					0(≤50)	50	35
EDM1-100H					0(≤50)	85	50	1000	7000
EDM1-225L	100,125 160,180 200,225				≤50	35	22
EDM1-225M					≤50	50	35
EDM1-225H					≤50	85	50	1000	4000
EDM1-400L	225,250 315,350 400				≤50	50	35
EDM1-400M	225,250 315,350 400				≤100	65	42
EDM1-630L	400,500 630				≤100	50	35
EDM1-630M					≤100	65	42
EDM1-630H					≤100	100	65
EDM1-800M	630,700 800	3			≤100	75	50
EDM1-800H	630,700 800				≤100	100	65
EDM1-1250M	1000,1250				≤100	100	65
EDM1-1250H	1000,1250				≤100	125	75
EDM1-1600M	1600				≤100	150	80

Yueqing Eidell Electric Technology Co., Ltd., located in Liushi, yueqing city and known as the city of electrical, is professional in developing, manufacturing and marketing of Miniature circuit breaker (MCB), Residual current circuit breaker (RCCB, RCBO), Moulded case circuit breaker (MCCB), Terminal Block, Voltage Stabilizer and other low voltage electric accessories. Our products are exported to more than 10 countries and regions such as South America, Western Europe, the Middle East, Africa, etc.

We take "Honesty, Modesty, Innovation Win-Win as our management philosophy, always take the customer as the center, and spare no effort to provide the customer with safe and reliable electrical products with high quality and reasonable price. We also provide OEM and ODM services. Warmly welcome old and new customers at home and abroad to visit our company and negotiate business.
