Features:
Digital large size LCD display
Test Range | 5% to 40% |
Resolution | 1% |
Accuracy | ±1% |
* High resolution and quick response
* Date hold and can hold value
* Symbol and unit display, read and get conveniently
* Low battery symbol " "
* Power: one 9V battery
* Dimension: 126×70×29mm
* Weight: approx. 150g (including battery)
* Operation temperature: 0ºC-40 (32ºF to 104ºF) 0-70%Rh

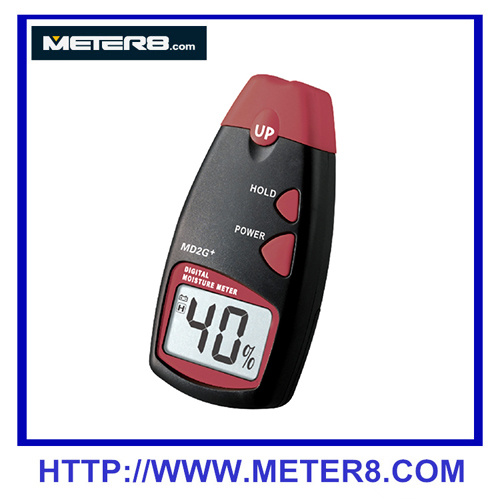

Front panel descriptions:
1. Probe shield
2. Measure probe
3. Power button
4. Date-hold button
5. LCD display
6. Battery cover
Measuring method:
A. Press "POWER" button and turn on power, then display "01 or 02".
B. Take off probe shield and press the pins of two sides with fingers. The instrument is work normally and can measure object if the display value is approx. 30%.
C. Insert the pins into the object approx. 5mm, which display the containing water of the object.
D. Press "HOLD" button then can hold current value, which display "H", press "HOLD" again, which can cancel hold function.
E. After measuring, press "POWER" button, turn of power and cover probe shield, then measuring is over.
