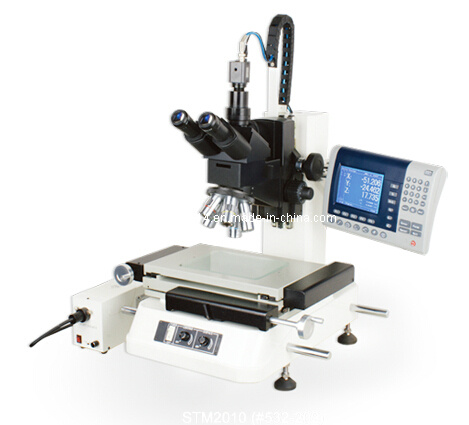

Measuring Digital Microscope with Readout and Software
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
Product Specifications
| Prod Model: |
STM-2010 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| X,Y,Z-Axis Accuracy: |
±(3+L/200)Um |
| Metal Table Size: |
404 X 228mm |
| Glass Table Size: |
260 X 160mm |
| X,Y,Z-Axis Travel: |
200 X 100X 100mm |
| X,Y,Z-Axis Resolution: |
0.0005mm |
| Net Height: |
110kg |
| Dimension(L X W X H): |
530X540X850mm |
| Magnification: |
>1000X |
| Type: |
Video |
| Number Of Cylinder: |
Monocular |
| Mobility: |
Desktop |
| Shape: |
Cylindrical Shaped Lens |
| Principle: |
Optics |
Product Description
Infinity optical system;.Optical magnification:20X-500X; Digital magnification:170X-17000X;Trinocular,Inclinon of 30°, Interpupillary distance 55-75mm;High eye point, Wide field WF 10X/22;Long working distance; Quintuple(Frontward ball bearing inner locating);Coaxial optical fiber lightsource:150W;Plan achromatic objectives:2X/0.055,5X/0.14,10X/0.28,20X/0.42;Multifunction Data procss system DRO DP300 and QM2.0 software;
| Model | STM-2010 | STM-2515 |
| Code# | 532-201 | 532-211 |
| Metal Table Size | 404 x 228mm | 450 x 280mm |
| Glass Table Size | 260 x 160mm | 306 x 196mm |
| X,Y,Z-axis Travel | 200 x 100x 100mm | 250 x 150 x 100mm |
| X,Y,Z-axis Resolution | 0.0005mm |
| X,Y,Z-axis Accuracy | ±(3+L/200)um |
| Microscope System | Eyepiece:High-eye-point and wide-field Eyepiece SWF10/22 |
| Plan Apo Objectives:2x/0.055, 5x/0.14, 10x/0.28, 20x/0.42 |
| Tube lens focal length :200mm |
| Infinitive optical system 20x-200x |
| Trinocular microscope head, Inclined at 30° |
| Interpupillary distance:55-75mm |
| Long working distance;Quintuple Nosepiece |
| Illumination | Contour | Adjustable 256-frade LED illumination |
| Surface | Coaxial Optical Fiber light source |
| Digital Magnification System | Sony1/2''CCD Camera MC 3,1x CCD adapter |
| Digital magnification:170x~1700x |
| Digital Measuring System | Digital readout DP 300 |
| QuickMeasuring 2.0 (QM2.0) |
| HP/Dell PCSystem with 17'' quadrate monitor |
| Net Height | 110Kg |
| Dimension(L x W x H) | 530x540x850mm |
