Product Specifications
| Prod Model: |
JR-160 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Ss 304 |
| Chop The Frozen Meat: |
at -18 |
| Hole Cutter Size: |
3mm,4mm,5mm,6mm,8mm,10mm,12mm,14mm,16mm,18mm |
| Type: |
Meat Grinder |
| Voltage: |
380V |
| Customized: |
Customized |
Product Description

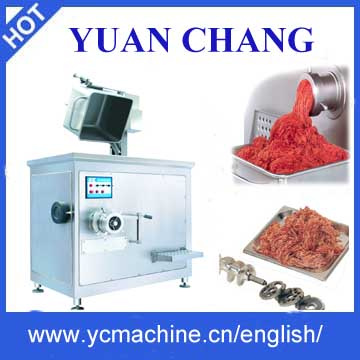

MEAT GRINDER JR120/160/200
YC Mechanism Meat Grinder is specially designed to chop the frozen meat at below1 and -24 centi
degree, can produce different sizes of minced meat and slices by changing the cutter. No obvious
temperature rise can be made on the products, so the minimum bacteria level can be maintained
for your products while the hemoglobin can be properly preserved, greatly improving the shelf life
of your products. It also boasts of easy operation and high productivity and efficiency.
Grinder JR (Single / Double-headed available upon request)
Advantages:
Easy cleaning
Surface & Hopper stainless steel
Ejecting device for meat worm and cutting unit, manually operated
Hardly noticeable temperature rise with the final product
Drive shaft stainless steel, seated in special seals and ball bearings
Worm housing, meat worm and cutting unit stainless steel
Hole cutter size: 3 mm, 4mm, 5mm, 6mm, 8mm, 10mm,12mm,14mm,16mm,18mm,25mm.
| model | Capacity(tons) | Power(kw) | Worm cutter diameter | Chopping cage speed (r/h) | Rated voltage |
| JR-120 | 1~1.5 | 7.5 | 100 mm | 250 | 380V,50HZ |
JR-160
(double worm) | 2 | 30.25 | 120 mm | 27/161 | 380V,50HZ |
| JR-200 | 5 | 45 | 160 mm | 240/120 | 380V,50HZ |
| JR-300 | 6-7 | 55 | 270mm | 66 | 380V,50HZ |
"OUR SUCCESS DEPENDS ON THE SUCCESS OF OUR CUSTOMERS".
Yuanchang Food Mechanism & Technology Co., Ltd., established in 1986, processes a group of excellent technicians and qualified professionals. Distinguished ourselves through our quality and reliability.
We specialized in producing various kind of meat sausage processing machines for sausage playing the Leading Role in the China s meat machinery industry dealing with most Meat Industry Owners for many years. We invented new style pneumatic aluminum-coil dual clipper & Mechanical Greatwall dual clipper which have replaced the old ones, consider originator of the whole machine s movement. Designing different requirements of the machinery will be possible.
Our product includes: Quantitative Vacuum Sausage Stuffer filler, Automatic Sausages Double clipper, Vacuum Bowl, Cutter Chopper, Vacuum Meat Mixer, Fumigating Smoking oven Smokehouse, Rolling & kneading Machine/Vacuum tumbler, New type Brine Saline injector, Frozen-Meat Grinder Mincer, Frozen meat loaf and Slice cutter Machine, Meat Tenderizer Machine, Lifter/Elevator, Hopper Trolley etc.
