Product Specifications
| Prod Model: |
MBB8LE-40 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 2p, 4p: |
16, 20, 25, 32, 40, 50, 63A |
| 0.03, 0.1, 0.3A: |
30mA, 50mA, 100mA, 500mA |
| Type: |
Circuit Breaker |
| Function: |
RCCB |
| Arc-extinguishing Medium: |
Air |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Certification: |
CE |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Structure: |
Residual Current Circuit Breaker |
| Installation: |
DIN Rail |
Product Description

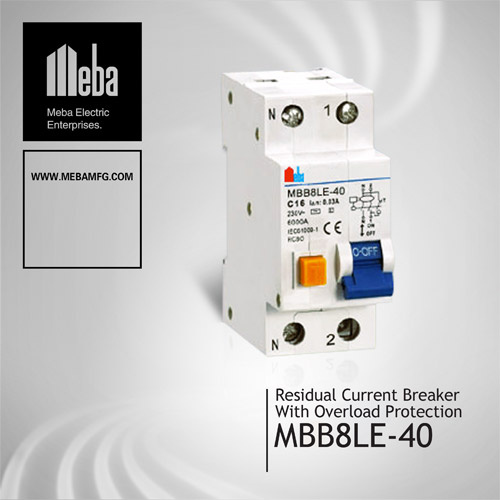

MEBA residual-current-breakers-with-overcurrent-protection(electrical-RCBOs)(MBB8LE--40) are of new design, has following specifications:
Brand Name: Meba
Model Number: MBB8LE-40
Type: Residual Current Breaker With Overload Protection(RCBO)
Poles Number: 2P
Specification
MBB8LE-40 RCBO, which used in the single phase voltage 240V, 50Hz or 60Hz, rated current up to 40A. Function as combination of circuit breaker and residual current device. It is automatically cut off power within 0.1S when the people suffers the fault of electric because of over-current, short circuit, earth fault current. All breaking capacities comply with Standard IEC/EN 61009.
Techincal Data
1. Residual current device with overcurrent protection
2. Combine in residual current device function and MCB over-current protection function
3. Short circuit capacity: 10KA
4. Rated current(A): 6, 16, 20, 25, 32, 40A
5. Rated leakage operating current(mA): 30, 100, 300mA
6. AC and A types, B-C characteristic
7. Modular DIN Rail products 35mm
8. Rated residual current operated making and breaking capacity Im: 500A
9. Rated residual non-operated current: Ino: 0.5In
Yueqing Meba Eelectrics, Products major in Circuit breaker, Single pole RCBO, Metal Distribution Board, Air conditioner Contactor, Temperature controller and Terminal Block. All crafts are strict to according to international standard, as IEC60898, IEC947-2, IEC61008. Another continuous sum-up of clients' suggestion, improvement of technology in daily life, we always strive to reduce the cost, improve the quality, minimizing environment impact, make our customers more competitive.
Your 99.999% satisfaction is our pursuit. Welcome to Meba/Nonrac.
